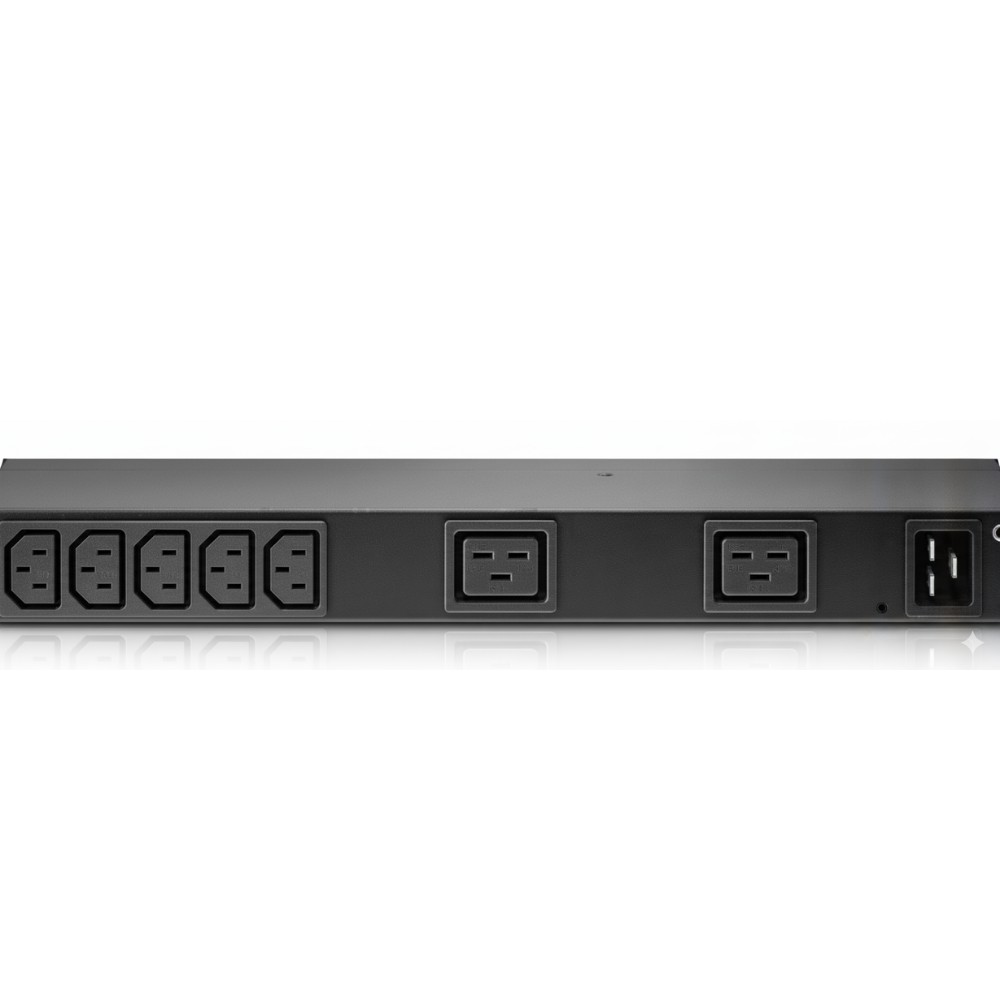

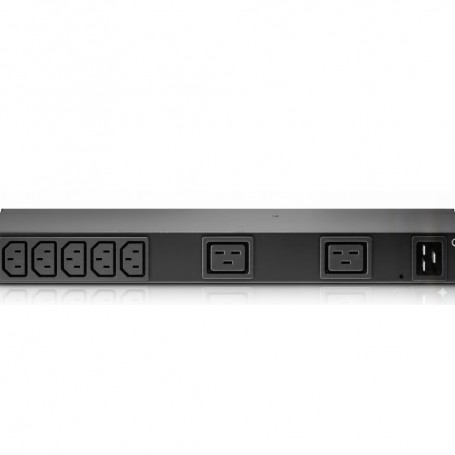

APC AP6120A Basic Rack Power Distribution Unit View larger

APC AP6120A Basic 0U 1U Rackmount PDU with 9 Outlets

New

0U rack PDU 8×C13
×




  • New

Detailed Specifications

APC AP6120A Basic Rack PDU

Overview

The APC AP6120A is a basic power distribution unit designed to supply AC power to rack‑mounted equipment from a single branch circuit. It accepts a universal AC input range and distributes power through eight IEC 60320 C13 outlets for servers, switches, and storage devices. The compact Zero U vertical design installs in the rear rack channel without consuming usable rack space. It is typically deployed in data centers, network closets, and remote IT enclosures where simple outlet distribution is sufficient.

Key Features

  • Eight IEC 60320 C13 output outlets

  • Universal 100–240 V AC input range

  • IEC 60320 C20 inlet connection

  • Zero U vertical rack mount

Technical Specifications

SpecificationDetails
Brand APC
Part Number AP6120A
Product Type Basic Rack Power Distribution Unit
Input Voltage 100–240 V AC
Input Frequency 50/60 Hz
Maximum Input Current 15 A
Input Connector IEC 60320 C20
Output Connections 8 × IEC 60320 C13
Maximum Load Capacity 1800 VA
Mounting Type Vertical Zero U rack
Cord Length 1.8 m
Dimensions (H × W × D) 457 × 44 × 44 mm
Net Weight 0.9 kg
Operating Temperature 0 – 50 °C
