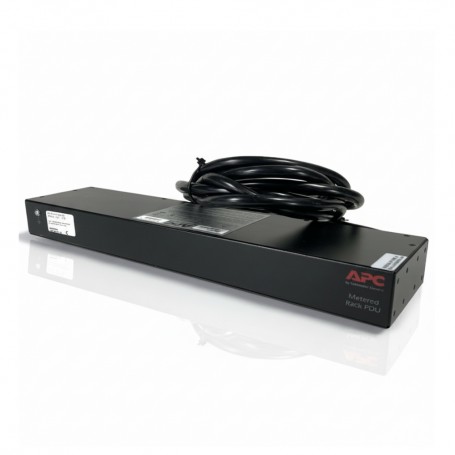

APC AP7801B Metered Rack PDU 1U 20A 120V 8 NEMA 5-20 Outlets

APC AP7801B 2U Switched Rack Power Distribution Unit

Overview

The APC AP7801B is a network‑managed switched power distribution unit intended for controlled power distribution and outlet management in rack environments. IT operations, data center, and infrastructure teams deploy this PDU where remote outlet sequencing, per‑outlet control, and load visibility are required to reboot hung devices, enforce power‑up orders, or isolate faults without physical rack access. As a switched unit, it enables administrators to individually power cycle connected equipment through secure network interfaces.

Designed for 200–208 V AC input, the AP7801B distributes power to a set of switched IEC receptacles sized for rack equipment power cords. Each outlet is individually controllable and sequencible, helping manage inrush current and maintain orderly system boots in dense rack installations. Aggregate current monitoring and configurable alarm thresholds provide load visibility, aiding teams in preventing overloads and coordinating capacity planning across racks.

The unit occupies 2U of horizontal rackmount space in standard 19‑inch cabinets found in enterprise data centers, colocation facilities, network closets, and branch IT rooms. Its 2U footprint accommodates higher outlet counts and broader load capacity compared to 1U units while preserving vertical space for active gear. Switched outlet control assists operational workflows during troubleshooting, maintenance windows, or remote site management.

Management includes Web, SNMP, SSH, and Telnet interfaces, allowing integration into broader infrastructure monitoring and automation systems. Teams can script power events, receive alerts, and monitor real‑time load values without onsite intervention. Local display elements show aggregate load for quick visual reference during rack work.

This PDU is not a UPS and provides no battery backup or outage ride‑through capability. It is unsuitable as the primary power continuity device in installations where uptime through utility interruptions is required; such needs should be met with UPS or combined UPS + PDU architectures.

Key Features

• Switched rack PDU with individual outlet control
• High voltage 200–208 V input distribution
• IEC receptacles sized for rack‑mount equipment
• Remote management via Web, SNMP, SSH/Telnet
• Aggregate load metering with alarms
