Detailed Specifications

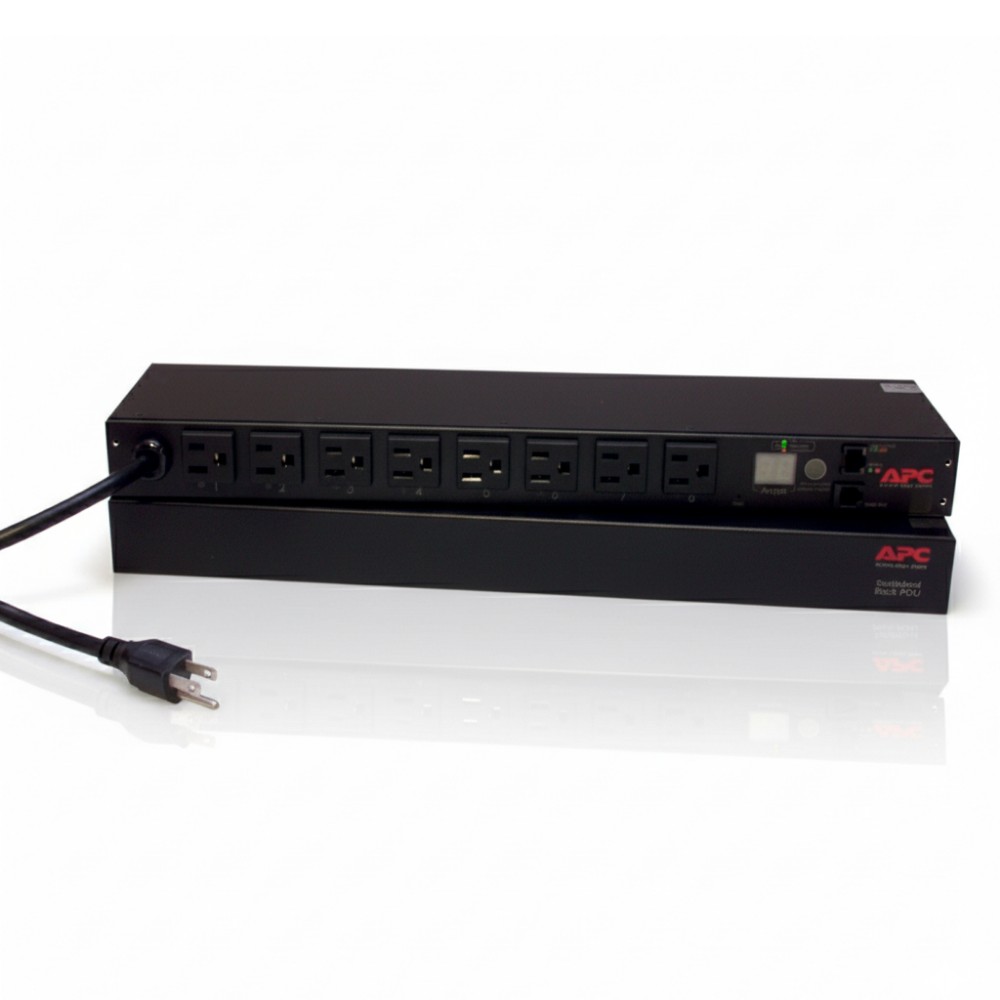

APC AP7900B NetShelter Switched Rack PDU 1U 1 4kW 120V 15A 8 NEMA
Overview
APC AP7900B is a 1U switched rack power distribution unit rated for 15A and 100/120V input, with eight NEMA 5-15R outlets. It is designed for rack-mounted power distribution in data centers, colocation facilities, and remote edge environments.
The PDU provides remote individual outlet switching, allowing connected equipment to be power-cycled remotely. It also provides local current monitoring and network management through supported management platforms.
AP7900B is intended for compatible 120V rack deployments with a maximum 15A input rating. It is not a UPS and does not provide battery backup.
Key Features
- 1U switched PDU for rack-mounted power distribution
- Eight NEMA 5-15R outlets for connected equipment
- 15A input rating with 1440VA load capacity
- Remote outlet switching enables equipment power cycling
- Local current monitoring helps identify overload conditions
Specifications
| Specification | Verified Value |
|---|
| Brand | APC |
| Part Number | AP7900B |
| Product Type | Switched Rack PDU |
| PDU Type | Switched |
| Input Voltage | 100-120 V |
| Output Voltage | 120 V |
| Rated Current | 15 A |
| Load Capacity | 1440 VA |
| Input Plug | NEMA 5-15P |
| Output Outlets | 8 × NEMA 5-15R |
| Form Factor | Rack-mounted |
| Rack Height | 1U |
| Cable Length | 12 ft |
| Network Management | Supported |
| Operating Temperature | 0-45 °C |
