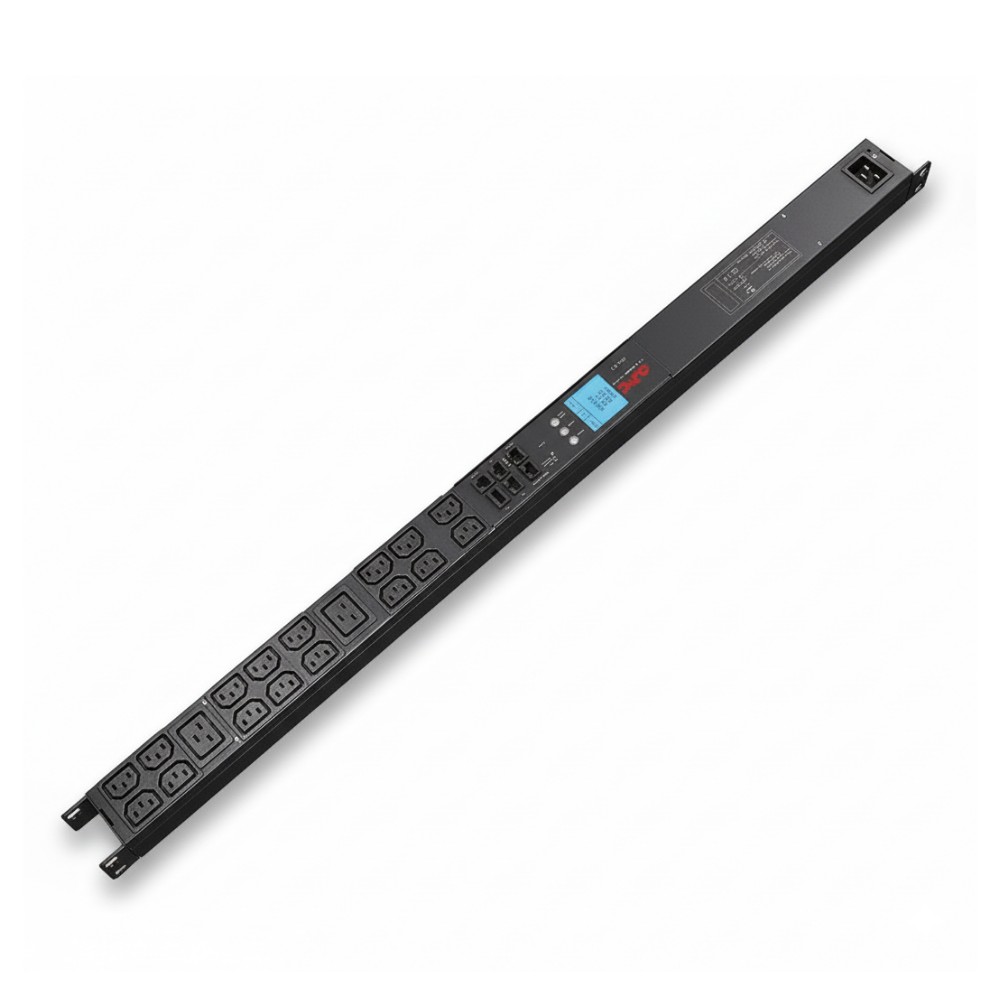

APC AP8830 Metered Rack Power Distribution Unit 120V 20A
Overview
The APC AP8830 is a metered rack power distribution unit (PDU) that delivers controlled AC power distribution with active load monitoring for IT racks and equipment enclosures. It is deployed by data center power engineers, network administrators, and infrastructure teams in environments where visibility into rack power usage and load balancing is required. This unit does not provide UPS backup power or surge suppression; its core function is reliable distribution of utility power with integrated metering feedback.
This model accepts a 100-120 V AC input at 20 A via a NEMA L5-20P connector, supplying up to approximately 1920 VA of load capacity through 24 NEMA 5-20R receptacles. The large number of evenly spaced outlets helps accommodate high-density equipment in standard racks without requiring multiple branch circuits.
The unit's zero-U vertical rackmount design mounts along the side rails of a 19-inch rack, preserving horizontal rack units for active equipment deployment while maximizing outlet availability. Installation includes toolless mounting hardware that secures the PDU without consuming usable equipment space.
Active metering built into the AP8830 provides real-time data on amperage, voltage, real power (kW), and energy usage (kWh), enabling operational teams to balance loads and avoid overload conditions. Local LCDs and user-defined alarm thresholds support on-rack visibility, while remote monitoring and configuration are supported through secure Web, SNMP, and Telnet interfaces.
This PDU is intended for rack power distribution in data centers, server rooms, and network closets. It is not suitable for environments requiring UPS functionality or advanced per-outlet switching control; such needs are met by higher-tier PDUs with switched or managed features.
Key Features
• Metered rack PDU with real-time load and energy metering
• 20 A input at 100-120 V AC with 24 NEMA 5-20R outlets
• Zero-U vertical design conserves rack unit space
• Local metering display and configurable alarms
• Remote monitoring via Web, SNMP, and Telnet
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | AP8830 |
| Product Type | Metered Rack Power Distribution Unit |
| PDU Type | Metered |
| Nominal Input Voltage | 100-120 V AC |
| Input Frequency | 50/60 Hz |
| Maximum Input Current | 20 A |
| Load Capacity | ~1920 VA |
| Input Connector | NEMA L5-20P |
| Output Voltage | 100-120 V AC |
| Output Receptacles | 24 × NEMA 5-20R |
| Power Metering | Real-time (amps, volts, kW, kWh) |
| Remote Management | Web, SNMP, Telnet |
| Local Display | LCD load indicators |
| Form Factor | Zero-U vertical rackmount |
| Cord Length | ~10 ft (3 m) |
| Dimensions (H × W × D) | ~70.5 × 2.2 × 1.7 in |
| Weight | ~12.3 lb |
| Operating Temp. | -5-45 °C |
| Humidity | 5-95 % non-condensing |
| Certifications | UL 60950-1, cUL, FCC, ICES-003 |
