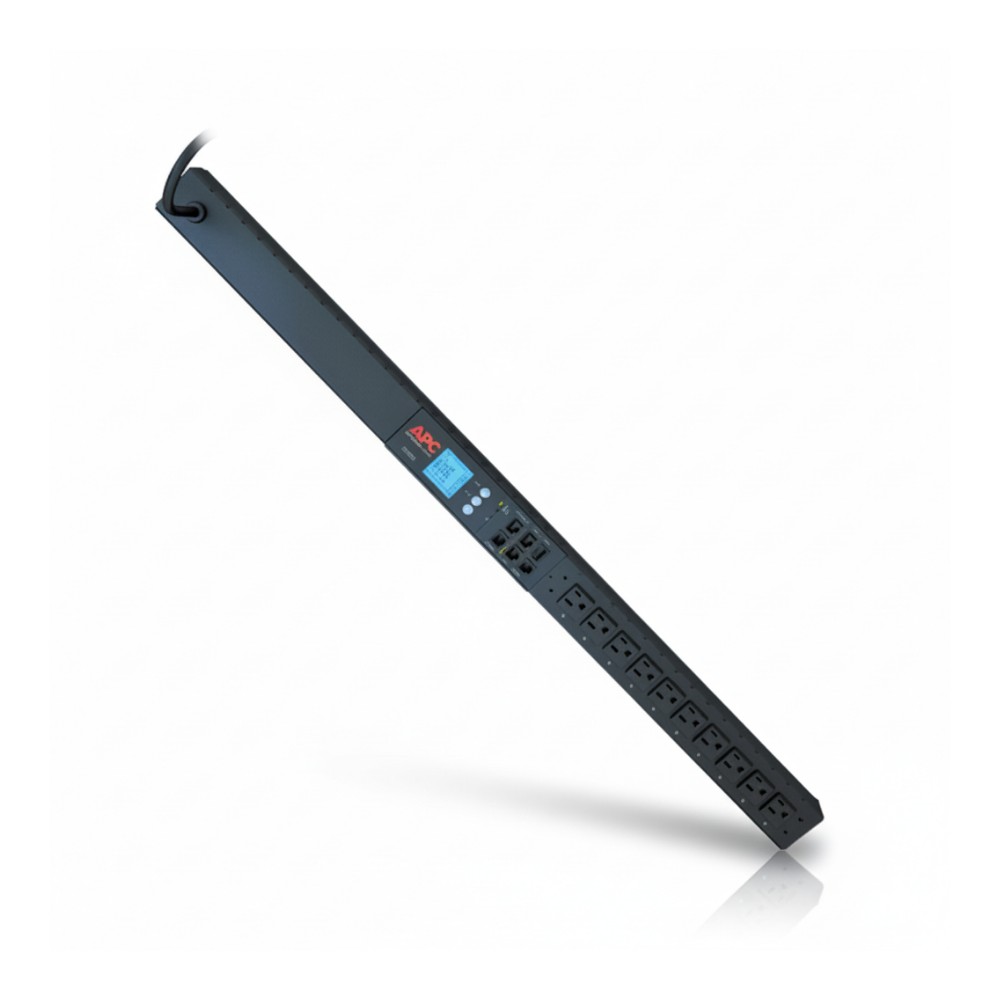

APC AP8831 Basic Rack Power Distribution Unit 208V
Overview
The APC AP8831 is a basic rack power distribution unit (PDU) engineered to distribute 208 V AC utility power to multiple devices within standard IT racks. Infrastructure technicians, data center engineers, and facilities teams deploy this unit when straightforward outlet provisioning is required without active power metering, switching, or UPS backup. Its role is to reliably multiply a single upstream 208 V feed to several outlets for servers, storage systems, switches, and other rack equipment.
This model accepts a 208 V AC input, typically from a branch circuit protected by facility breakers, and delivers load power through a set of output receptacles configured for high voltage IT equipment. The unit is designed for zero-U vertical rackmount installation, saving usable horizontal rack space for active equipment in 19-inch cabinets, telecom enclosures, or edge computing racks.
The PDU includes an integrated power cord and plug assembly compatible with typical data center receptacles, allowing flexible placement within racks where mounting brackets secure the unit along the frame or rear posts. The basic design focuses on reliable outlet distribution without added control or network management capabilities.
The AP8831 is optimized for backend power distribution where metering and remote control are not mandated and where simple, dependable outlet availability is the primary requirement. It is not intended to provide surge suppression, UPS backup, or networked power measurement.
Key Features
• Basic rack PDU distributing 208 V AC to multiple outlets
• Zero-U vertical rackmount preserves horizontal rack space
• Designed for high-voltage server and network equipment
• Reliable utility power distribution without metering
• Compatible with standard 19-inch rack enclosures
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | AP8831 |
| Product Type | Basic Rack Power Distribution Unit |
| PDU Type | Basic |
| Nominal Input Voltage | 208 V AC |
| Input Frequency | 50/60 Hz |
| Maximum Input Current | 15 A |
| Load Capacity | ~3.12 kVA |
| Input Connector | NEMA L6-20P |
| Output Voltage | 208 V AC |
| Output Receptacles | 12 × IEC 60320 C13 |
| Form Factor | Zero-U vertical rackmount |
| Cord Length | ~10 ft (3 m) |
| Dimensions (H × W × D) | ~72 × 2.2 × 1.8 in |
| Weight | ~7.2 lb |
| Operating Temp. | 0-45 °C |
| Operating Humidity | 5-95 % non-condensing |
| Certifications | UL, cUL, CSA |
