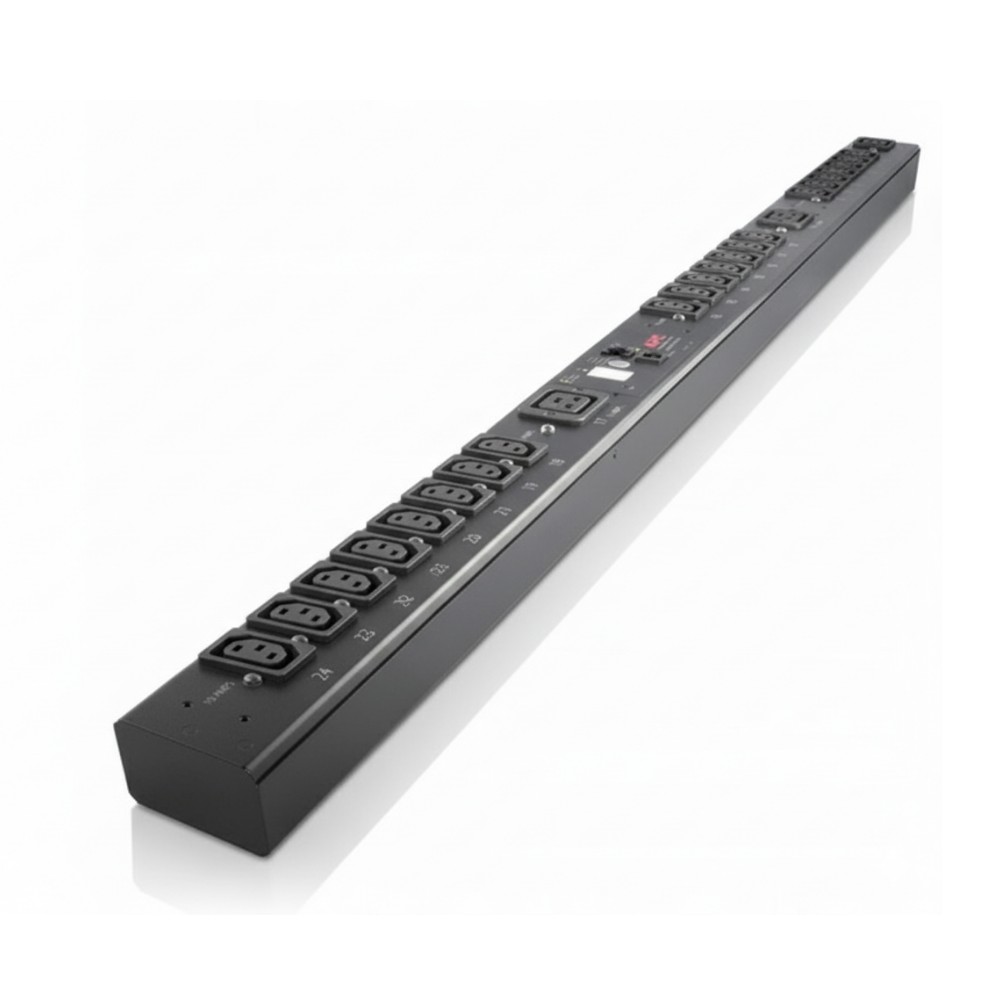

APC AP8930 Switched Rack Power Distribution Unit 120V 20A
Overview
The APC AP8930 is a switched rack power distribution unit (PDU) designed to distribute 120 V AC power to multiple rack-mounted devices while providing remote outlet control and metering capabilities. It is deployed by data center engineers, rack infrastructure teams, and network administrators where controlled power cycling, rebooting, and sequenced power-up/power-down of equipment are required without physical access. This unit does not provide UPS-style battery backup; its function is focused on power distribution and remote management within rack environments.
This PDU supports a 100-120 V AC input at up to 20 A, delivering approximately 1920 VA total load capacity. Power is distributed via 24 NEMA 5-20R output receptacles, allowing connection of high-density servers, networking switches, storage devices, and other IT equipment. The unit accepts input via a NEMA L5-20P plug mounted on a ~9.84 ft (3 m) cord for flexible rack placement.
The AP8930 installs in a zero-U vertical rackmount configuration, conserving horizontal rack space and enabling placement along the side of standard 19-inch rack enclosures. Its vertical form factor facilitates high outlet counts in space-constrained rack deployments.
Remote power management and monitoring interfaces include Web, SNMP, and Telnet, enabling administrators to access real-time power metrics, control individual outlets, and configure power sequencing for connected loads. These capabilities support lights-out operations and proactive capacity planning.
Typical use cases include enterprise network closets, high-density data center racks, and colocation facilities where remote reboot capabilities and outlet-level control reduce operational overhead and improve uptime.
Key Features
• Switched rack PDU with remote outlet control via Web/SNMP
• Zero-U vertical rackmount conserves rack unit space
• 24 NEMA 5-20R output receptacles for distributed load
• Supports 20 A input at 120 V (~1920 VA capacity)
• Power sequencing and metering for remote management
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | AP8930 |
| Product Type | Switched Rack Power Distribution Unit |
| PDU Type | Switched |
| Nominal Input Voltage | 100-120 V AC |
| Input Frequency | 50/60 Hz |
| Maximum Input Current | 20 A |
| Load Capacity | ~1920 VA |
| Input Connector | NEMA L5-20P |
| Output Voltage | 120 V AC |
| Output Receptacles | 24 × NEMA 5-20R |
| Remote Management | Web, SNMP, Telnet |
| Power Sequencing | Supported |
| Form Factor | 0U vertical rackmount |
| Cord Length | ~9.84 ft (3 m) |
| Dimensions (H × W × D) | ~70.5 × 2.2 × 1.8 in |
| Weight | ~14.4 lb |
| Operating Temp. | -5-60 °C |
| Humidity | 5-95 % non-condensing |
| Certifications | UL, cUL, RoHS |
