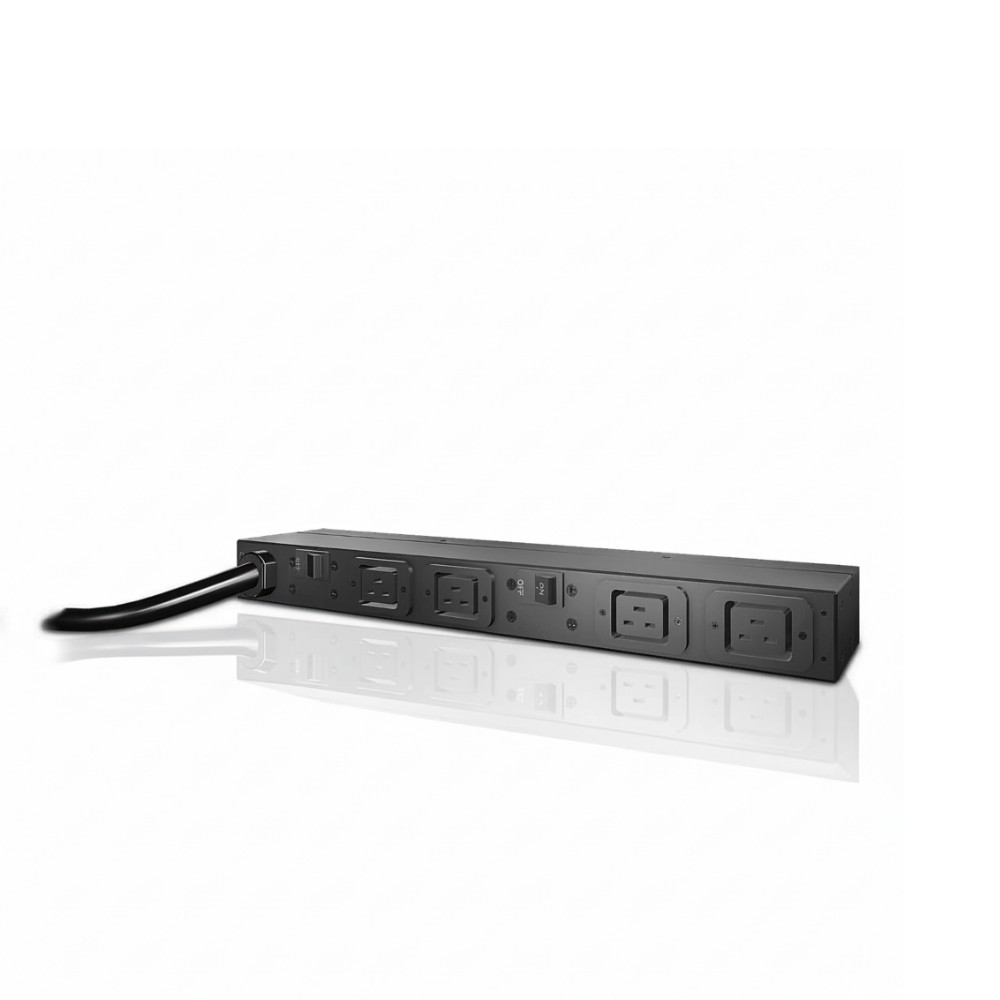

APC AP9570 Rack Basic 1U 30A 208V power distribution unit View larger

APC AP9570 Rack Basic 1U 30A 208V power distribution unit

New

1U 30 A rack PDU 4×C19
×




  • New

Detailed Specifications

APC Basic Rack 6.24kVA PDU Basic Rack PDU

Overview

The APC AP9570 is a basic rack power distribution unit that delivers single‑phase AC power from a 30 A feed to multiple high‑current devices in a standard equipment rack. It features four IEC 60320 C19 receptacles that support heavy‑load IT gear such as servers, storage arrays, and switches. The 1U horizontal form factor mounts in standard 19″ rack spaces and includes a 10 ft input cord with a NEMA L6‑30P plug for straightforward installation. It’s used in data centers, telecom closets, and branch racks where unmanaged, reliable power distribution is required.

Key Features

  • Four IEC 60320 C19 output receptacles

  • 30 A single‑phase 208 V input rating

  • 1 U horizontal rack‑mount design

  • 10 ft input cord with NEMA L6‑30P plug

Technical Specifications

SpecificationDetails
Brand APC
Part Number AP9570
Product Type Basic Rack Power Distribution Unit
Input Voltage 200 – 230 V AC
Maximum Input Current 30 A
Input Frequency 50/60 Hz
Input Connection NEMA L6‑30P
Output Connections 4 × IEC 60320 C19
Maximum Load Capacity 6240 VA
Mounting Type Horizontal, 1 U
Power Cord Length 10 ft (≈ 3.05 m)
Height 1.73 in
Width 17.6 in
Depth 2.52 in
Net Weight 6.02 lb
