Detailed Specifications

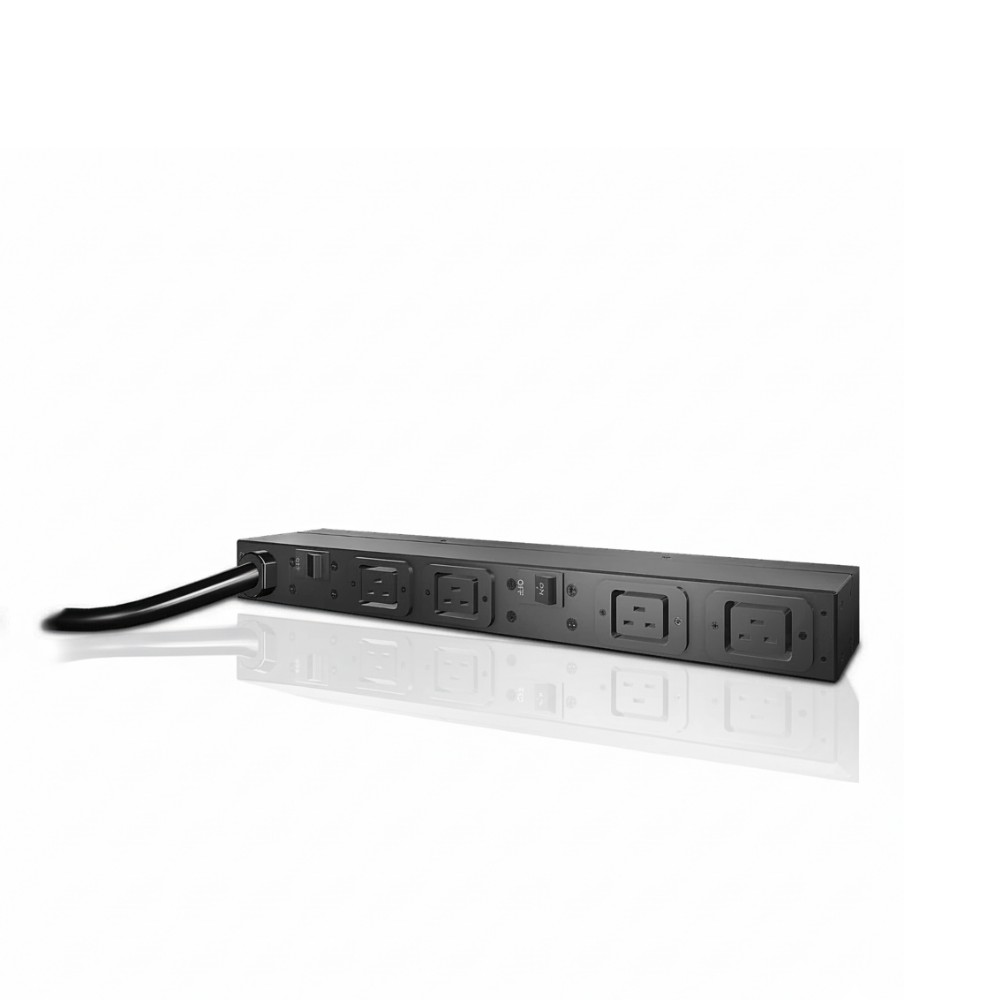

APC AP9570 - 1U 30A 208V Basic Rack PDU
Overview :
The APC AP9570 is a basic rack-mounted power distribution unit (PDU) designed for reliable delivery of 208V AC power to rack-based IT equipment. It distributes power from a single high-capacity input to multiple high-current outlets, supporting enterprise-grade hardware.
With a 30A input and up to ~4.99kVA load capacity, this unit is equipped with four IEC C19 outlets, making it suitable for high-power servers, blade systems, and networking equipment. It includes a NEMA L6-30P input plug and integrated overload protection via resettable circuit breakers.
The 1U horizontal form factor fits standard 19-inch racks, making it ideal for data centers, colocation environments, and high-density enterprise deployments where 208V distribution is standard.
This is a basic PDU (no monitoring or switching), so it is not suitable for environments requiring remote management, outlet-level control, or power metering.
Key Features :
30A 208V input supports high-density IT loads
Four C19 outlets for high-power equipment
1U rack-mount design for standard enclosures
Resettable breaker enables fast overload recovery
Single input feed simplifies rack power design
Technical Specifications :
| Specification | Details |
|---|
| Brand | APC |
| Part Number | AP9570 |
| Product Type | Basic Rack PDU |
| Input Voltage | 200-240V AC |
| Output Voltage | 208V AC |
| Load Capacity | 4992 VA |
| Maximum Input Current | 30A |
| Maximum Line Current | 30A |
| Input Connector | NEMA L6-30P |
| Output Receptacles | 4 × IEC C19 |
| Mounting Type | 1U horizontal rack-mount |
| Cord Length | 10 ft (3.1 m) |
| Overload Protection | Resettable circuit breaker |
| Operating Temperature | 0°C to 45°C |
| Compliance | UL, cUL listed |
