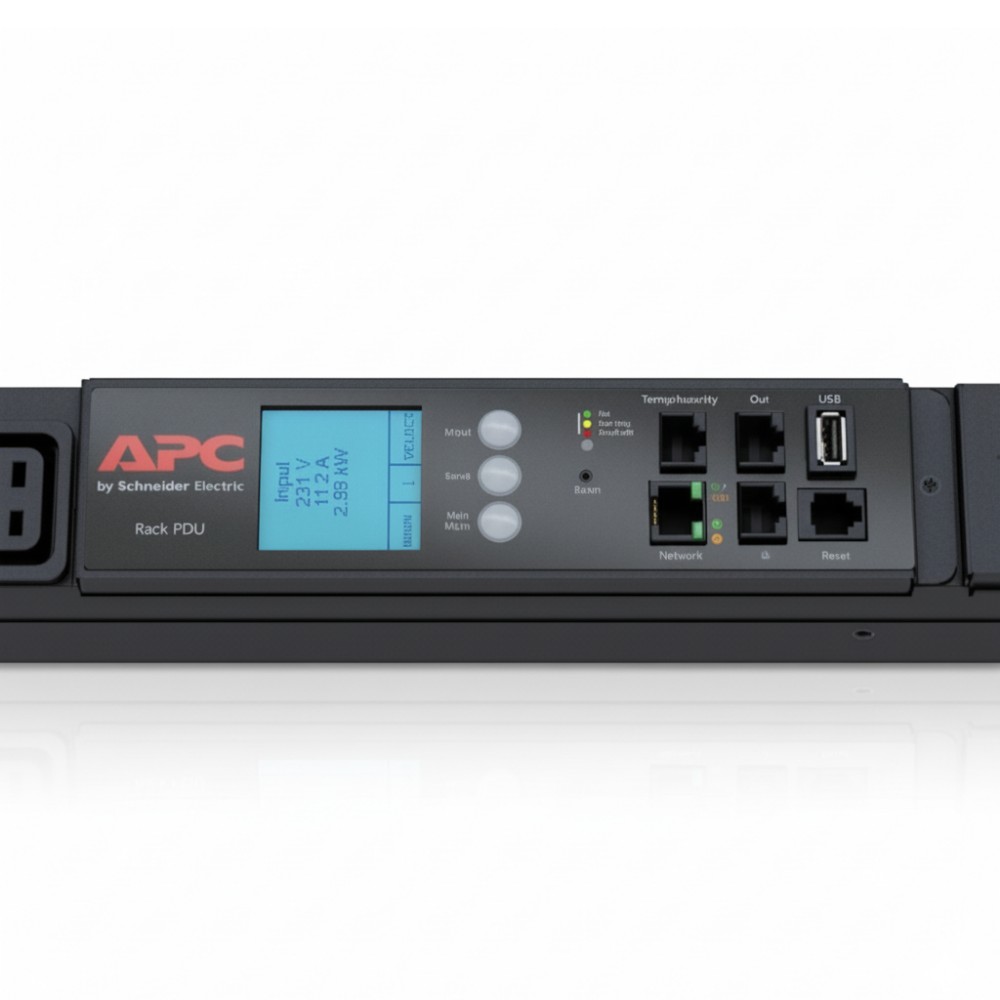

APC AP8867 Metered Rack Power Distribution Unit 208V 60A
Overview
The APC AP8867 is a metered rack power distribution unit (PDU) designed for high-density AC power distribution and load monitoring in modern rack environments. It is deployed by data center power engineers and infrastructure administrators where critical equipment draws significant three-phase power and operators need visibility into consumption, circuit loading, and capacity planning. The unit does not provide UPS or backup power; its purpose is controlled power distribution with integrated metering of electrical parameters.
This PDU supports a 208 V three-phase AC input at up to 60 A, delivering roughly 17.2 kW capacity to rack equipment. Power is distributed through 30 IEC 60320 C13 output receptacles, suitable for servers, storage devices, network switches, and other IT hardware requiring 208 V power feeds. Real-time metering enables operators to monitor current, voltage, real power (kW), and energy usage (kWh), improving rack power planning and avoiding overloads.
The zero-U vertical design mounts along rack posts or channels, preserving horizontal rack space for active equipment while delivering high outlet density. The unit includes a 1.83 m (6 ft) IEC 60309 60 A 3P+PE input power cord and integrates with network management systems for remote visibility and control.
Metering and monitoring interfaces typically include Web, SNMP, and command-line access, enabling integration with centralized infrastructure management platforms. Visual indicators and user-configurable alarm thresholds help operations teams track load levels and react proactively to potential overload conditions.
This PDU is not designed for single-phase 120 V environments, or to act as a power conditioner or surge protector. It must be installed where appropriate three-phase 208 V power is available and used alongside rack equipment requiring that voltage specification.
Key Features
• 208 V three-phase zero-U metered rack PDU with load metering
• 60 A IEC 60309 3P+PE power input with 6 ft cord
• Thirty (30) IEC 60320 C13 outlets for distributed loads
• Real-time metering (amps, volts, kW, kWh) and alarms
• SNMP/Web/Telnet interfaces for remote power visibility
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | AP8867 |
| Product Type | Metered Rack Power Distribution Unit |
| PDU Type | Metered |
| Nominal Input Voltage | 208 V AC three-phase |
| Input Frequency | 50/60 Hz |
| Input Connector | IEC 60309 60 A 3P+PE |
| Maximum Input Current | 60 A |
| Output Voltage | 208 V AC |
| Output Receptacles | 30 × IEC 60320 C13 |
| Load Capacity | ~17.2 kW |
| Power Monitoring | Real-time metering (amps, volts, kW, kWh) |
| Management Interfaces | SNMP, Web, Telnet |
| Form Factor | 0U vertical rackmount |
| Cord Length | ~1.83 m (6 ft) |
| Dimensions (H × W × D) | ~72 × 2.2 × 2.0 in |
| Weight | ~22.5 lb |
| Operating Temp. | 0-60 °C |
| Humidity | 5-95 % non-condensing |
| Certifications | UL, cUL, EN, RoHS |
