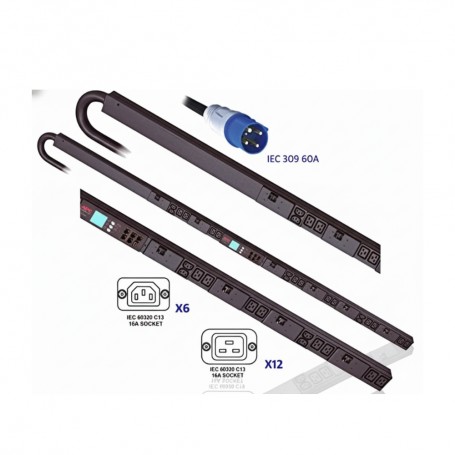

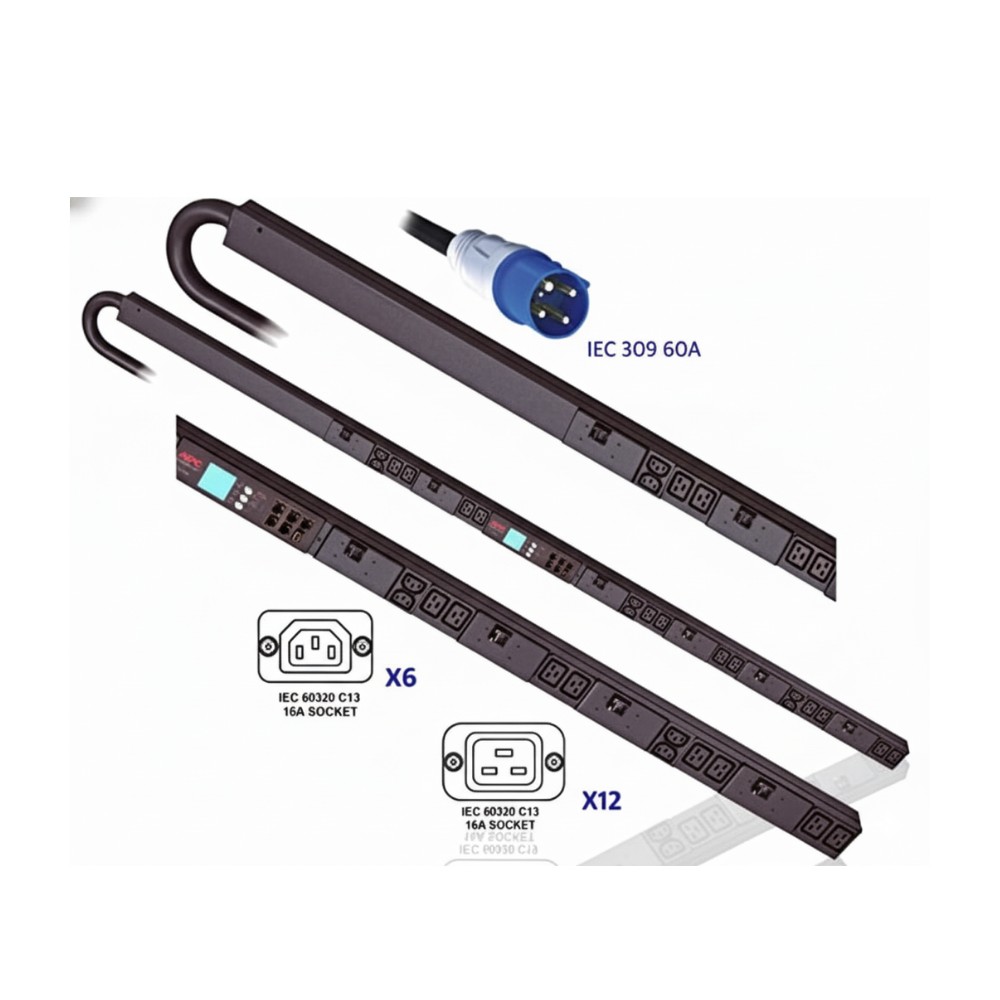

APC AP8866 Metered Rack Power Distribution Unit 208V 60A
Overview
The APC AP8866 is a metered rack power distribution unit engineered to distribute three-phase 208 V AC power to a high density array of rack equipment while providing real-time load metering and monitoring. This vertical, zero-U PDU is intended for use by data center power engineers and infrastructure administrators to manage and balance rack electrical load, improve energy efficiency, and prevent overload conditions on critical IT distribution circuits. The unit does not provide UPS backup power; its purpose is controlled power distribution and active metering in network closets, server rooms, and data halls.
This PDU supports a 208 V three-phase input via IEC 60309 60 A 3P+PE connector with a maximum continuous capacity of approximately 17.2 kW (48 A per phase). Distribution is provided through 18 total outlets × 6 × IEC 60320 C13 and 12 × IEC 60320 C19 × allowing versatile connection of servers, switches, storage appliances, and other IT devices requiring 208 V power. The vertical zero-U design mounts along rack posts or frames, preserving horizontal rack space for active equipment.
Active metering and monitoring capabilities enable administrators to view amps, volts, real power (kW), and energy (kWh) consumption locally or remotely using Web, SNMP, or Telnet interfaces. User-defined alarm thresholds help alert operations teams to potential overload conditions before tripped circuits or unplanned downtime occur.
Installation is typical in medium to large data center racks, telecom infrastructure, and edge cabinets where multiple devices draw significant three-phase power and centralized visibility into load distribution is needed for capacity planning and energy management. The design also supports integration with centralized infrastructure management platforms for holistic monitoring of power distribution across facilities.
This PDU is not intended for single-phase 120 V environments or as a surge protection device; it must be installed where appropriate 208 V three-phase AC power is available and where active metering adds operational value. It is likewise unsuitable as a UPS replacement × it does not provide battery backup.
Key Features
• 208 V three-phase zero-U metered rack PDU
• 17.2 kW total load capacity at 60 A input
• 18 IEC outlets: 6 C13 + 12 C19 distribution
• Real-time load metering via SNMP/Web/Telnet
• Vertical rackmount design preserving unit space
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | AP8866 |
| Product Type | Metered Rack Power Distribution Unit |
| PDU Type | Metered |
| Nominal Input Voltage | 208 V AC |
| Input Connector | IEC 60309 60 A 3P+PE |
| Frequency | 50/60 Hz |
| Load Capacity | 17.2 kW (approximate) |
| Maximum Input Current | 60 A |
| Maximum Line Current per Phase | 48 A |
| Output Voltage | 208 V AC |
| Output Receptacles | 6 × IEC 60320 C13, 12 × IEC 60320 C19 |
| Power Monitoring | Real-time monitoring (amps, volts, kW, kWh) |
| Management Interfaces | SNMP, Web, Telnet |
| Form Factor | Zero-U vertical rackmount |
| Dimensions (H × W × D) | ~72.0 × 2.2 × 2.0 in |
| Weight | ~20.9 lb |
| Cable Length | ~6 ft (1.83 m) |
| Operating Temp. | 0-55 °C |
| Humidity | 5-95 % non-condensing |
| Certifications | UL, cUL, FCC, EN standards |
