Detailed Specifications

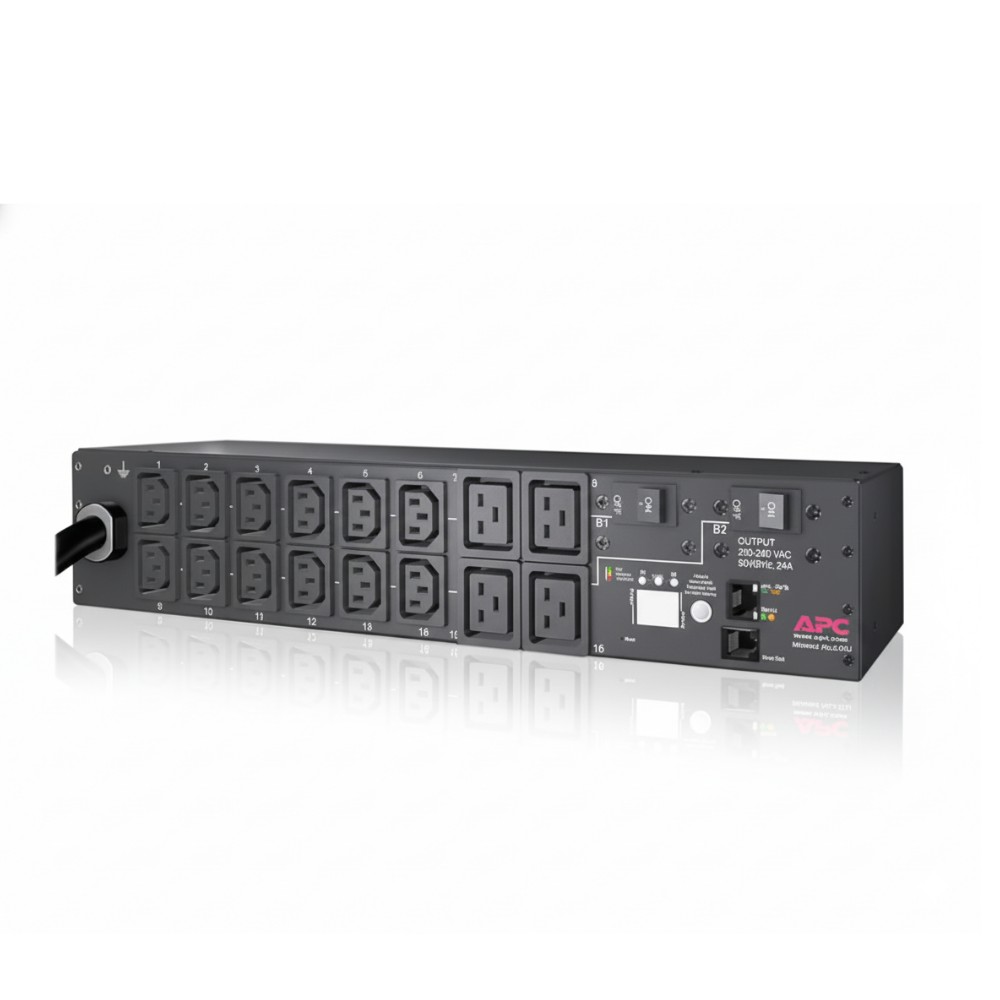

APC AP7552 Basic Rack PDU
Overview
The APC AP7552 is a basic rack power distribution unit that delivers single-phase AC power from a branch feed to multiple pieces of rack-mounted equipment. It accepts up to 16 A at 200 - 230 V and distributes power through twenty IEC 60320 C13 and four IEC 60320 C19 outlets for servers, switches, and storage. The vertical Zero-U form factor mounts in the rear channel of standard racks, conserving usable rack space for IT devices. It is used in data centers, telecom closets, and branch racks where straightforward, unmanaged power distribution is required.
Key Features
(20) IEC 60320 C13 output receptacles
(4) IEC 60320 C19 output receptacles
Supports 16 A single-phase at 230 V input
Vertical Zero-U rack mount design
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | AP7552 |
| Product Type | Basic Rack Power Distribution Unit |
| Input Voltage | 200 V / 208 V / 230 V AC |
| Input Frequency | 50 / 60 Hz |
| Maximum Input Current | 16 A |
| Input Connection | IEC 60320 C20 |
| Output Connections | 20 × IEC 60320 C13; 4 × IEC 60320 C19 |
| Maximum Load Capacity | 3680 VA |
| Mounting Type | Vertical, Zero U |
| Power Cord Length | 10 ft (≈ 3.05 m) |
| Height | 1619 mm |
| Width | 56 mm |
| Depth | 44 mm |
| Net Weight | 4.86 kg |
