Detailed Specifications
APC AP9568 Basic Rack PDU
Overview

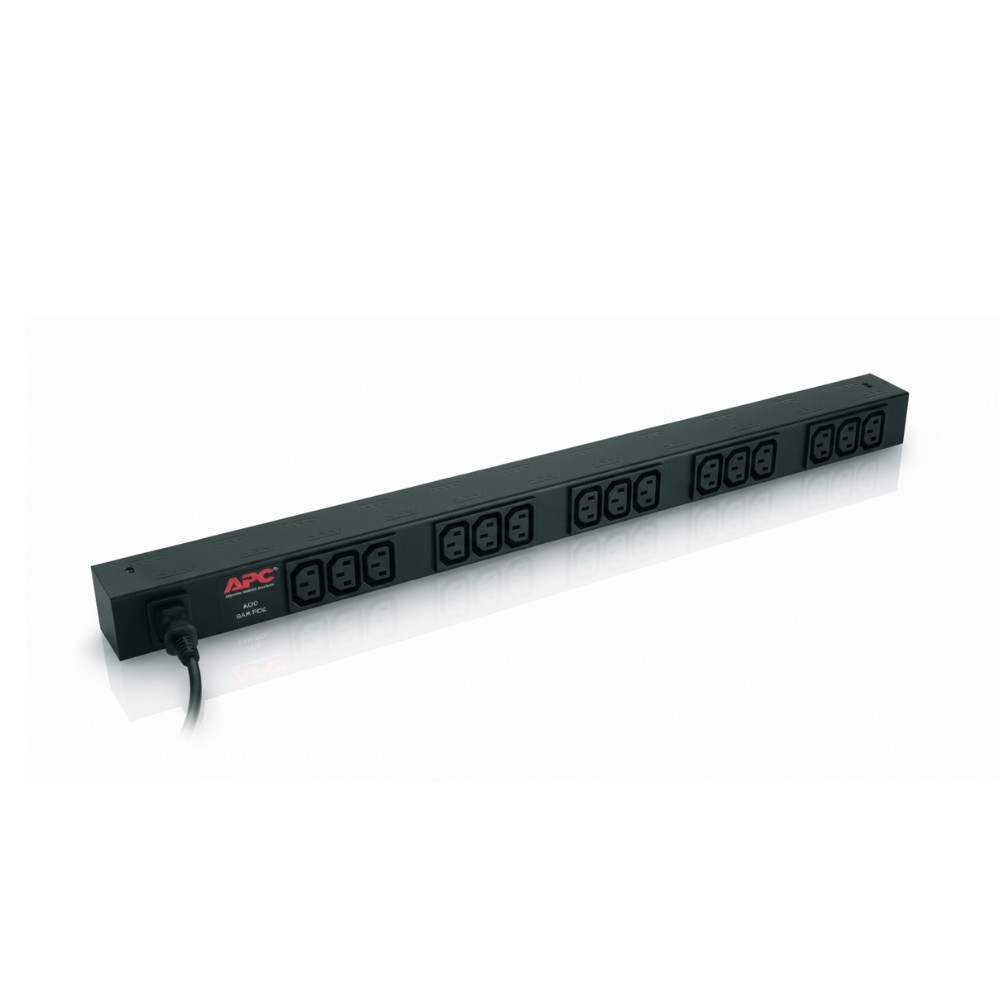

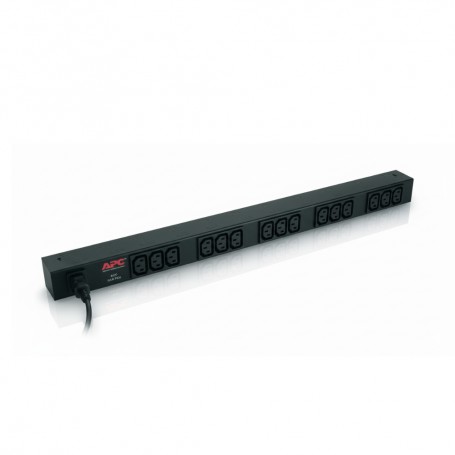

The APC AP9568 is a basic rack power distribution unit designed to deliver AC power from a single branch feed to multiple rack-mounted devices. It supports a maximum input current of 10 A at 230 V and distributes power through fifteen IEC 60320 C13 outlets for servers, network switches, and other IT equipment. Its vertical Zero U form factor mounts in the rear channel of a standard rack, preserving usable rack space for active hardware. The unit is commonly deployed in data centers, wiring closets, and branch locations where simple, non-metered distribution is required.
Key Features
Vertical Zero U rack mount design
(15) IEC 60320 C13 output outlets
IEC 60320 C14 inlet with 6.5 ft cord
Supports 10 A at 230 V input
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | AP9568 |
| Product Type | Basic Rack Power Distribution Unit |
| Maximum Input Current | 10 A |
| Input Voltage | 208 V / 230 V / 240 V AC |
| Input Frequency | 50/60 Hz |
| Input Connection | IEC 60320 C14 |
| Output Connections | 15 × IEC 60320 C13 |
| Maximum Load Capacity | 2300 VA |
| Power Cord Length | ~2.0 m (6.5 ft) |
| Mounting Type | Vertical, Zero U |
| Dimensions (H × W × D) | 609.6 × 43.2 × 43.2 mm |
| Net Weight | ~2 kg |
| Operating Temperature | 0°C to 45°C |
