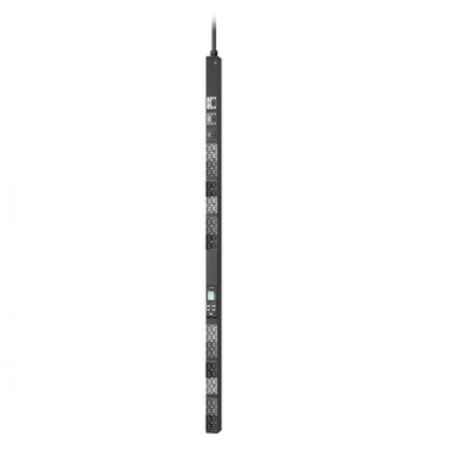

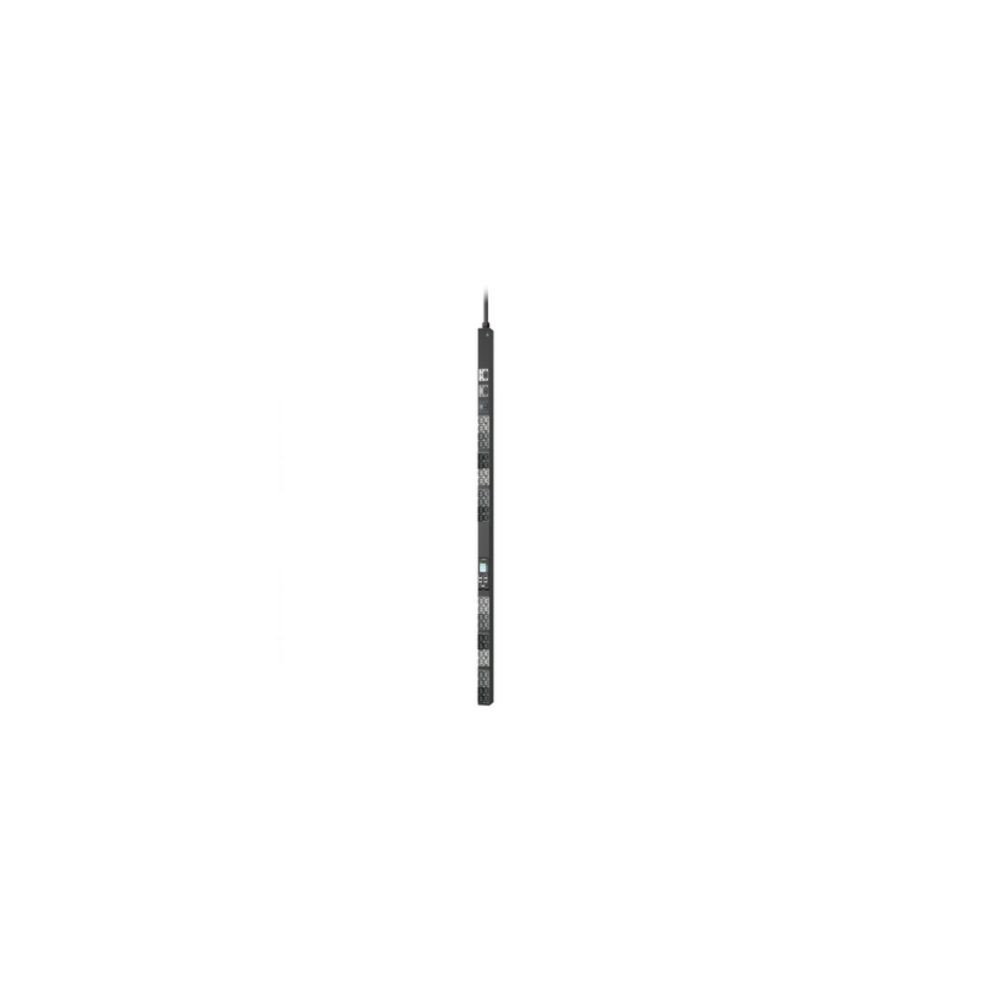

APC NetShelter Rack PDU Advanced Gen 2
The APC APDU11351SM is a NetShelter Rack PDU Advanced Gen 2 designed for 3-phase power distribution in server and networking racks. It provides 8.6kW of capacity at 208V and combines switched outlets with metering at the outlet level.
Power Distribution
The PDU uses a 30A NEMA L21-30P input and provides 48 outlets. Twenty-four outlets use a 4-in-1 combination design supporting C13, C15, C19, and C21 connections, while another 24 outlets support C13 and C15 connections.
Switching and Metering
The APDU11351SM provides switched, metered outlets for remote power control and power visibility. Active measurements include electrical parameters such as voltage, current, power, and energy, helping operators monitor connected rack equipment.
Key Features
- 8.6kW / 8600VA power distribution capacity
- 3-phase 208V input with 30A current limit
- 48 total outlets with 4-in-1 combination outlet design
- Switched and metered outlet functionality
- 0U vertical rack-mounted form factor
Network and Management
The PDU provides Ethernet 10/100/1000 connectivity and USB connectivity. It supports APC's Secure NMC3 system and EcoStruxure IT, with enhanced cybersecurity features for managed rack power environments.
Applications
The APDU11351SM is designed for server and networking racks, particularly high-density environments requiring centralized power distribution, outlet-level switching, and electrical monitoring.
DC Supplies Product Note
Confirm the facility's electrical service and rack configuration before deployment. This model requires a 3-phase 208V supply through a NEMA L21-30P input and uses a vertical 0U mounting configuration. The 48 outlets are divided between 24 C13/C15/C19/C21 combination outlets and 24 C13/C15 outlets.
Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number / MPN | APDU11351SM |
| Product Type | Power Distribution Unit (PDU) |
| Product Family | NetShelter Rack PDU Advanced |
| Generation | Gen 2 |
| PDU Type | Switched Metered Outlet |
| Input Voltage | 208V AC, 3-phase |
| Input Current Limit | 30A |
| Line Rated Current | 24A |
| Input Connection | NEMA L21-30P |
| Load Capacity | 8.6kW / 8600VA |
| Output Voltage | 208V |
| Total Outlets | 48 |
| Combination Outlets | 24 x C13/C15/C19/C21 |
| Additional Outlets | 24 x C13/C15 |
| Rack Form Factor | 0U |
| Mounting Orientation | Vertical |
| Cable Length | 3m (9.8 ft) |
| Network Connectivity | Ethernet 10/100/1000 |
| USB | Yes |
| Dimensions | 1780 x 56 x 75 mm (70.08 x 2.2 x 3.0") |
| Net Weight | 9.4 kg (20.7 lb) |
| Color | Black |
| Warranty | 3 years repair or replace |
FAQs
What is the APC APDU11351SM?
It is an APC NetShelter Rack PDU Advanced Gen 2 with switched metered outlets for 3-phase rack power distribution.
What is the power capacity?
The APDU11351SM has an 8.6kW (8600VA) load capacity.
How many outlets does it provide?
It provides 48 outlets: 24 combination C13/C15/C19/C21 outlets and 24 C13/C15 outlets.
What input connection does it use?
The PDU uses a NEMA L21-30P input connection for 3-phase 208V power.
Does it support remote management?
Yes. The APDU11351SM provides Ethernet 10/100/1000 connectivity and supports APC Secure NMC3 and EcoStruxure IT management capabilities.
What rack space does it occupy?
The APDU11351SM is a vertical 0U rack-mounted PDU.
