Detailed Specifications

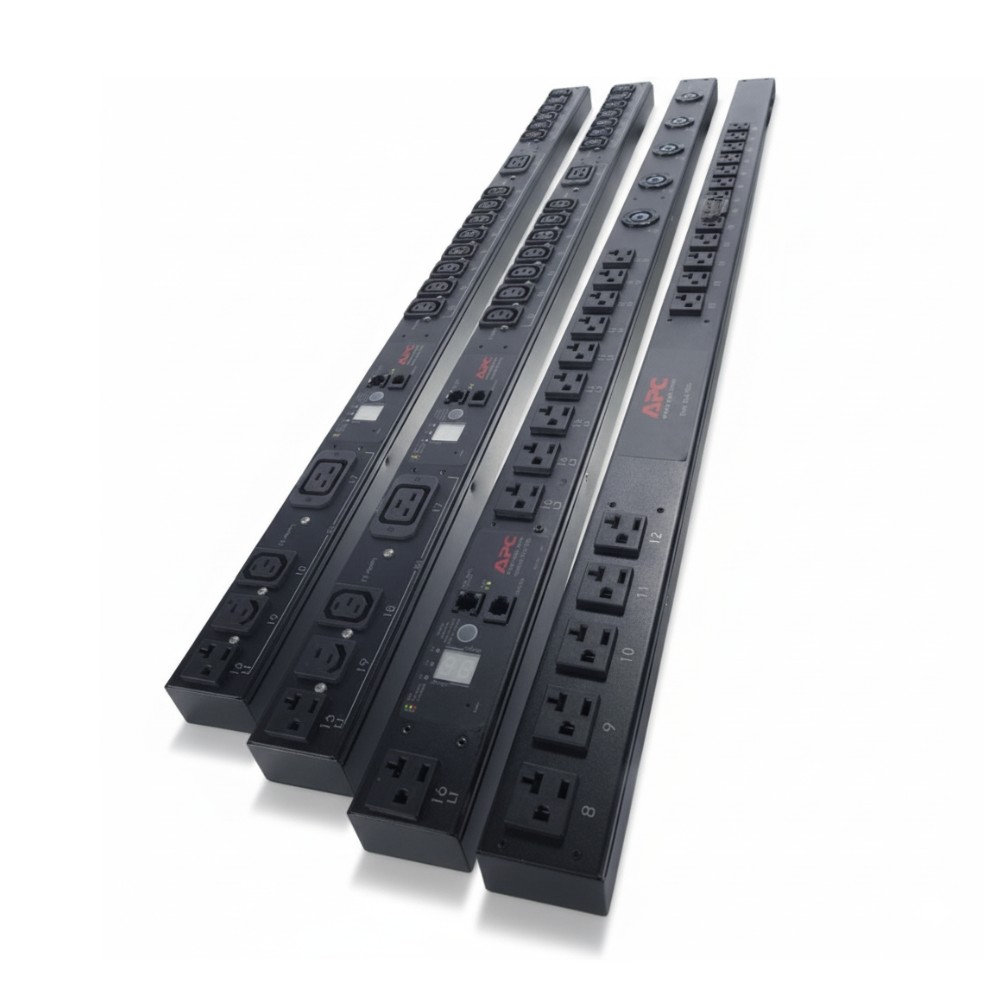

APC AP7968B Switched Zero U Rack PDU
Overview
The APC AP7968B is a switched rack power distribution unit designed for medium-density IT racks and server cabinets requiring remote outlet control. It distributes AC power to a total of 24 outlets with individual switching and supports networked management for power sequencing and load control. The unit mounts vertically in a zero U profile to conserve rack space while providing secure management via Web and SNMP interfaces. It is suitable for data centers, network closets, and edge racks where controlled power delivery and outlet scheduling are required.
Key Features
24 AC outlets with individual switching control
Zero U vertical rack mount profile
Remote management via Web and SNMP
200-240 V AC input range
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC |
| Part Number | AP7968B |
| Product Type | Switched Rack PDU |
| PDU Type | Switched |
| Input Voltage Range | 200-240 V AC |
| Output Voltage | 200-240 V AC |
| Maximum Load Capacity | 5.76 kW |
| Maximum Input Current | 24 A |
| AC Outlets | 24 × IEC C13 |
| Input Connector | IEC 60320 C20 |
| Mounting | Zero U vertical rack mount |
| Network Interface | Ethernet (10/100) |
| Remote Management | Web, SNMP |
| Dimensions (H×W×D) | 902 × 56 × 44 mm |
| Weight | 4.76 kg |
