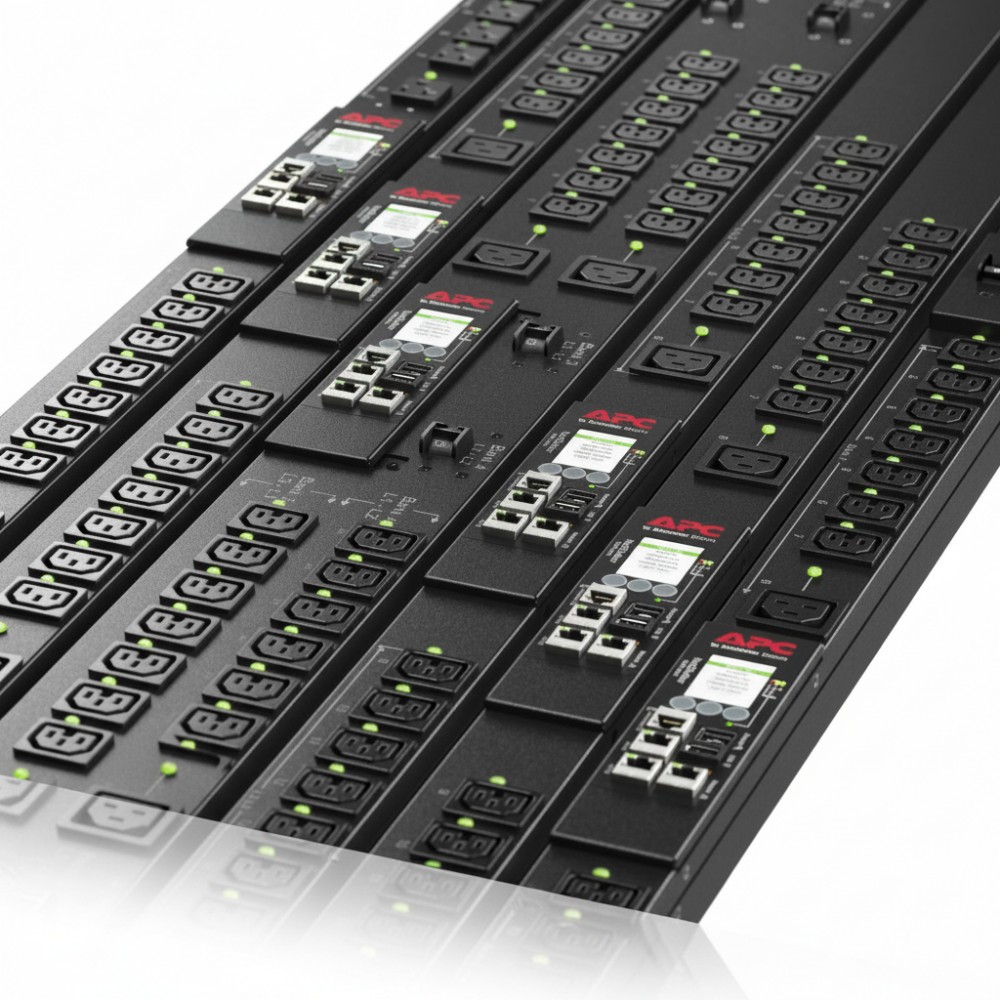

APC APDU9953 Rack PDU 9000 Switched, ZeroU, 32A, 230V with Outlets View larger

APC APDU9953 Rack PDU 9000 Switched, ZeroU, 32A, 230V with Outlets

APDU9953

New

Switched 0U Rack Power Distribution Unit
×




Detailed Specifications

APC APDU9953 Rack PDU 9000 Switched ZeroU 32A PDU

Overview

The APC APDU9953 is a switched rack power distribution unit designed for managed rack power control with outlet sequencing and remote access. It distributes AC power to a mix of IEC C13 and C19 outlets with individual switching capability and network management. The 0 U vertical mount conserves rack space while supporting up to 32 A input current. It fits data centers, server rooms, telecom closets, and other IT racks requiring controlled power distribution and monitoring.

Key Features

  • 24 AC outlets with switched control

  • 32 A input capacity for 200–240 V AC range

  • Zero U vertical rack profile

  • Gigabit Ethernet network management

Technical Specifications

SpecificationDetail
Brand APC
Part Number APDU9953
Product Type Switched Rack PDU
PDU Type Switched
Input Voltage Range 200–240 V AC
Frequency 50–60 Hz
Input Current 32 A
Maximum Power 7400 VA
Input Connector IEC 60309 32 A 2P+E
Outlet Count 21 × C13, 3 × C19
Network Interface Gigabit Ethernet
Mounting Zero U vertical rack mount
Operating Temperature –5 °C to 45 °C
Dimensions (H×W×D) 1829×56×46 mm
Weight 7.34 kg
