Detailed Specifications

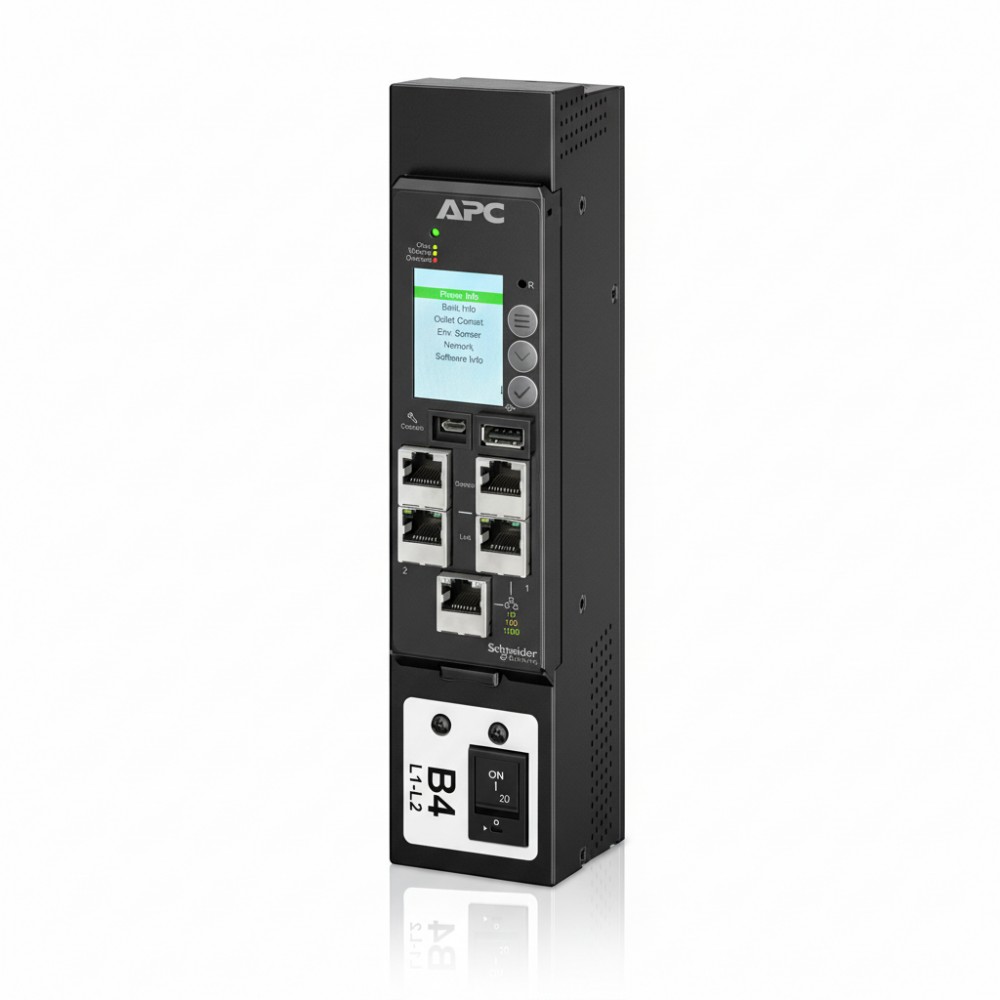

APC APDU11351ME Metered 3-Phase Rack PDU
Overview
The APC APDU11351ME is a metered rack power distribution unit for IT and data center racks that need real-time power usage visibility and centralized outlet management. It delivers up to 8.6 kW at 208 V with a mix of combination outlets and supports networked monitoring through an NMC3 interface. The vertical 0 U design installs alongside equipment without using rack unit space. It fits high-density server racks, telecom closets, and edge enclosures where metering, remote access, and cascading to other PDUs are required.
Key Features
42 IEC combination outlet count with flexible types
8.6 kW capacity at 208 V three-phase input
Integrated metering with NMC3 network management
10/100/1000 RJ-45 network for SNMP/Web/CLI
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC |
| Part Number | APDU11351ME |
| Product Type | Metered Rack PDU |
| PDU Type | Metered |
| Input Voltage | 208 V AC three-phase |
| Output Voltage | 208 V AC |
| Maximum Load Capacity | 8.6 kW (8600 VA) |
| Input Current | 30 A |
| Input Connector | NEMA L21-30P |
| Outlet Configuration | 21 × C13/C15/C19/C21 + 21 × C13/C15 |
| Network Interface | 10/100/1000 RJ-45 |
| Management | NMC3, Web, SNMP, CLI |
| Mounting | Vertical 0U rack-mounted |
| Cord Length | 9.8 ft (3 m) |
| Weight | 17 lb (7.7 kg) |
