Detailed Specifications
APC APDU10350ME Advanced Metered Rack PDU
Overview
The APC APDU10350ME is a three-phase advanced metered rack power distribution unit delivering high outlet density with real-time metering and network visibility. It supports 48 combination IEC outlets and either 32 A at 400 V or 30 A at 415 V feed, suitable for high-density rack power deployments. The unit provides remote metering accuracy and cascade network management via dual Ethernet ports and an interactive LCD for local metrics. It is intended for enterprise data centers and server rooms requiring precise power tracking and load balancing.
Key Features

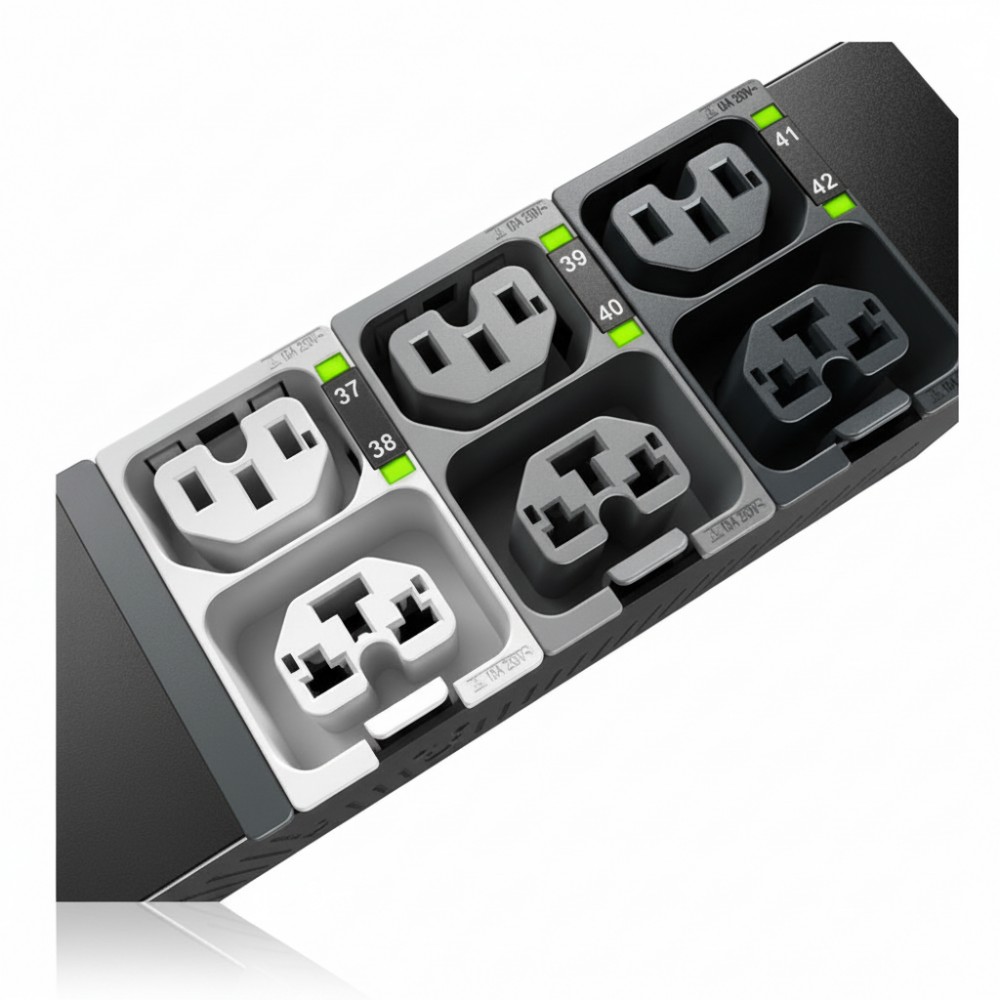

48 combination IEC outlets for flexible connections
Metered power with 1 % accuracy
Dual Ethernet network management ports
Interactive local LCD display
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC |
| Part Number | APDU10350ME |
| Product Type | Advanced Metered Rack PDU |
| Phase | Three-phase |
| Input Voltage | 400 V AC / 415 V AC |
| Input Current | 32 A @ 400 V / 30 A @ 415 V |
| Load Capacity | 22.1 kW @ 400 V / 17.3 kW @ 415 V |
| AC Outlets | 48 combination IEC C13/C15/C19/C21 |
| Input Plug | IEC 60309 30 A 3P+N+PE |
| Mounting | Zero U vertical rack mount |
| Rack Units | 0U |
| Cord Length | 5.9 ft (1.8 m) |
| Dimensions (H×W×D) | 70.08″×2.20″×2.95″ |
| Weight | 18.5 lb (8.4 kg) |
| Metering Accuracy | 1 % |
| Network Interfaces | Dual Ethernet (Gigabit + 10/100) |
