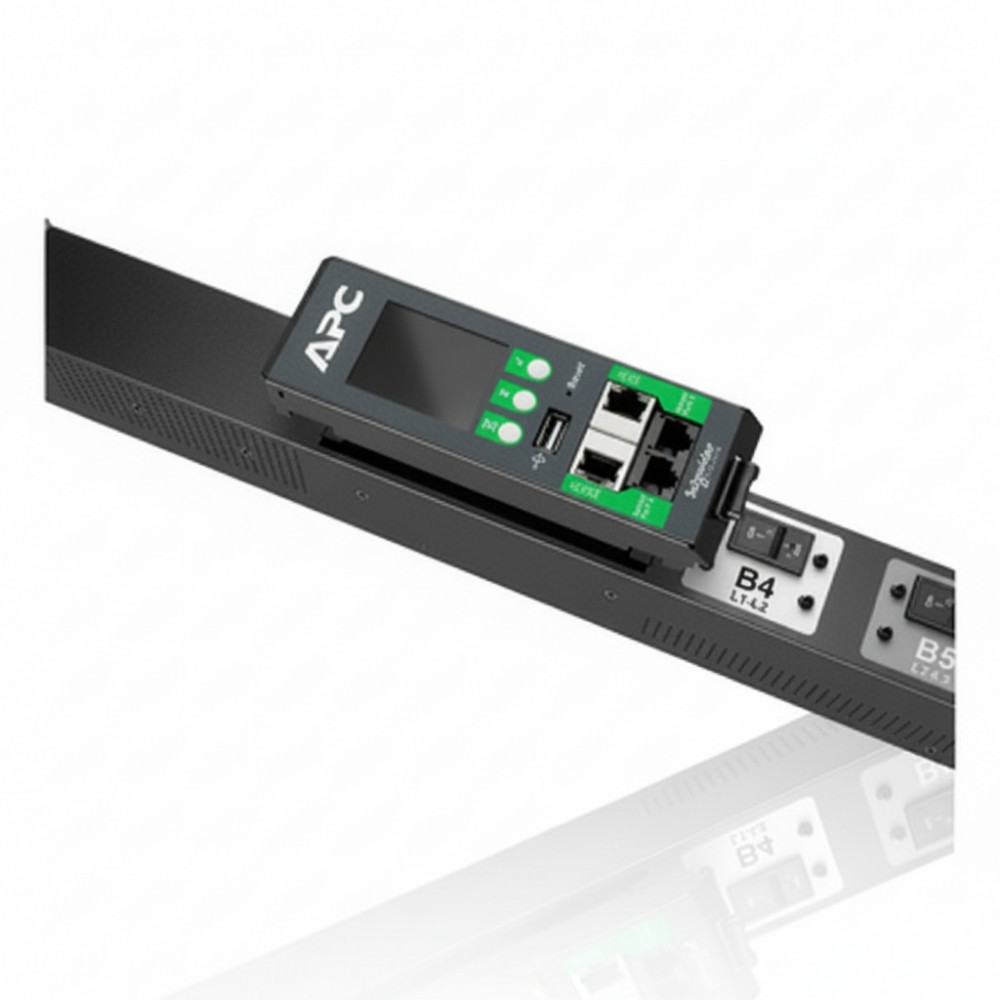

APC APDU10250SM by Schneider Electric NetShelter 48-Outlets PDU View larger

APC APDU10250SM by Schneider Electric NetShelter 48-Outlets PDU

APDU10250SM

New

In Stock

11.5kW Switched Metered Rack PDU, 415V 3-Phase, 48 Outlets
×




$2,874.00

Detailed Specifications

APC APDU10250SM – Switched Metered Rack PDU, 415V 3-Phase

Overview

The APC APDU10250SM is a high-density, vertically mountable switched metered PDU designed for enterprise and colocation data centers. It provides 11.5kW of power through 48 outlets, enabling efficient load distribution for high-density IT equipment. Its 0U vertical form factor saves valuable rack space while offering real-time metering for amps, volts, kW, and kWh. The PDU supports network-based remote monitoring and outlet switching for proactive power management.

Key Features

  • High Power Capacity: 11.5kW supports high-density IT racks.

  • Flexible Outlet Configuration: 48 IEC C13/C15/C19/C21 outlets.

  • Advanced Metering: Real-time monitoring of volts, amps, kW, and kWh.

  • Remote Outlet Control: Individual outlets controllable via network.

Technical Specifications

AttributeSpecification
Brand APC by Schneider Electric
Part Number APDU10250SM
Product Type Switched Metered Rack PDU
Form Factor 0U Vertical
Power Capacity 11.5kW
Input Voltage 415V 3-Phase
Output Voltage 240V
Input Current 20A
Outlets 24 x IEC C13/C15, 24 x IEC C13/C15/C19/C21
Input Plug Type IEC 60309 20A 3P+N+PE
Dimensions (H x W x D) 58.7" x 2.2" x 3"
Weight 17 lbs (7.7 kg)
Operating Temperature 0°C to 40°C
Operating Humidity 0% to 95% (non-condensing)
Warranty 3 years
