Detailed Specifications

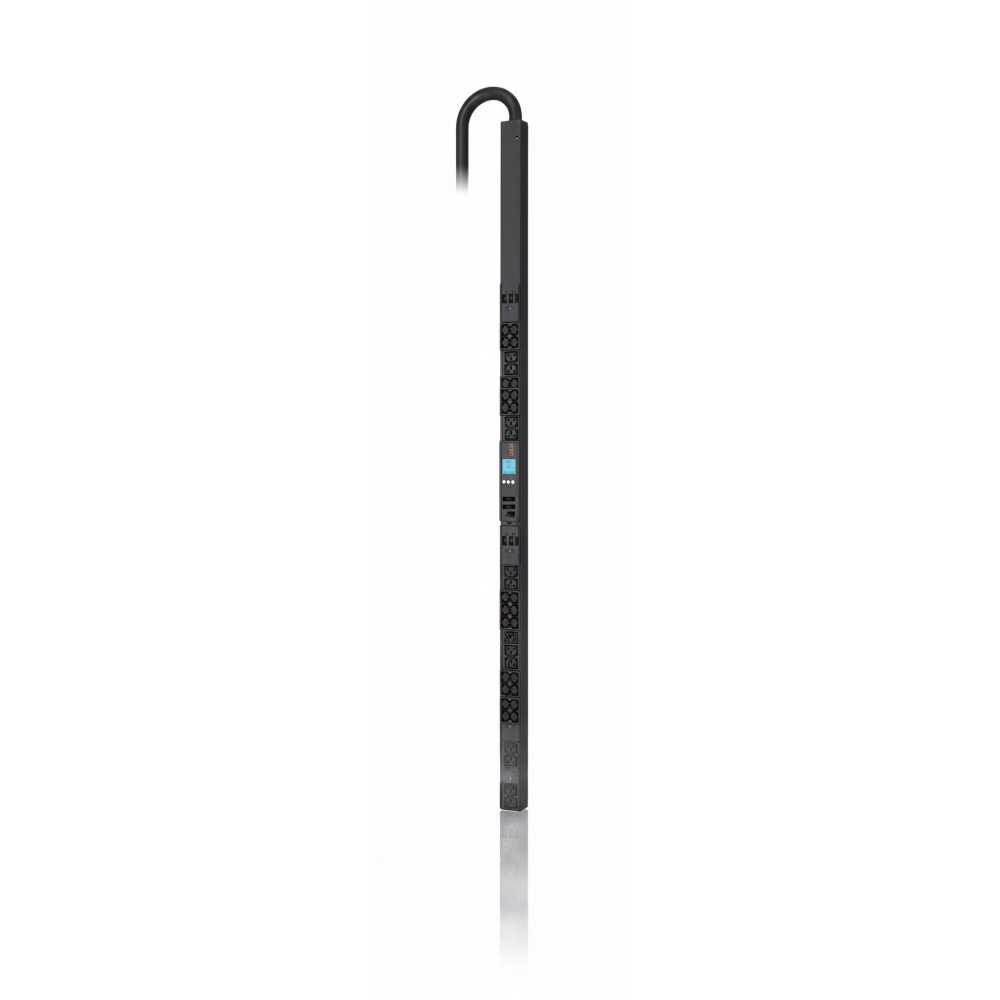

APC AP8888 NetShelter Metered Rack PDU 2G, 0U, 23.0kW, 240V
Overview
The APC AP8888 is a high-capacity, vertically mountable power distribution unit (PDU) designed for enterprise and colocation data centers. It offers 23.0kW of power distribution with 30 IEC C13 and 12 IEC C19 outlets, providing efficient power management in a compact 0U form factor. With real-time metering and user-defined alarm thresholds, it ensures optimal load balancing and protection against potential circuit overloads.
Key Features
High Power Capacity: Delivers up to 23.0kW of power, supporting high-density IT equipment.
Flexible Outlet Configuration: Equipped with 30 IEC C13 and 12 IEC C19 outlets to accommodate various devices.
Advanced Metering: Provides real-time monitoring of amps, volts, kW, and kWh with +/- 3% accuracy.
User-Defined Alarms: Configurable thresholds for proactive overload protection.
Remote Monitoring: Supports secure Web, SNMP, or Telnet interfaces for remote access and management.
Zero-U Installation: Mounts vertically in the rack without occupying valuable rack space.
Technical Specifications
| Attribute | Specification |
|---|
| Brand | APC by Schneider Electric |
| Part Number | AP8888 |
| Product Type | Metered Rack PDU |
| Form Factor | 0U Vertical |
| Power Capacity | 23.0kW |
| Input Voltage | 400V 3-Phase |
| Output Voltage | 240V |
| Input Current | 32A (Max 40A) |
| Outlets | 30 x IEC C13, 12 x IEC C19 |
| Input Plug Type | IEC 60309 60A 3P+N+E |
| Dimensions (H x W x D) | 72.01" x 2.20" x 2.01" (1829 x 56 x 51 mm) |
| Weight | 22.3 lbs (10.1 kg) |
| Operating Temperature | -5°C to 60°C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Warranty | 2 years |
