Detailed Specifications

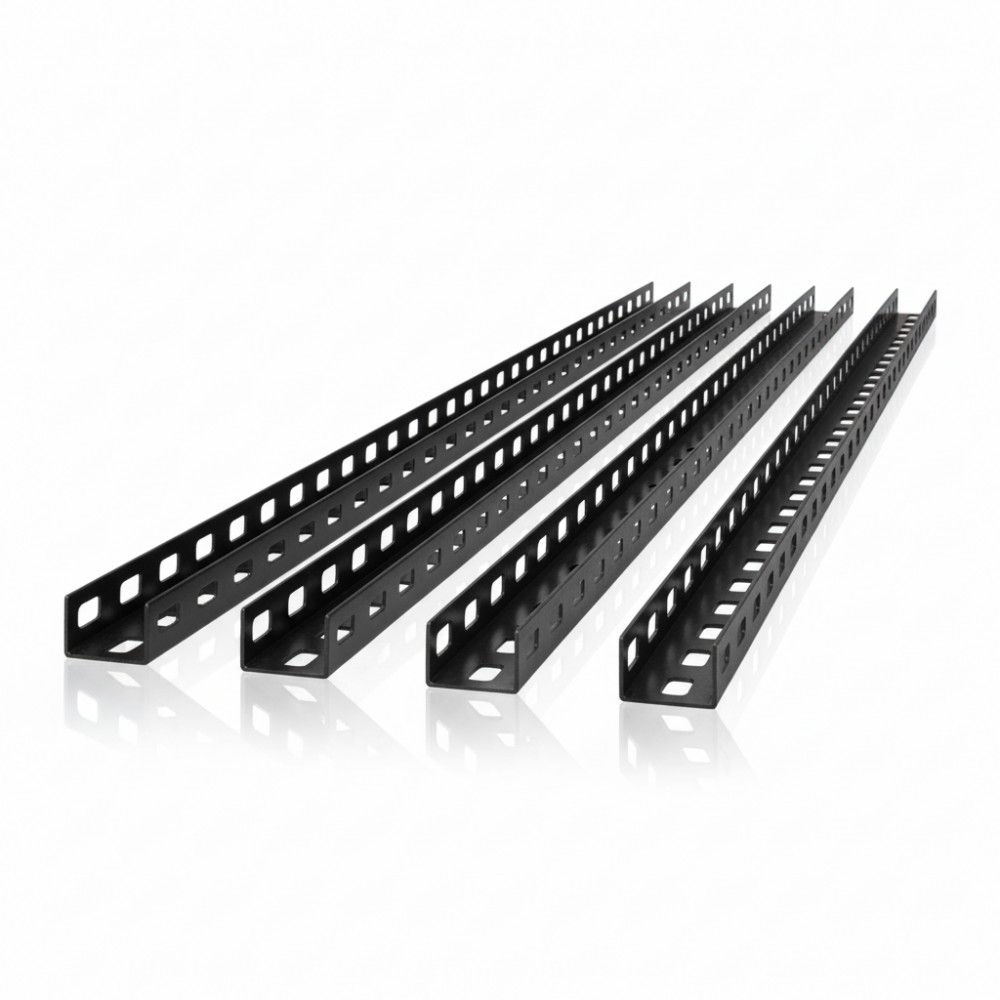

APC NSAC2052 - Ceiling-Mounting Rail Kit (1500 mm, Set of 4)
Overview
The APC NSAC2052 is a ceiling mounting rail kit designed for use with the NetShelter aisle-containment system. It is aimed at data-centre or network infrastructure engineers who need to install containment ceiling rails above rack rows. The kit includes four steel rails each 1500 mm (≈60 in) long, finished in black to match NetShelter enclosures. It supports ceiling-mounted installations in which the containment rails are anchored above the equipment, providing structural support and alignment for overhead ducting, containment panels, or curtain doors. Typical use cases include retrofit of existing rows where a ceiling-mounted containment frame is required, or new builds where the ceiling rails need to span rack rows in hot-aisle/cold-aisle designs.
Key Features
Includes four 1500 mm long ceiling rails for overhead mounting.
Black-finished steel construction for consistent appearance with NetShelter gear.
Supports ceiling-mount installations at heights from approx. 150 mm (6 in) up to 1524 mm (5 ft) above equipment, giving flexibility.
Compatible with curtain-doors, break-away doors and other containment door systems in the NetShelter ecosystem.
Modular kit format simplifies ordering and deployment of ceiling-mounted containment rail systems.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | NSAC2052 |
| Product Type | Ceiling-Mounting Rail Kit (Containment) |
| Included Rails | 4 rails × 1500 mm (60 in) length |
| Finish | Black steel |
| Installation Height | From approx. 150 mm to 1524 mm (6 in to 5 ft) above equipment |
| Weight (each rail) | ~6.55 kg for the complete kit of 4 rails |
| Compatible System | NetShelter Aisle-Containment |
| Environmental Compliance | RoHS / REACH (typical for APC containment) |
| Warranty | Standard APC accessory warranty |
