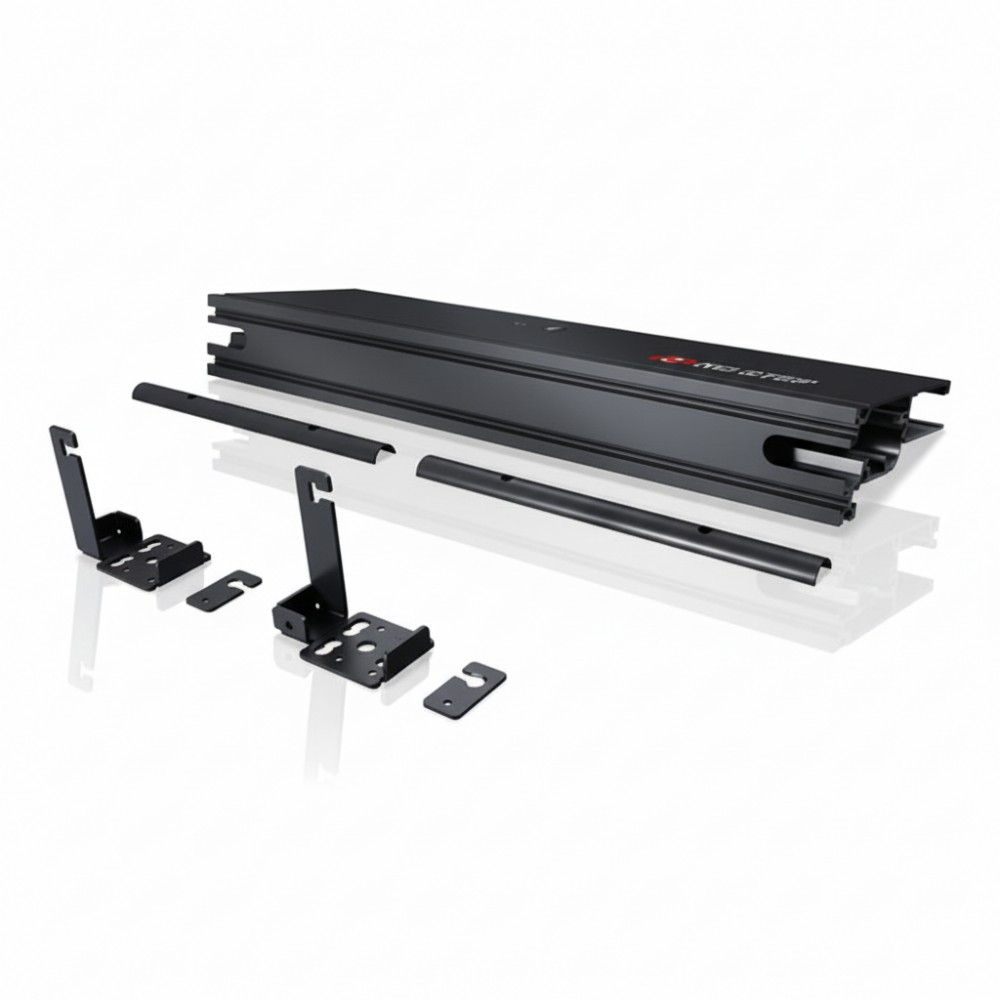

APC ACDC2001 600 mm Ceiling Panel Mounting Rail View larger

APC ACDC2001 600 mm Ceiling Panel Mounting Rail

ACDC2001

New

APC ACDC2001 is a 600 mm steel ceiling‑panel mounting rail for NetShelter containment,
×




Detailed Specifications

APC ACDC2001 600 mm Ceiling‑Panel Mounting Rail

Overview

The APC ACDC2001 is a ceiling‑panel mounting rail used in NetShelter / EcoAisle containment systems. It provides structural support for ceiling panels on a 600 mm module, enabling secure installation of containment roofs above server racks. This component helps to build or extend overhead containment spans, ensuring tight air containment to prevent hot/cold air mixing.In a practical scenario, you’d use this rail when your containment ceiling run needs consistent framing every 600 mm. It integrates seamlessly with APC’s containment framework and supports containment stability without sagging. Ideal for data centers where modular containment infrastructure is deployed row-by-row or rack-by-rack.

Key Features

  • 600 mm section length makes it highly modular and usable for custom ceiling layouts.

  • Height-adjustable support — allows up to ~168 mm height adjustment for alignment precision.

  • Steel construction ensures rigidity and long-term support for containment panels.

  • RoHS / REACH compliant — sustainable design aligned with data center environmental standards.

  • 5-year limited warranty — reliable part of the APC containment system.

Technical Specifications

SpecificationDetail
Brand APC (Schneider Electric)
Part Number ACDC2001
Product Type Ceiling‑Panel Mounting Rail
Key Spec — Length / Depth 600 mm (23.54 in)
Key Spec — Height Adjustable Up to 168 mm (6.61 in)
Key Spec — Weight ~8.6 kg (18.96 lb)
Management N/A (passive structural component)
Power Requirements None
Dimensions (W × D × H) ~396 mm × ~598 mm × ~168 mm
Operating Environment Indoor, data center aisle containment systems
Compliance RoHS, REACH
Warranty 5 year
