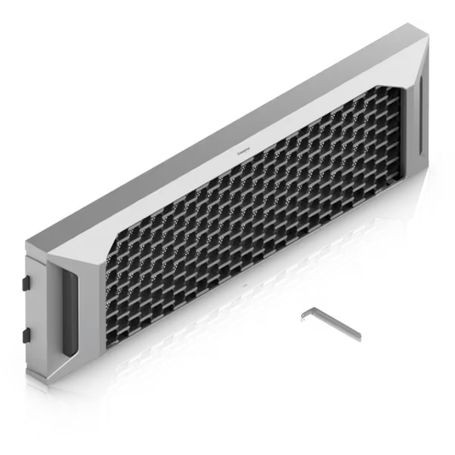

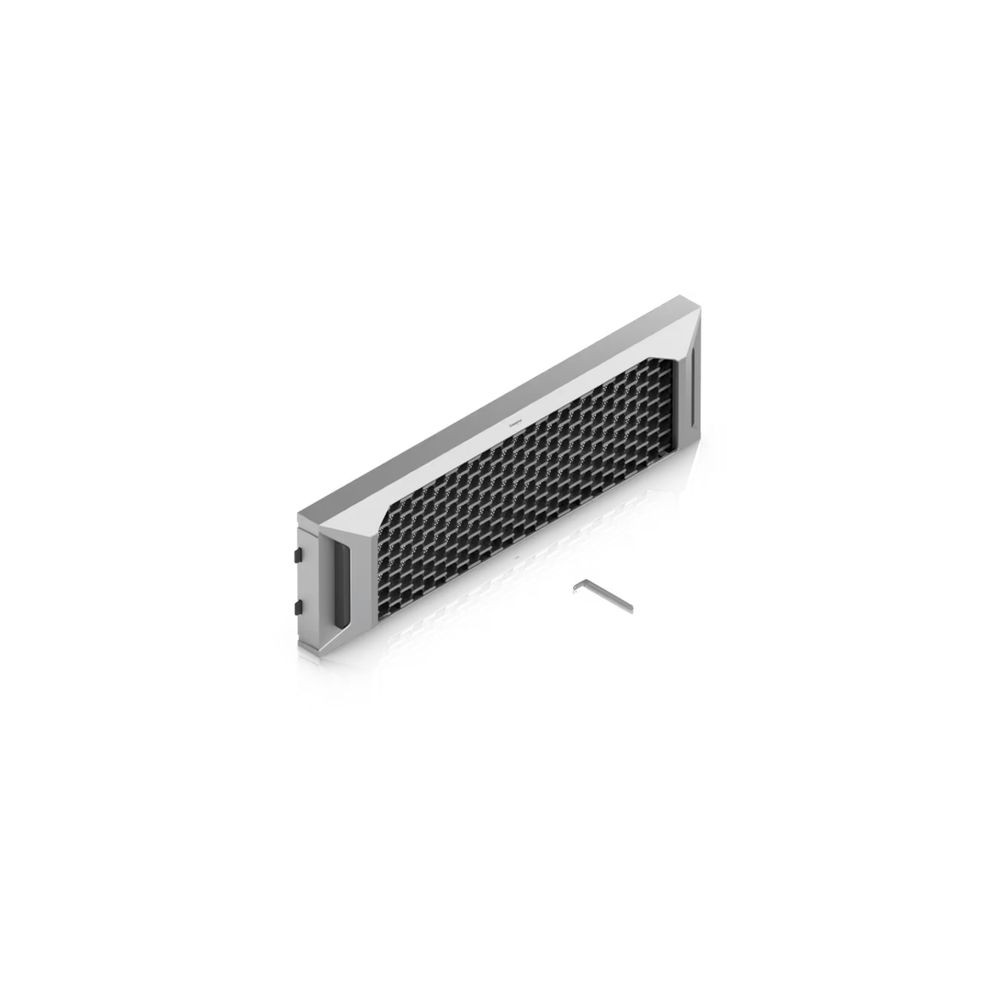

Ubiquiti UACC-3U-Bezel – UniFi 3U Rack Bezel with 4.7" Touchscreen & RGBW LED
Overview
The Ubiquiti UACC-3U-Bezel is a 3U rack faceplate designed to integrate with compatible UniFi Enterprise NVR (ENVR) and Enterprise NAS (ENAS) systems. It adds a 4.7-inch touchscreen and RGBW LED illumination to the front of the compatible rack-mounted equipment.
The bezel provides a local display interface and configurable visual status indication, including a boot-sequence wave effect and device locator function. It is a dedicated accessory for compatible ENVR and ENAS deployments rather than a universal rack bezel.
Technical Information
The UACC-3U-Bezel features a 4.7-inch touchscreen LCM and RGBW LEDs. The LED system supports a boot-sequence wave pattern, user-configurable device status indication, and a locate function.
The bezel uses a magnetic Type-C power connection and has a maximum power consumption of 3.78W. Its polycarbonate enclosure measures 441.7 x 132 x 51.9 mm and weighs 1.1 kg.
Compatibility
The UACC-3U-Bezel is designed for integration with Ubiquiti ENVR and ENAS systems. Compatibility should be confirmed with the specific Enterprise NVR or Enterprise NAS configuration before installation.
Applications
- UniFi Enterprise NVR rack installations
- UniFi Enterprise NAS rack installations
- 3U enterprise rack systems requiring a front-panel display
- Rack deployments requiring configurable LED status indication
- Infrastructure installations requiring local device identification and status visibility
Key Features
- 3U faceplate designed for compatible ENVR and ENAS systems
- Integrated 4.7-inch touchscreen LCM display
- RGBW LEDs with configurable status and device locator functions
- Magnetic Type-C power connection with 3.78W maximum consumption
- Polycarbonate enclosure measuring 441.7 x 132 x 51.9 mm
DC Supplies Product Note
The UACC-3U-Bezel is powered through a magnetic Type-C connection and has a maximum power consumption of 3.78W. The compatible ENVR or ENAS system and the bezel should be installed according to Ubiquiti's specified rack and power requirements.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-3U-Bezel |
| Product Type | UniFi 3U Rack Bezel / Faceplate |
| Compatible Systems | ENVR and ENAS |
| Rack Height | 3U |
| LCM Display | 1 x 4.7-inch touchscreen |
| LED Illumination | RGBW |
| LED Functions | Boot sequence wave pattern, user-configurable status, device locator |
| Power Method | Magnetic Type-C |
| Maximum Power Consumption | 3.78W |
| ESD/EMP Protection | Air: ±8 kV; Contact: ±4 kV |
| Enclosure Material | Polycarbonate |
| Dimensions | 441.7 x 132 x 51.9 mm (17.4 x 5.2 x 2 in) |
| Weight | 1.1 kg (2.3 lb) |
| Operating Temperature | -5 to 40°C (23 to 104°F) |
| Operating Humidity | 10–90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
FAQs
What is the Ubiquiti UACC-3U-Bezel?
It is a 3U rack faceplate for compatible Ubiquiti ENVR and ENAS systems, adding a 4.7-inch touchscreen and RGBW LED illumination.
Which Ubiquiti systems are compatible with the UACC-3U-Bezel?
Ubiquiti identifies ENVR and ENAS as compatible systems for this bezel.
What display is included?
The bezel includes a 4.7-inch touchscreen LCM display.
How is the UACC-3U-Bezel powered?
It uses a magnetic Type-C power connection and has a maximum power consumption of 3.78W.
What LED functions are supported?
The RGBW LEDs support a boot-sequence wave pattern, user-configurable device status indication, and a device locator function.
What are the physical dimensions?
The UACC-3U-Bezel measures 441.7 x 132 x 51.9 mm and weighs 1.1 kg.
