Overview

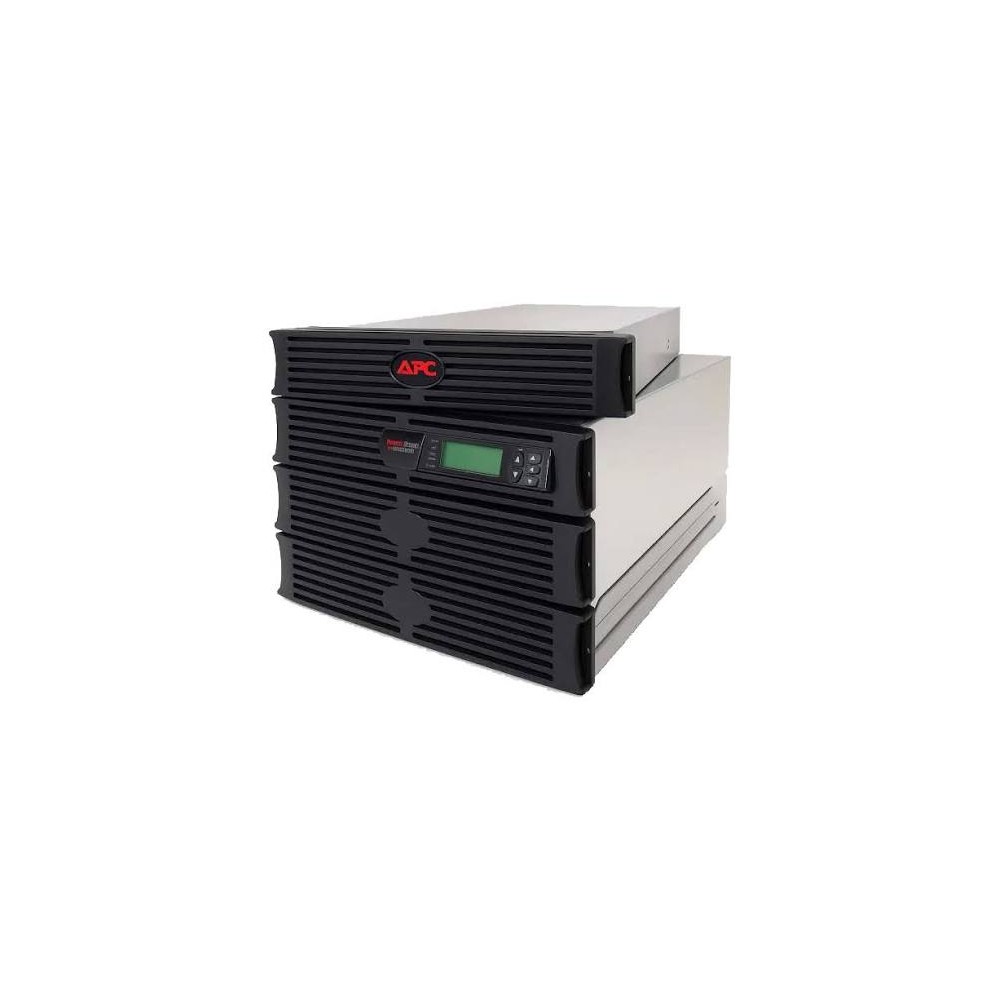

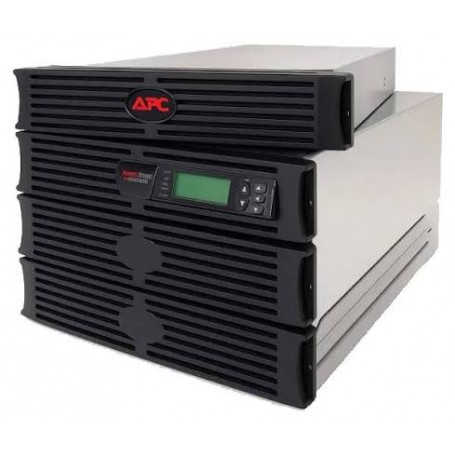

The APC SYHF6KT is a Symmetra RM 6kVA N+1 UPS frame designed for compatible 208V and 240V power protection installations. Manufactured by APC by Schneider Electric, it is intended for server rooms, networking environments, and enterprise IT applications that require reliable uninterruptible power protection.
This rack-mounted frame supports a rated capacity of 6000 VA and 4200 W. Its modular design provides four available power module slots and three battery slots, allowing compatible components to be installed according to the required UPS configuration.
The SYHF6KT is supplied as a bare frame without installed power modules or included battery modules. Additional compatible components may be required before the system can operate as a complete UPS.
Key Features
- APC Symmetra RM 6kVA N+1 UPS frame
- Manufacturer part number: SYHF6KT
- 208V and 240V input/output configuration
- Rated power capacity of 6000 VA and 4200 W
- Rack-mounted 8U form factor
- Four available power module slots
- Three available battery slots
- Lead-acid battery system compatibility
- Black finish
Technical Specifications
| Brand | APC |
|---|---|
| Manufacturer | Schneider Electric |
| Model | SYHF6KT |
| Product Type | Symmetra RM UPS Frame |
| UPS Series | Symmetra RM |
| Rated Capacity | 6000 VA / 6kVA |
| Rated Output Power | 4200 W / 4.2kW |
| Input Voltage | 208V AC; 240V configuration supported |
| Output Voltage | 208V AC; 240V configuration supported |
| Input Connection | NEMA L6-30P, 30A |
| Output Connections | 2 × NEMA L6-20R; 1 × NEMA L6-30R |
| Phase | Single-phase |
| Rack Height | 8U |
| Mounting Type | Rack-mounted |
| Power Module Slots | 4 available; 0 populated |
| Battery Slots | 3 available; 0 battery modules included |
| Battery Chemistry | Lead-acid compatible |
| Color | Black |
| Height | 14.02 inches (35.6 cm) |
| Width | 19.02 inches (48.3 cm) |
| Depth | 28.74 inches (73 cm) |
| Net Weight | 99.21 lbs (45 kg) |
Applications
The APC SYHF6KT is designed for compatible power protection installations serving servers, networking equipment, telecommunications systems, and other business-critical IT infrastructure. Its modular architecture supports configurations tailored to the power requirements of supported installations.
Compatibility and Installation
Before purchasing, confirm that the SYHF6KT is compatible with the required Symmetra RM configuration, electrical supply, and connected equipment. Verify the necessary power modules and battery modules using the manufacturer's documentation. Installation and commissioning should be completed by qualified personnel.
What's Included
This listing identifies the APC SYHF6KT frame. Published product information lists a user manual, rack-mounting brackets, support rails, and a software CD as supplied accessories. No power modules or battery modules are included. Confirm the actual contents and condition of the offered item before purchase.
Frequently Asked Questions
What is the APC SYHF6KT?
It is an APC Symmetra RM 6kVA N+1 UPS frame designed for compatible 208V and 240V installations.
Is it a complete, operational UPS?
The SYHF6KT is listed as a bare frame without installed power modules or included battery modules. Required components must be verified separately.
What is its rated capacity?
The rated capacity is 6000 VA, with an output power rating of 4200 W.
How much rack space does it require?
The frame has an 8U rack height.
Important Information
Product compatibility, included accessories, and operating requirements should be confirmed before purchase. Refer to the manufacturer's documentation for supported configurations and installation instructions.
