Detailed Specifications

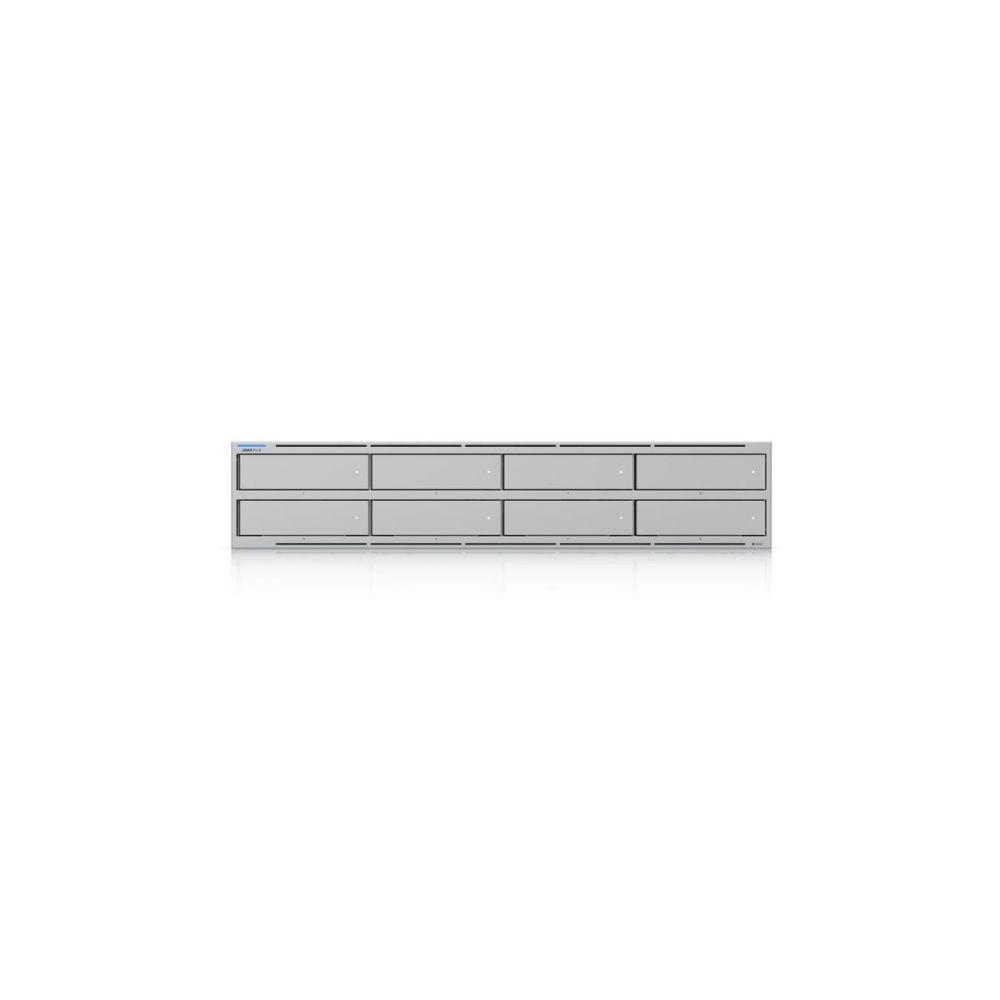

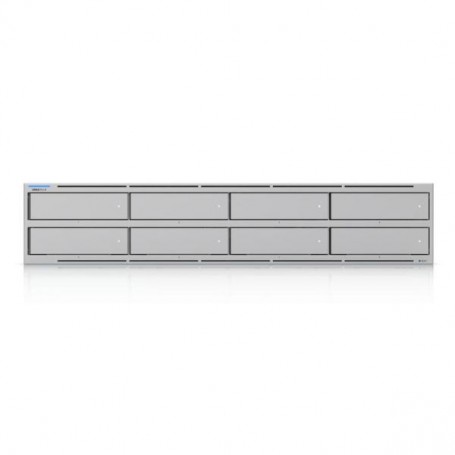

Ubiquiti UNAS-PRO-8 Bay Rack-Mount NAS
Overview
The Ubiquiti UNAS-PRO-8 is a 2U rack-mount network-attached storage platform designed for enterprise and high-bandwidth environments requiring centralized file services and high-speed network throughput. It supports eight 2.5″/3.5″ HDD/SSD drive bays and two M.2 NVMe slots for cache acceleration. The system provides multi-gigabit connectivity with dual 10 G SFP+ and one 10 GbE RJ45 port and includes redundant hot-swappable power supplies to maintain continuous operation under load. Built from SGCC steel with 16 GB of RAM and a quad-core ARM processor, it integrates with the UniFi ecosystem for network storage, backup, and shared file access.
Key Features
• Rack-mount 2U NAS with (8) drive bays
• Dual 10G SFP+ and 10 GbE RJ45 connectivity
• (2) M.2 NVMe slots for caching
• Redundant hot-swappable AC power supplies
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | UNAS-PRO-8 |
| Product Type | Rack-mount NAS |
| Form Factor | 2U rack mount |
| Drive Bays | (8) 2.5″/3.5″ HDD/SSD |
| M.2 Slots | (2) NVMe SSD (cache) |
| Network Interfaces | (2) 10 G SFP+, (1) 10 GbE RJ45 (10G/5G/2.5G/1G/100M) |
| Processor | Quad-Core ARM® Cortex-A57 @ 2.0 GHz |
| Memory | 16 GB |
| Power Supplies | (2) hot-swappable AC/DC 550 W |
| Max Power Consumption | 250 W |
| Max Drive Power Budget | 225 W |
| Dimensions (W×D×H) | 442.4 × 480 × 87.4 mm |
| Weight | 11.5 kg |
| Material | SGCC steel |
| Operating Temp | -5 °C to 40 °C |
| Certifications | NDAA, FCC, CE, IC |
