Detailed Specifications

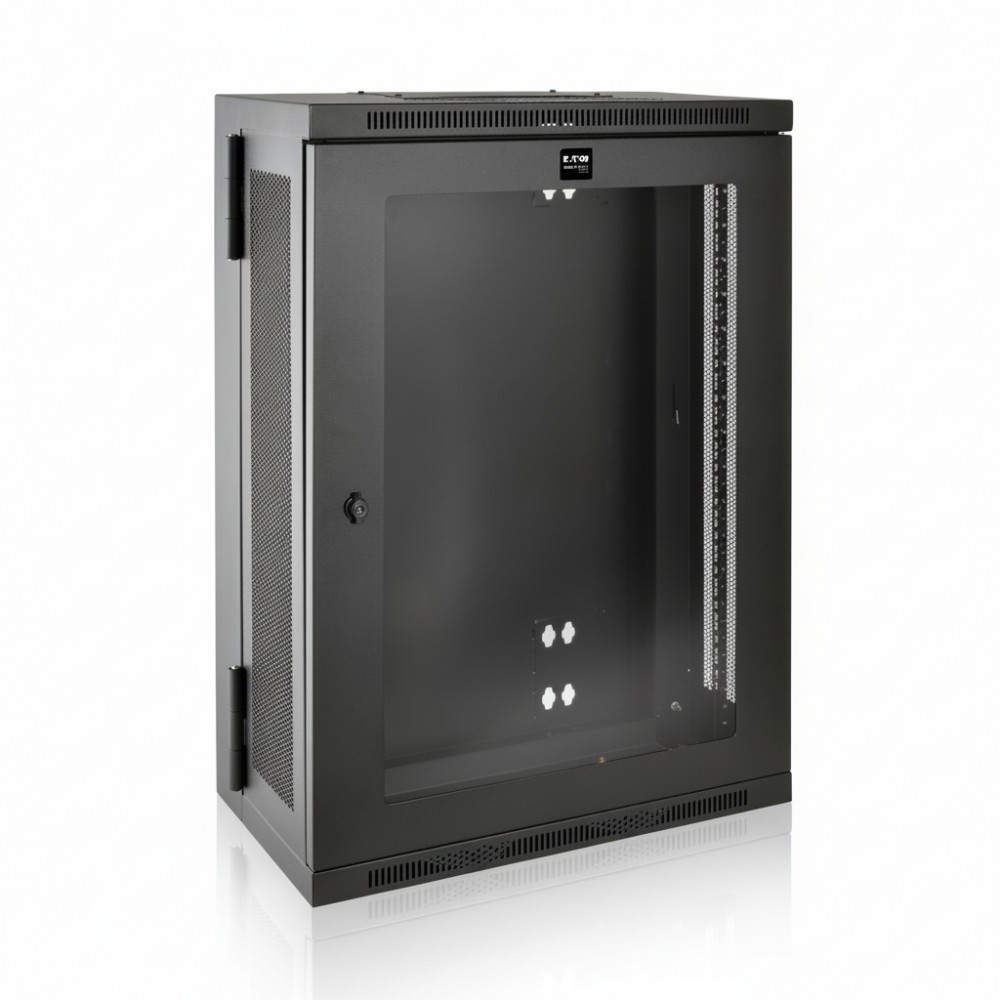

Eaton SRW18US13G 18U Wall-Mount Rack Enclosure
Overview :
The Eaton SRW18US13G is an 18U wall-mount rack enclosure designed for secure and organized housing of 19-inch EIA-standard equipment. It features a hinged front door with a shatter-resistant clear acrylic window, providing visibility while preventing unauthorized access. The enclosure offers a maximum load capacity of 200 lbs (90.7 kg) and accommodates equipment up to 13 inches (330 mm) deep. Ideal for network wiring closets, retail locations, classrooms, and back offices, it is suitable for environments with limited floor space.
Key Features :
Hinged Door: Allows easy back-door access for maintenance.
Clear Acrylic Window: Provides visibility of equipment without unlocking.
Lockable Steel Cabinet: Ensures equipment security.
Vented Panels: Facilitate airflow to keep equipment cool.
Reversible Door: Can be mounted to open left or right.
Technical Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | SRW18US13G |
| Product Type | Wall-Mount Rack Enclosure |
| Rack Units | 18U |
| Mounting Style | Wall-Mount |
| Material | Steel with Acrylic Window |
| Color | Black |
| Height | 35.6 inches (904.2 mm) |
| Width | 23.6 inches (599.4 mm) |
| Depth | 13 inches (330 mm) |
| Load Capacity | 200 lbs (90.7 kg) |
| Equipment Depth | Up to 13 inches (330 mm) |
| Mounting Hole Type | Square and Threaded |
| Ventilation | Vented Top, Bottom, and Sides |
| Door Type | Hinged with Clear Acrylic Window |
| Security Features | Lockable Door |
