Eaton B040-008-19 - 1U 8-Port Rack Console KVM Switch
Overview
The Eaton B040-008-19 is an integrated console KVM switch combining an LCD monitor, keyboard, and touchpad with an 8-port KVM switch in a single 1U rack-mountable unit. It is deployed by data center engineers, systems administrators, and rack infrastructure teams to localize server access and control in technical spaces where physical management of multiple servers or systems from one console is required. Its purpose is to provide consolidated keyboard/video/mouse access, saving rack space and reducing the need for separate peripherals.

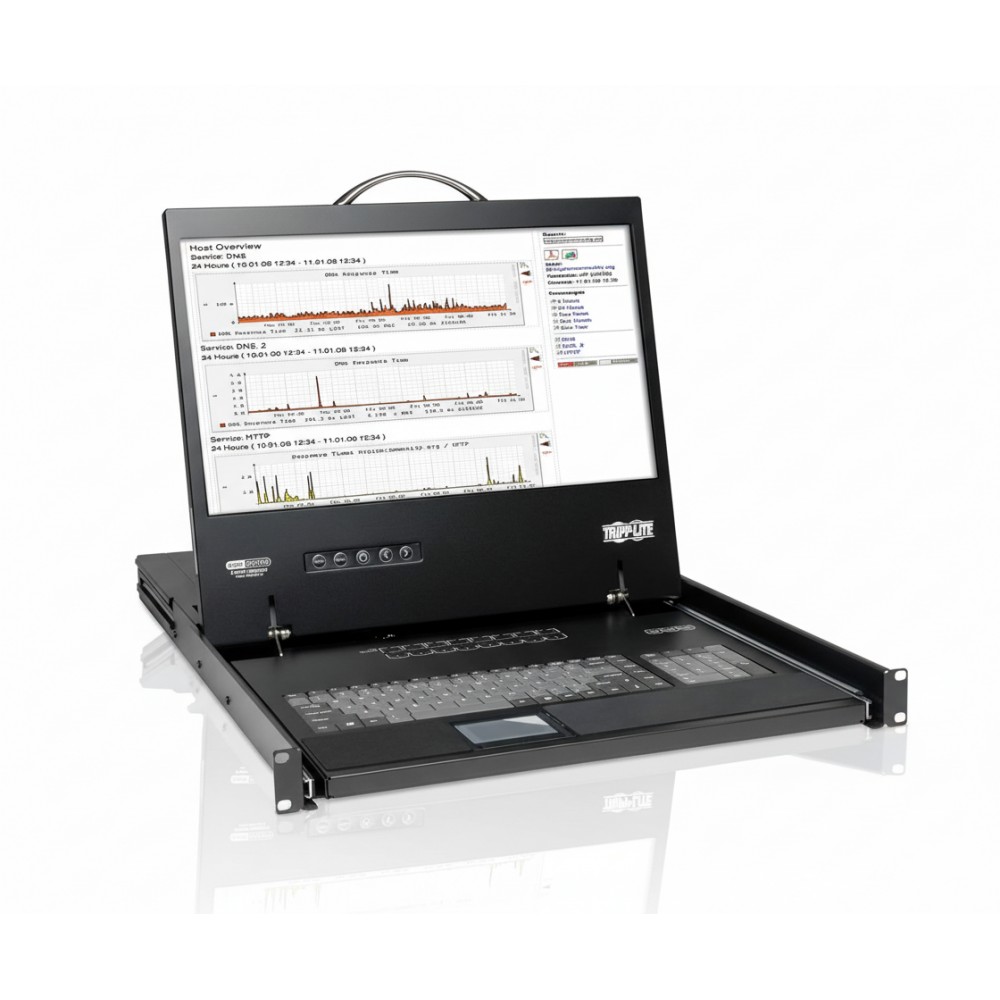

This model features a 19-inch (48.3 cm) LCD display with a 1366×768 resolution integrated into a flip-up drawer, paired with a full-size keyboard and touch-based pointing device. The built-in 8-port KVM switch supports direct control of connected servers and computers, selectable via on-console buttons, hotkeys, or an on-screen menu.
Mechanically, the B040-008-19 occupies 1U of EIA-310-standard 19″ rack space and is designed for installation in standard server racks with adequate depth (typically 27 - 42 in). Its flip-up design allows the console to retract when not in use, minimizing intrusion into aisle space and enabling ergonomic access during maintenance or troubleshooting.
Integration capabilities include connection to servers via HD15 (VGA) and USB/PS/2 interfaces, supporting most legacy and modern systems without additional driver installation. The unit supports daisy-chaining up to 15 additional compatible switches, enabling centralized access to a chained set of up to 248 endpoints from the same console. Password protection limits unauthorized access.
A practical deployment for the B040-008-19 is in racks hosting multiple servers or critical systems where IT staff perform frequent local administration, BIOS access, or troubleshooting without dedicating separate monitors and input devices per server. It is not suited for remote access needs × users requiring off-site control should consider network-accessible KVM over IP solutions instead.
Key Features
- Integrated 19″ LCD with 1366×768 resolution in a flip-up 1U drawer
- 8-port KVM switch with on-screen display and hotkey/select buttons
- Full-size keyboard plus touchpad pointing device
- Daisy-chain support up to 248 endpoints via compatible KVM switches
- Rack-mounted design with flip-out console for space-efficient access
Specifications
| Specification | Value |
|---|
| Brand | Eaton (Tripp Lite Series) |
| Part Number | B040-008-19 |
| Product Type | Rack-Mount Console KVM Switch |
| Number of Ports | 8 KVM Ports |
| Display Type | LCD |
| Display Size | 19″ (48.3 cm) |
| Display Resolution | 1366 × 768 |
| KVM Switching | Pushbutton, Hotkey, On-Screen Display |
| Supported Daisy-Chain | Up to 15 additional switches (up to 248 endpoints) |
| Keyboard Interface | Integrated keyboard |
| Pointing Device | Integrated touchpad |
| Video Interface | VGA (HD15) |
| USB/PS2 Support | USB & PS/2 keyboard/mouse |
| Rack Height | 1U |
| Operating Voltage | 100 - 240 V AC (auto-sensing) |
| Input Power | ~30 W typical |
| Mounting | Standard 19″ rack |
| Dimensions (H×W×D) | ~1.7″ × 17.7″ × 28.4″ |
| Weight | ~31.7 lb (14.38 kg) |
| Operating Temp | 32 °F to 104 °F (0 °C to 40 °C) |
| Relative Humidity | 20 % - 90 % non-condensing |
| Compliance | UL60950-1, FCC Class A, CE, RoHS, TAA |
