Detailed Specifications

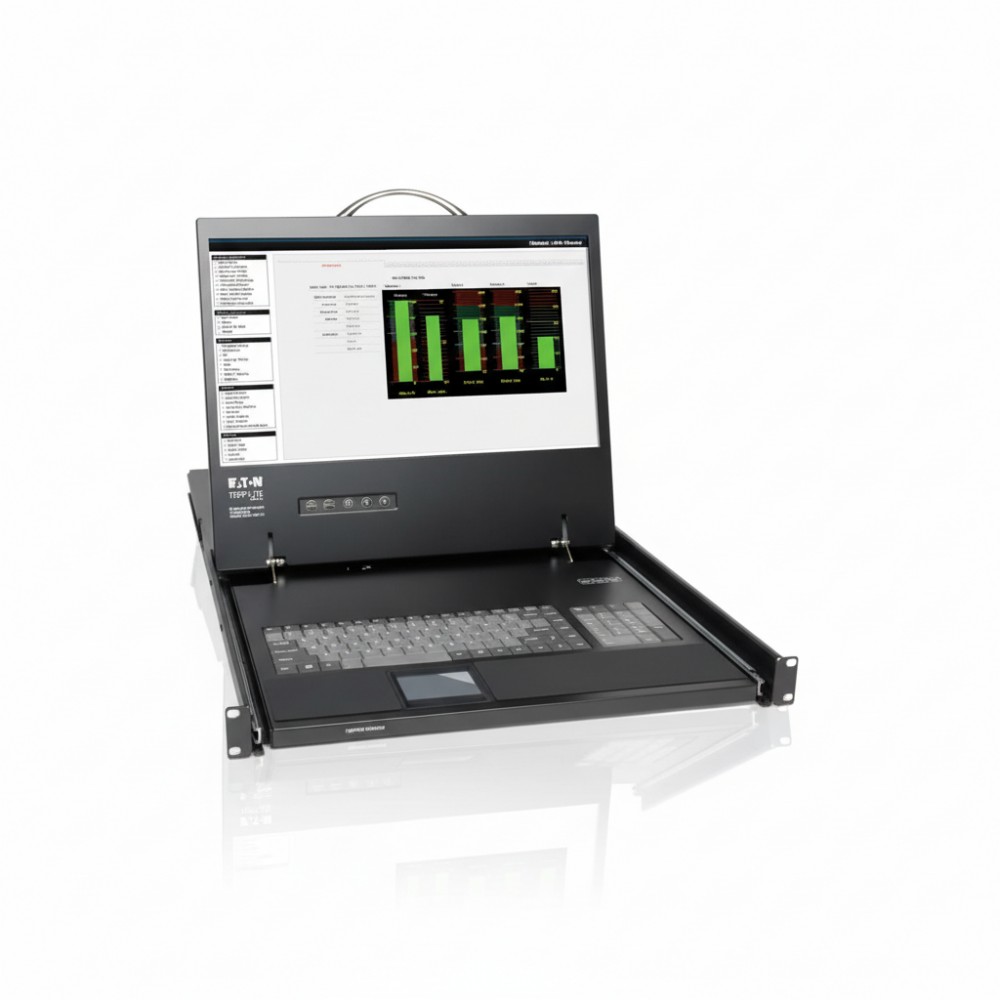

Eaton B021-000-19-HD - 1U Rack-Mount Console with 19″ LCD
Overview
The Eaton B021-000-19-HD is a 1U rack-mount console that integrates a 19-inch LCD display, full-size keyboard, and touchpad into a single sliding drawer. Designed for IT environments where space is limited, it provides convenient local access to servers or KVM switches within standard 19-inch racks. The unit supports both DVI and VGA video input through its DVI-I port, making it compatible with a wide range of systems. A built-in USB pass-through port allows easy connection of flash drives or CAC readers. Compact, durable, and easy to install, this console is ideal for server rooms, network closets, and data centers requiring an all-in-one rack console solution.
Key Features
19″ LCD screen with 1366 × 768 resolution for clear on-rack server management.
1U sliding rack-mount drawer integrates display, keyboard, and touchpad.
DVI-I interface supports both DVI-D and VGA connections using adapter.
Front USB 2.0 pass-through for flash drives or CAC card readers.
Fits 19″ racks with 27″-42″ mounting depths; folds flat when not in use.
Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | B021-000-19-HD |
| Product Type | 1U Rack-Mount LCD Console |
| LCD Size | 19 inches |
| Video Input | DVI-I (supports DVI-D and VGA) |
| Max Video Resolution | 1366 × 768 @ 60 Hz |
| Keyboard & Touchpad | 88-key keyboard with integrated touchpad |
| USB Pass-Through | Yes, USB 2.0 front port |
| Rack Height | 1U (1.7 inches) |
| Supported Rack Depth | 27-42 inches |
| Power Consumption | 30 W (active) / 5 W (standby) |
| Material | Heavy-duty steel chassis |
| Dimensions (H × W × D) | 1.70 in × 18.78 in × 27.30 in |
| Weight | 27.6 lbs |
| Operating Temperature | 0 °C - 40 °C (32 °F - 104 °F) |
