Overview

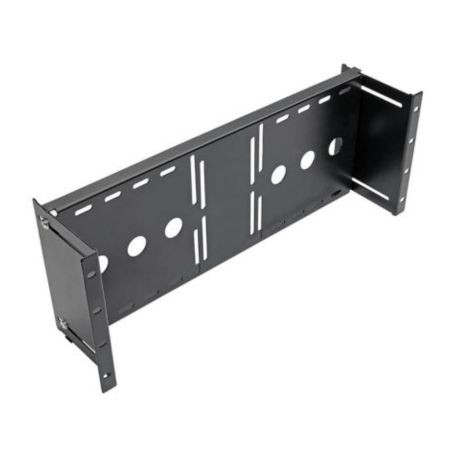

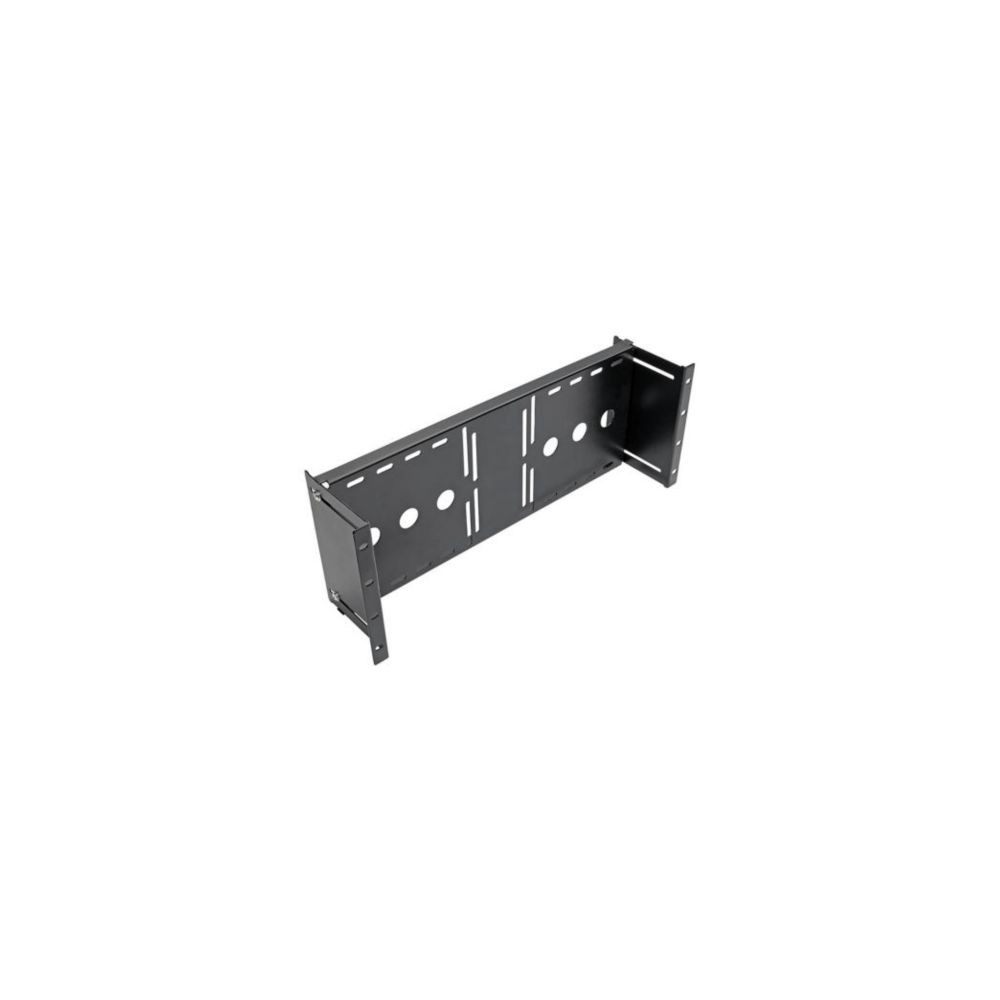

The Tripp Lite SRLCDMOUNT is a 4U rack-mount bracket for installing a compatible flat-panel LCD monitor or touch-screen display in a standard 19-inch open-frame rack or floor-standing rack enclosure. The mounting plate supports several VESA patterns and uses a cold-rolled steel construction for rack-mounted display applications.
Display Compatibility
The SRLCDMOUNT supports LCD displays with 75 x 75 mm, 100 x 100 mm, or 100 x 150 mm VESA mounting patterns. It supports displays up to 17 inches when installed inside a rack with doors. When the bracket is reversed for an outward-facing installation without rack doors, it supports displays up to 19 inches.
Rack Installation
The bracket is designed for standard 19-inch EIA-compliant open-frame racks and floor rack enclosures. It occupies 4U of rack space and includes adjustable-depth rack brackets to accommodate the installation configuration.
Construction and Mounting Hardware
The SRLCDMOUNT uses durable cold-rolled steel with a black finish. The package includes the LCD mounting plate, two rack brackets, rack screws, washers, cage nuts, and an installation guide for assembling the bracket and securing the display to the rack.
Key Features
- 4U rack-mount design for compatible LCD monitors and touch-screen displays
- Supports 75 x 75, 100 x 100, and 100 x 150 mm VESA patterns
- Compatible with standard 19-inch EIA-compliant open-frame and floor racks
- Supports displays up to 17 inches inside racks and up to 19 inches in outward-facing installations
- Cold-rolled steel construction with included rack-mounting hardware
Applications
- Server-room rack monitoring displays
- Network and equipment rack console displays
- Touch-screen control displays mounted to rack equipment
- 19-inch floor rack enclosures
- Open-frame rack installations requiring a fixed LCD display mount
DC Supplies Product Note
Check the monitor's VESA mounting pattern and installation orientation before ordering. The SRLCDMOUNT supports three specified VESA patterns, while the maximum display size depends on whether the bracket is installed inside a rack with doors or reversed for an outward-facing installation.
Specifications
| Specification | Details |
|---|
| Brand | Tripp Lite |
| Part Number / MPN | SRLCDMOUNT |
| Product Type | LCD Monitor Rack-Mount Bracket |
| Series | SmartRack |
| Accessory Class | Rack Accessories |
| Accessory Type | Mounting Bracket |
| Rack Height | 4U |
| Rack Compatibility | Standard 19-inch EIA-compliant open-frame and floor racks |
| Display Compatibility | LCD monitor / HDTV / touch-screen monitor |
| VESA Patterns | 75 x 75 mm, 100 x 100 mm, 100 x 150 mm |
| Maximum Display Size | 17 inches inside rack; 19 inches outward-facing without doors |
| Maximum Weight Capacity | 44 lb (20 kg) |
| Stationary Weight Capacity | 40 lb |
| Material | Cold-rolled steel |
| Finish / Color | Black |
| Product Length / Depth | 6.73 in. |
| Product Height | 4.53 in. |
| Product Width | 18.98 in. |
| Product Weight | 3.53 lb |
| Compliance | RoHS |
FAQs
What size monitor can the SRLCDMOUNT support?
It supports LCD displays up to 17 inches when installed inside a rack and up to 19 inches when the bracket is reversed for an outward-facing installation without doors.
Which VESA patterns are supported?
The bracket supports 75 x 75 mm, 100 x 100 mm, and 100 x 150 mm VESA mounting patterns.
How much rack space does the bracket use?
The SRLCDMOUNT occupies 4U of space in a standard 19-inch rack.
What is the maximum supported display weight?
Tripp Lite specifies a maximum weight capacity of 44 lb (20 kg), with a 40 lb stationary weight capacity listed in the product specifications.
Can the bracket be used with a touch-screen monitor?
Yes. The SRLCDMOUNT is specified for compatible LCD and touch-screen displays using one of its supported VESA mounting patterns.
What hardware is included?
The package includes the LCD mounting plate, two rack brackets, M6 x 16 screws, M6 cup washers, M6 cage nuts, M5 x 10 screws, M5 flat washers, and an installation guide.
