Detailed Specifications

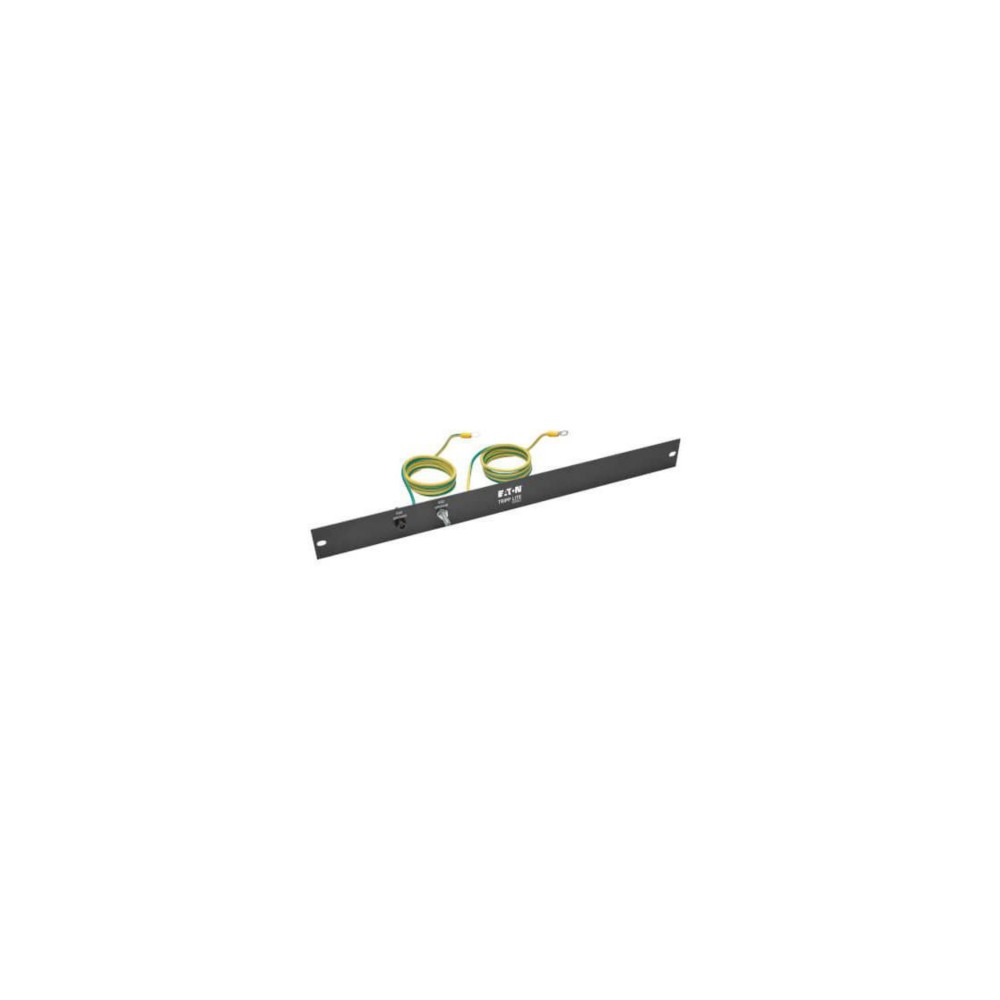

Eaton SRGROUNDPANELBC SmartRack 1U ESD Grounding Panel Compatible Brand Tripp Lite
Overview :
The Eaton SRGROUNDPANELBC is a SmartRack 1U ESD Grounding Panel designed to provide grounding contact for antistatic wrist straps and other ESD bands when working around rack-mounted equipment. Eaton identifies the product as an Eaton Tripp Lite series SmartRack grounding panel.
The panel mounts to EIA-standard 19-inch rack enclosures and open-frame racks and occupies 1U of rack space. It supports both banana-plug and alligator-clip ESD band connections and includes two 48-inch ground wires for connection to facility ground.
The unit is constructed for rack deployment and includes the required mounting hardware: two M6 screws, two M6 cage nuts and two M6 cup washers. It is intended for environments where electrostatic discharge could damage sensitive electronic equipment.
Key Features :
- SmartRack 1U ESD grounding panel
- Mounts to EIA-standard 19-inch racks
- Compatible with rack enclosures and open-frame racks
- Provides grounding for banana-plug ESD bands
- Provides grounding for alligator-clip ESD bands
- Includes two 48-inch ground wires
- Sturdy steel construction
- Includes all mounting hardware
- Designed for ESD protection when handling sensitive electronics
- RoHS compliant
- 5-year limited worldwide warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | SRGROUNDPANELBC |
| Product Type | SmartRack 1U ESD Grounding Panel |
| Rack Height | 1U |
| Rack Standard | EIA-standard 19-inch |
| Rack Compatibility | 2-post and 4-post racks |
| Ground Wire Length | 48 in. |
| ESD Connection | Banana Plug / Alligator Clip |
| Mounting | Rack enclosure / open-frame rack |
| Construction | Steel |
| Unit Height | 1.72 in. |
| Unit Width | 2 in. |
| Unit Depth | 19 in. |
| Unit Weight | 0.5 lb |
| Included Hardware | 2 × M6 screws, 2 × M6 cage nuts, 2 × M6 cup washers |
| Compliance | RoHS |
