Ubiquiti Networks U-Rack-6U-TL Toolless Mini Rack-6U-Sized Device Rack with 24-Port Blank PCH PNL

New

In Stock

Lightweight 6U Open‑Frame Rack with Rolling Casters
×




$299.00

  • New

Detailed Specifications

Ubiquiti U-Rack-6U-TL

Toolless Mini Rack with 24-Port Blank Patch Panel

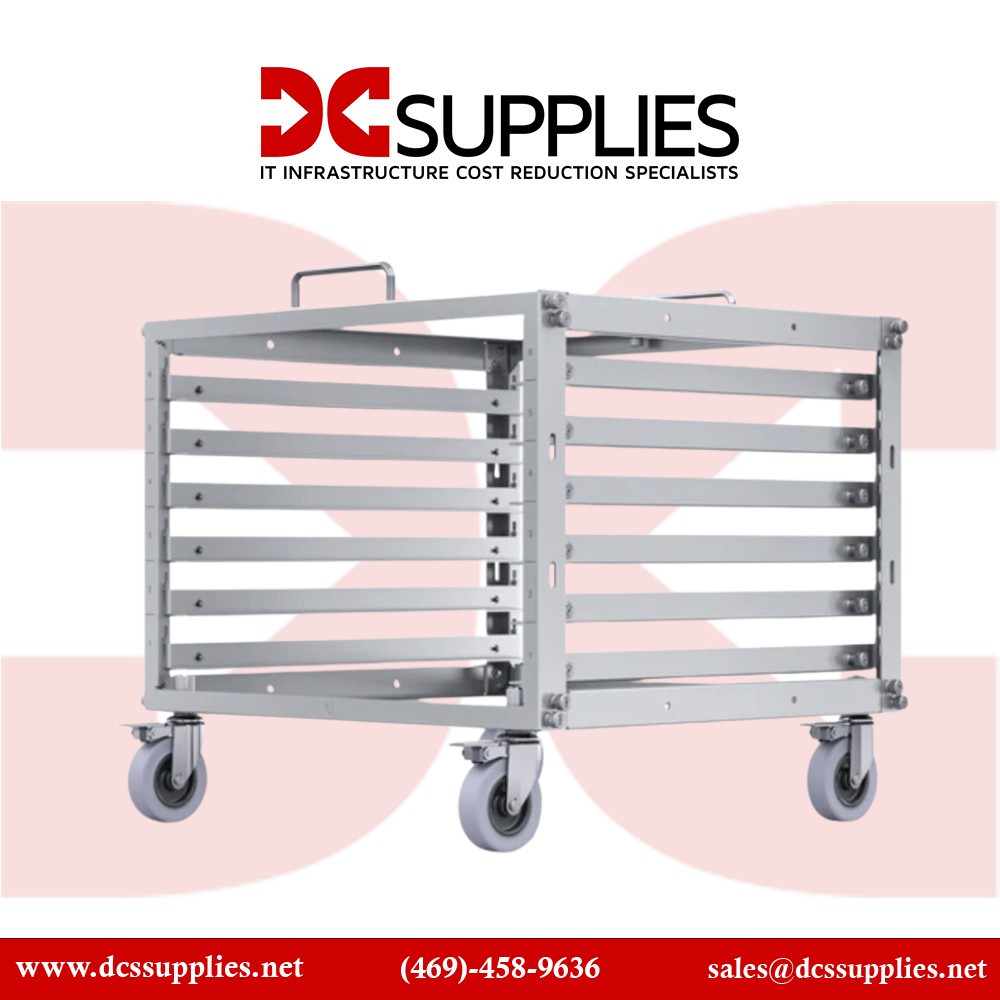

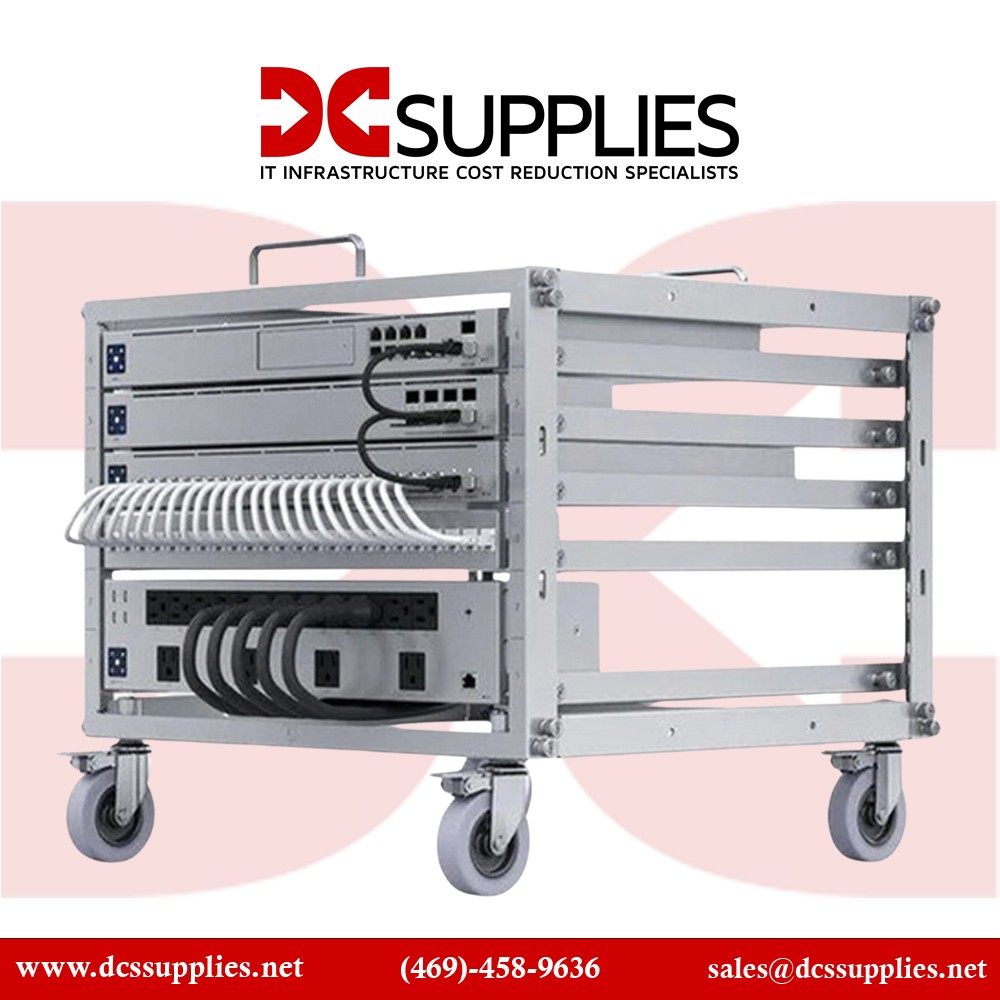

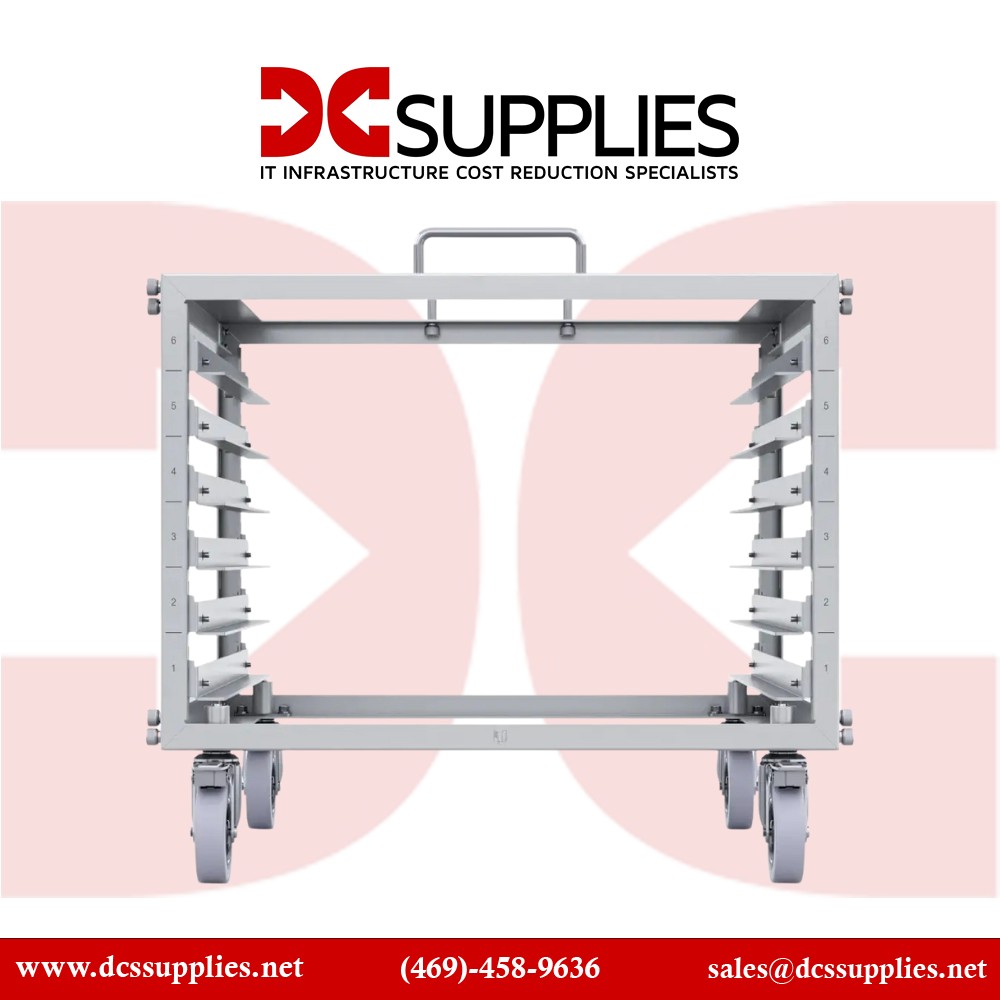

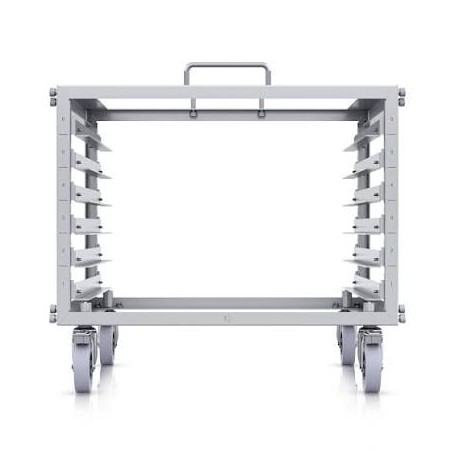

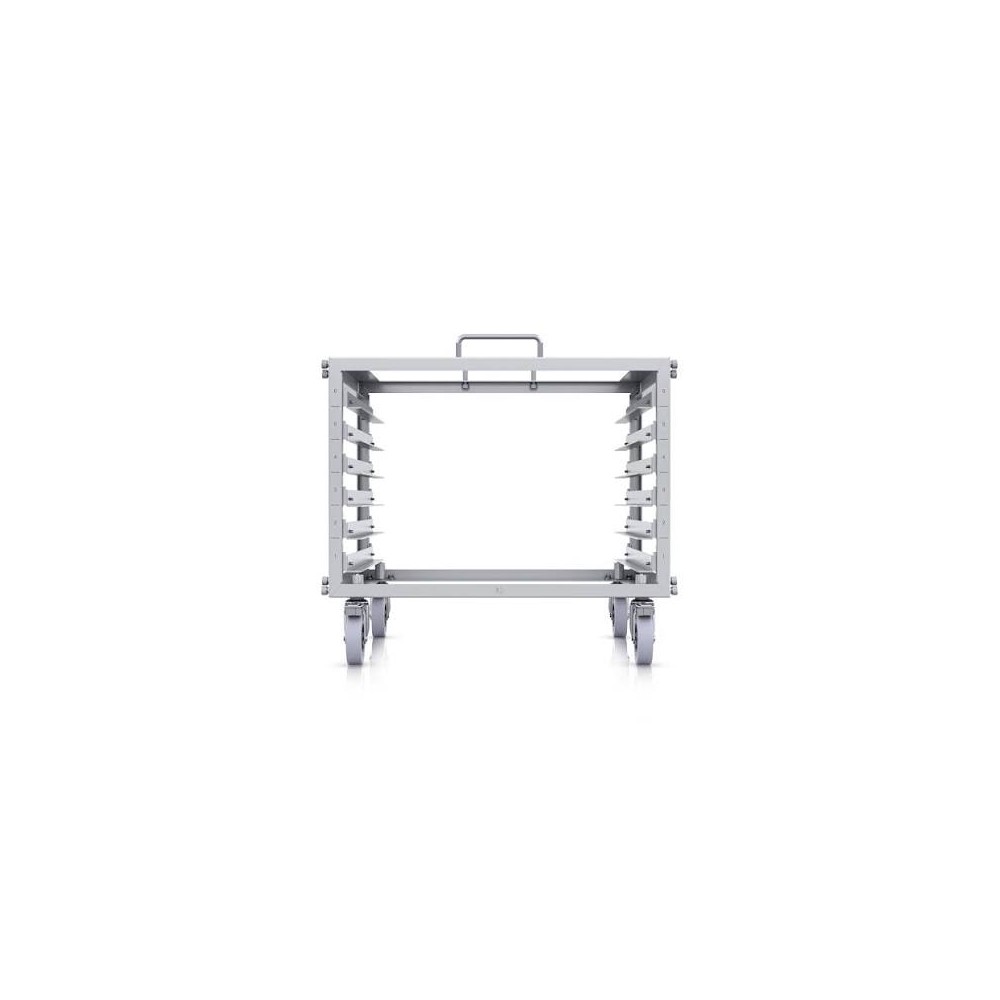

The Ubiquiti U-Rack-6U-TL Toolless Mini Rack is designed for rapid deployment and maneuverability within tight spaces like home offices, micro data rooms, and small IT closets. Featuring a 6U, 19-inch open-frame design, it accommodates standard rack-mounted equipment and enables speedy assembly without tools—perfect when fast setup or frequent relocation is required.

Features :

This 6U mini rack features toolless assembly for quick setup without requiring any screws or special tools. It includes a 24-port blank patch panel for pre-configuring or neatly passing through cabling. Built from durable SPCC steel with stainless steel handles, the rack provides reliable support for up to 77.16 lb (35 kg) of equipment while maintaining a compact footprint.

Advanced Options :

Equipped with lockable casters, this mini-rack can be effortlessly moved between rooms and securely locked in place when needed. Its stackable design supports expandability with optional stacking kits, allowing two units to combine into a 12U rack for growing network needs. The open-frame construction ensures excellent ventilation and easy access to equipment for maintenance and configuration.

Product Key Features

  • 6U 19″ open-frame mountable rack
  • Toolless assembly for quick setup
  • Includes 24‑port blank patch panel
  • Lockable casters for portability and stability
  • Built from SPCC steel with stainless steel handles
  • Compact and stackable design

Reliability & Performance :

Crafted with cold-rolled carbon steel (SPCC) and fitted with stainless steel handles, the U-Rack-6U-TL delivers exceptional durability and stability for network equipment. The lockable casters provide both mobility and security, allowing the rack to be repositioned as needed while remaining stable during operation. Its open-frame design promotes optimal airflow to prevent equipment overheating, while the toolless assembly ensures quick deployment and reconfiguration without specialized tools or expertise.

Key Features :

  • 6U 19″ open-frame construction
  • Toolless assembly and component mounting
  • 24-port blank patch panel included
  • Locking caster wheels for mobility and floor protection
  • Durable SPCC steel frame, stainless steel handles
  • Stackable and expandable via stacking kit

Specifications :

SpecificationDetails
Model Number U-Rack-6U-TL
Product Type 6U Toolless Mini Rack Frame with Patch Panel
Rack Height 6U (6 rack units)
Patch Panel 24‑port blank keystone panel
Material SPCC (cold-rolled carbon steel) frame; stainless steel handles
Max Weight Capacity 77.16 lb static (35 kg)
Caster Mobility Lockable wheels included
Assembly Toolless (quick, screw-free assembly)
Expandable Stackable with optional stacking kit (up to 12U)
Dimensions (with casters & handle) 519 × 460 × 485 mm (20.43″ × 18.11″ × 19.09″)
Dimensions (without casters & handle) 519 × 460 × 351 mm (20.43″ × 18.11″ × 13.82″)
Weight ≈22.7 lb (10.3 kg)
Rack Type Open-frame, 19″ equipment compatibility
Country of Origin China
