Detailed Specifications

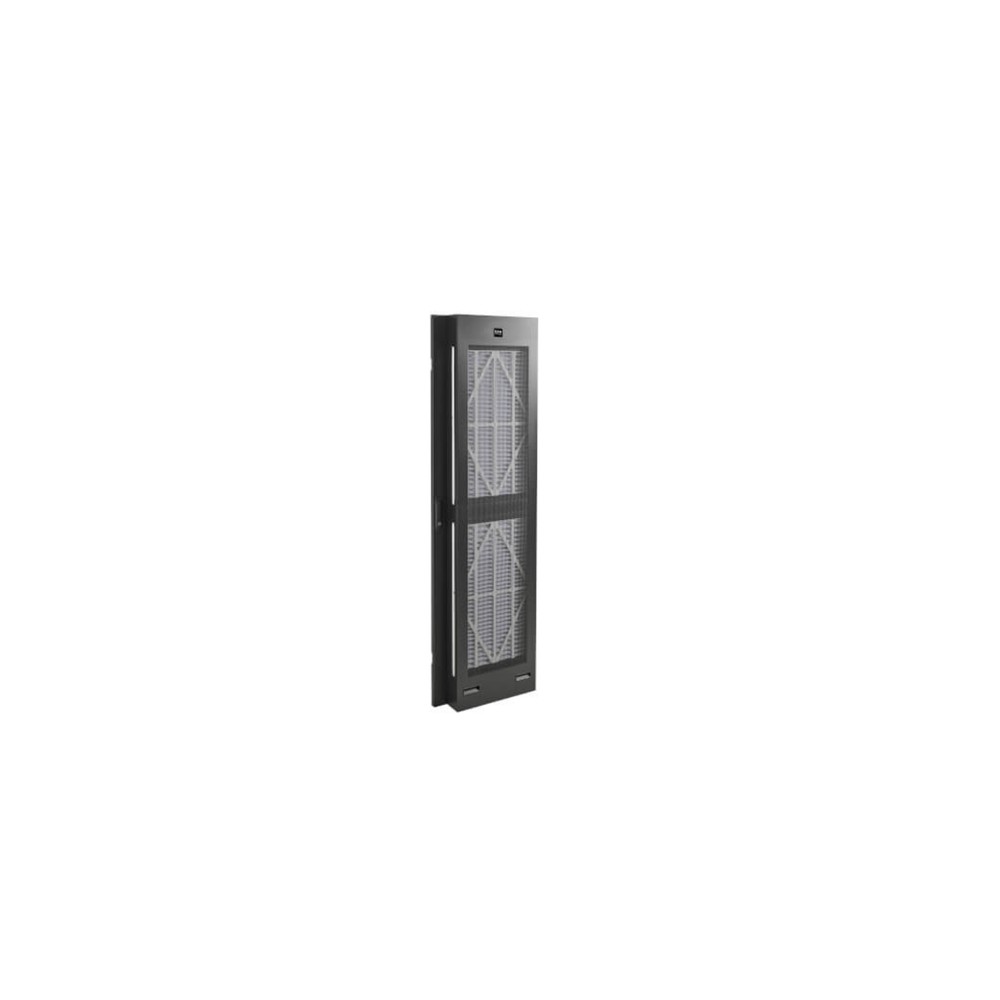

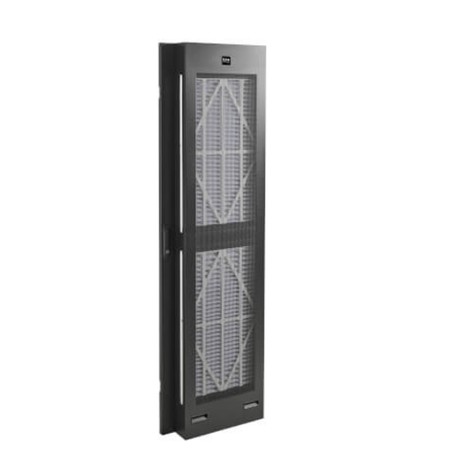

Eaton SRFFD4224 Rack Fan Front Door
Overview
The Eaton SRFFD4224 is a SmartRack fan-integrated front door kit designed for standard-width 42U rack enclosures used in enterprise IT rooms, colocation facilities, and edge infrastructure deployments. It combines enclosure airflow enhancement and intake air filtration into a single front-door assembly for high-density rack environments.
The unit includes three fan panels with four 120V fans per panel for a total of 12 integrated cooling fans. Each fan delivers up to 93 CFM at 60 Hz to improve front-to-rear airflow across servers, switches, storage arrays, and other rack-mounted equipment. Integrated dust filters help reduce airborne contaminants entering the enclosure.
The SRFFD4224 is engineered specifically for Eaton SmartRack standard-width 42U enclosures and installs using included toolless mounting hardware. Heavy-duty cold-rolled steel construction supports continuous operation in commercial and data-center environments. Standard NEMA 5-15P power connections simplify integration with existing PDUs and UPS systems.
This model is suitable for deployments requiring increased rack airflow without dedicated in-row cooling systems. It is not intended for wide-rack cabinets or installations requiring intelligent thermal monitoring and variable-speed fan management.
Key Features
- Integrated 12-fan cooling door assembly
- Supports standard-width 42U rack enclosures
- Dust filters improve rack air intake quality
- Toolless mounting speeds installation work
- Heavy-duty steel design for IT deployments
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | SRFFD4224 |
| Product Type | Rack Fan Front Door Kit |
| Product Line | SmartRack |
| Rack Compatibility | Standard-Width 42U Rack Enclosures |
| Rack Height | 42U |
| Total Fans | 12 |
| Fan Configuration | 3 Panels with 4 Fans Each |
| Fan Voltage | 120V AC |
| Maximum Airflow | 93 CFM per fan at 60 Hz |
| Frequency | 50/60 Hz |
| Plug Type | NEMA 5-15P |
| Cable Length | 6 ft |
| Material | Cold-Rolled Steel |
| Color | Black |
