Detailed Specifications

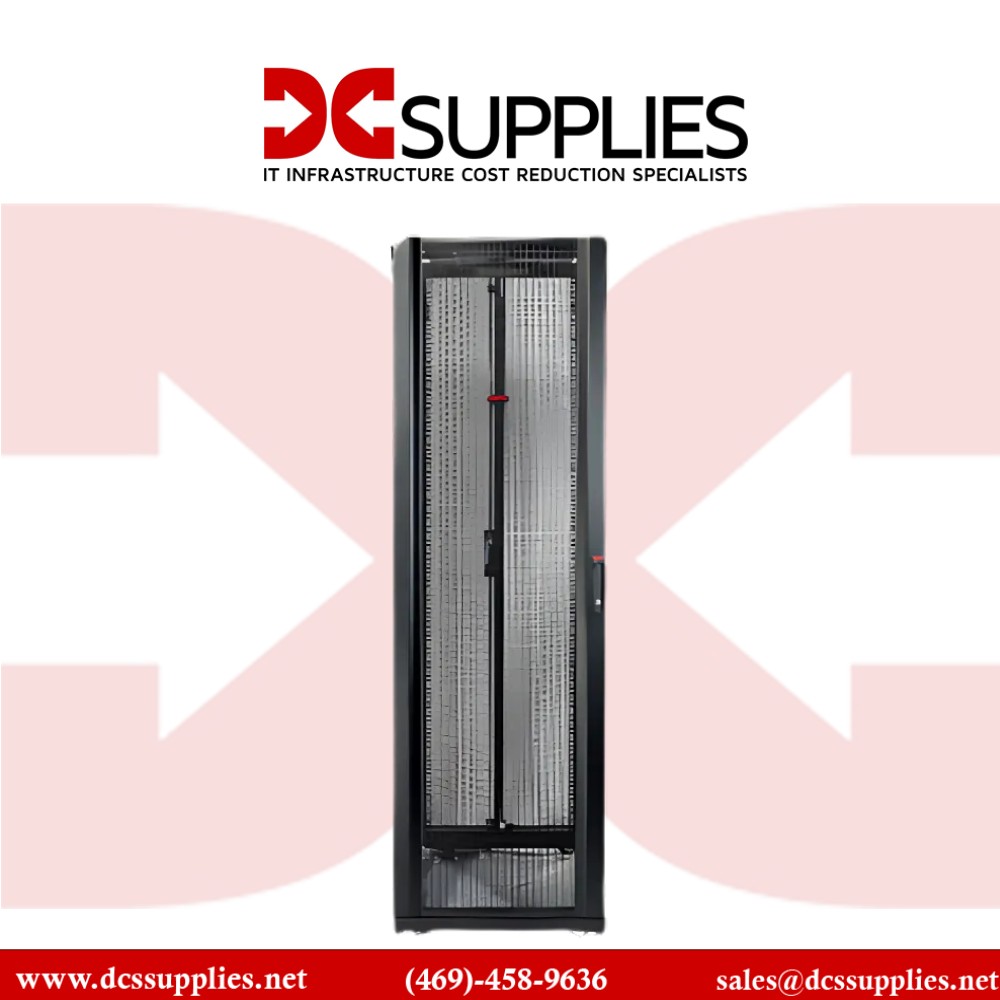

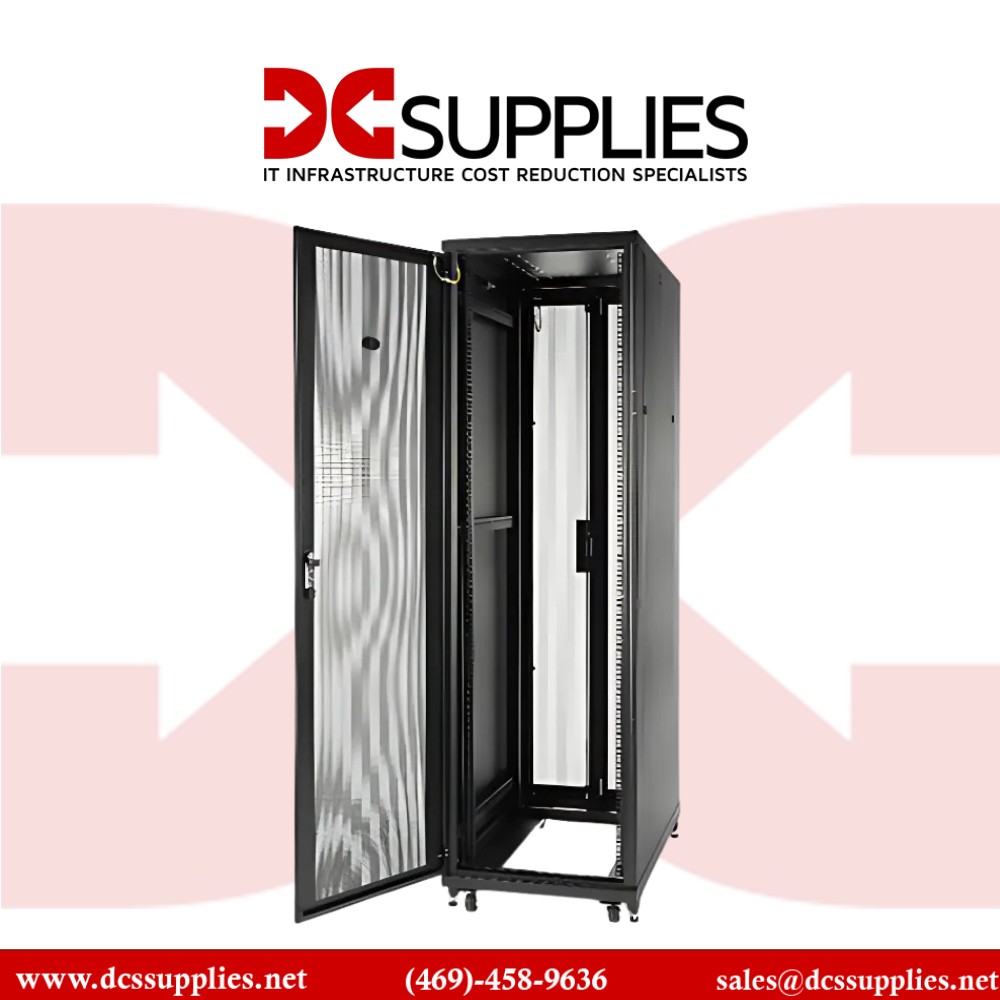

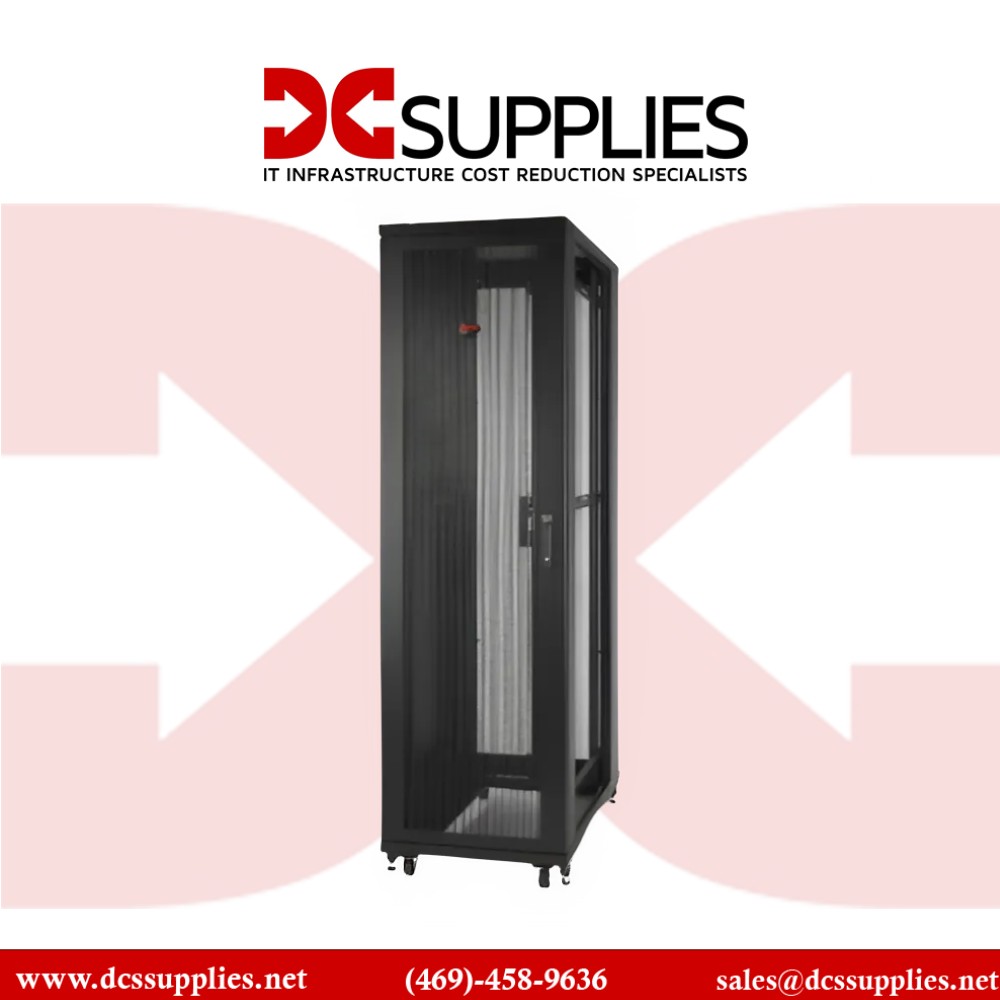

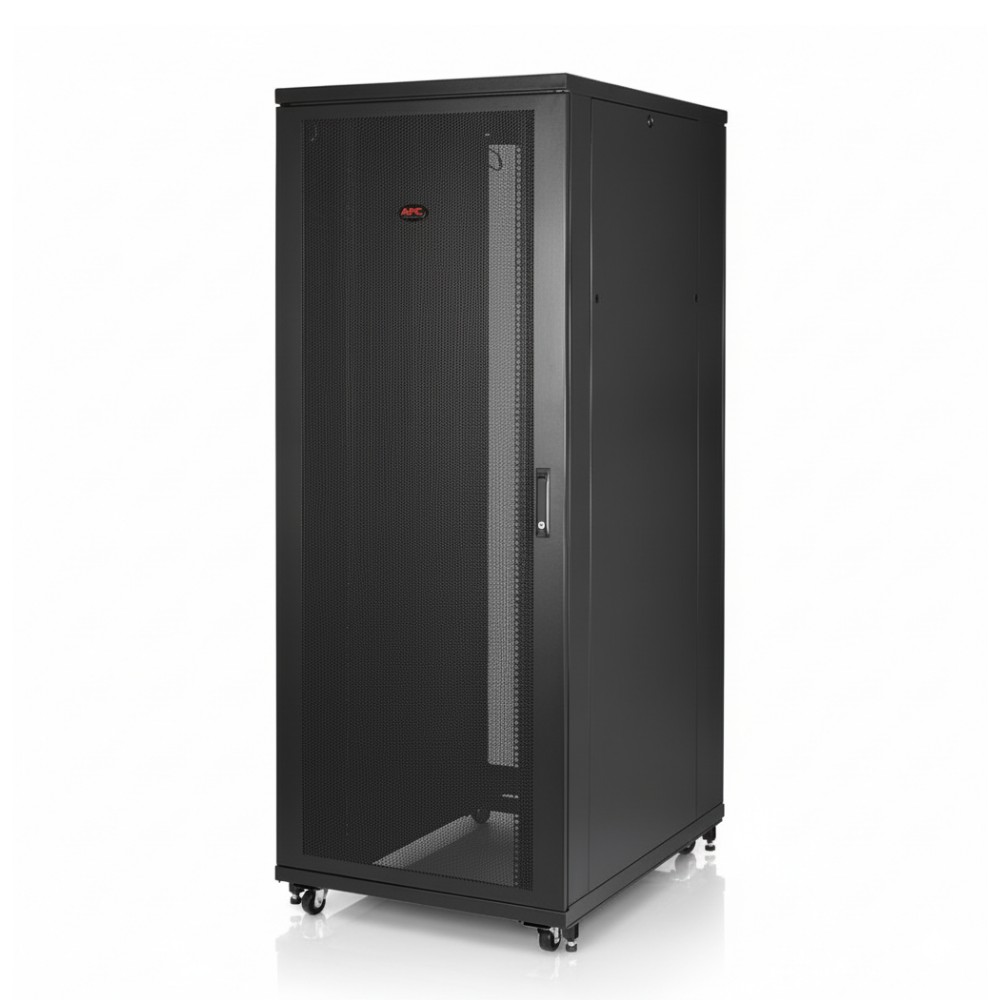

APC AR2507 - NetShelter SV 48U Rack Enclosure
Overview :
The APC AR2507 is a 48U freestanding rack enclosure designed for low to medium-density server and networking applications. It features a compact 600mm width and a 1200mm depth, optimizing data center space while providing ample equipment clearance. This enclosure is suitable for environments requiring additional equipment space and ease of access, fitting seamlessly into branch offices, data centers, or edge deployments.
Key Features :
48U capacity for high-density equipment
600mm width and 1200mm depth for space optimization
Pre-installed casters for mobility
Keyed-alike doors and side panels for security
Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | AR2507 |
| Product Type | Freestanding Rack |
| Rack Units | 48U |
| Height | 91.50 in (232.4 cm) |
| Width | 23.62 in (60 cm) |
| Depth | 47.24 in (120 cm) |
| Net Weight | 289.2 lb (131.2 kg) |
| Mounting Depth (Min) | 6.6 cm |
| Mounting Depth (Max) | 36.1 cm |
| Rack Width | 19 in |
| Material Thickness | 14 gauge (mounting rails), 16 gauge (front/rear doors), 18 gauge (posts), 19 gauge (roof), 18 gauge (side panels) |
| Permanent Load Capacity | 1014 lb (459.9 kg) dynamic, 2205 lb (1000.2 kg) static |
| Certifications | UL 2416, UL 60950-1, EIA-310E, RoHS Compliant |
