Overview

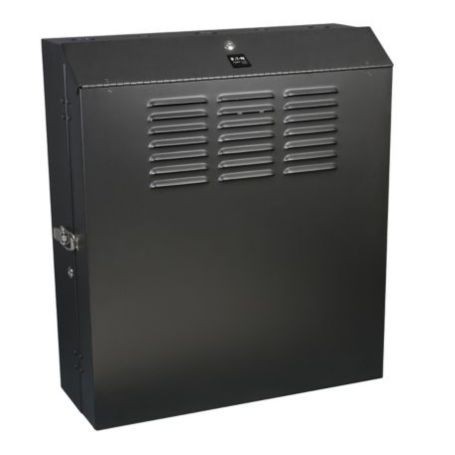

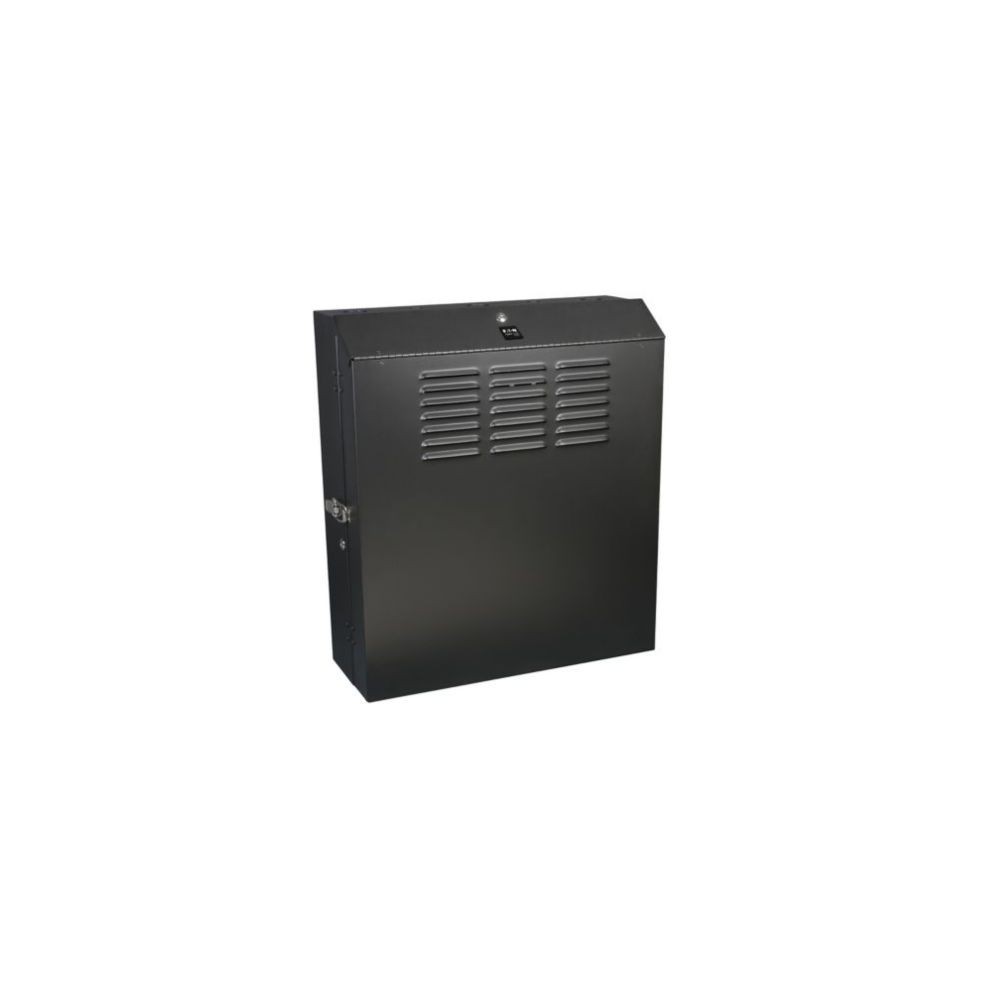

The Tripp Lite SRWF5U SmartRack is a low-profile wall-mount rack enclosure designed to secure standard 19-inch rack equipment where floor space is limited. Its vertical mounting design accommodates up to 5U of rack equipment with installation depths up to 20 inches, while an additional slide-out bracket provides up to 2U for patch panels.
Rack Equipment Compatibility
The adjustable horizontal mounting rails support standard 19-inch EIA rack equipment and can be configured for M6 or 12-24 threaded mounting hardware. The enclosure provides up to 20 inches of equipment mounting depth, making it suitable for network switches, patch panels, and other rackmount devices within the specified dimensions.
Wall Mounting and Access
The cabinet is designed for vertical wall mounting and includes multiple wall-mounting slots. Cable access openings at the top and bottom help route connections into the enclosure. The front door is reversible for left- or right-side opening and locks to help secure installed equipment.
Ventilation and Construction
The SRWF5U uses a steel enclosure with ventilation openings designed to promote airflow around installed equipment. The top panel and front door are lockable, while the enclosure's compact profile keeps rack equipment off the floor and organized against the wall.
Key Features
- 5U of standard 19-inch rack equipment space
- Supports equipment up to 20 inches deep
- Additional slide-out bracket provides up to 2U for patch panels
- Reversible locking front door and locking top panel
- Adjustable mounting rails supporting M6 or 12-24 rack hardware
Applications
The SRWF5U can be used in network closets, back offices, classrooms, retail locations, and other installations requiring secure rack equipment without using floor-standing rack space. Its vertical wall-mount configuration is suited to compact network and telecommunications deployments.
DC Supplies Product Note
When planning an installation, account for both the equipment depth and the enclosure's 20-inch maximum mounting depth. The additional 2U patch-panel bracket is useful for organizing patching separately from the primary 5U equipment area.
Specifications
| Specification | Details |
|---|
| Brand | Tripp Lite |
| Part Number / MPN | SRWF5U |
| Product Type | Wall-Mount Rack Enclosure Cabinet |
| Product Line | SmartRack |
| Rack Height | 5U |
| Rack Width | 19 inches |
| Additional Patch Panel Capacity | Up to 2U |
| Maximum Equipment Mounting Depth | 20 inches (508 mm) |
| Maximum Load Rating | 150 lb (68 kg) |
| Mounting Type | Vertical wall mount |
| Mounting Rail Threading | M6 or 12-24 |
| Door | Lockable, reversible |
| Top Panel | Lockable |
| Ventilation | Ventilated front door and bottom panels |
| Construction | Steel |
| Color | Black |
| Unit Dimensions (H x W x D) | 28.8 x 25.6 x 9.7 inches (731.5 x 650.2 x 245.4 mm) |
| Unit Weight | 29 lb (13 kg) |
| Standards / Compliance | EIA-310-E, NOM, RoHS, PCI-DSS |
| Package Contents | SRWF5U enclosure, 12 M6 screws, 12 M6 cup washers, 12 12-24 screws, 2 keys, owner’s manual |
FAQs
How many rack units does the SRWF5U provide?
The primary equipment area provides 5U of standard 19-inch rack space. A separate slide-out bracket provides up to an additional 2U for patch panels.
What equipment depth can the SRWF5U accommodate?
The enclosure supports rack equipment with a maximum mounting depth of 20 inches.
Does the SRWF5U support both M6 and 12-24 rack hardware?
Yes. Its adjustable rack rails support M6 mounting, and the rails can be reversed for 12-24 threaded mounting.
Is the front door reversible?
Yes. The front door can be configured to open from either the left or right side and includes a lock.
What is included with the SRWF5U?
The package includes the enclosure, M6 screws, M6 cup washers, 12-24 screws, two keys, and the owner's manual.
