Overview

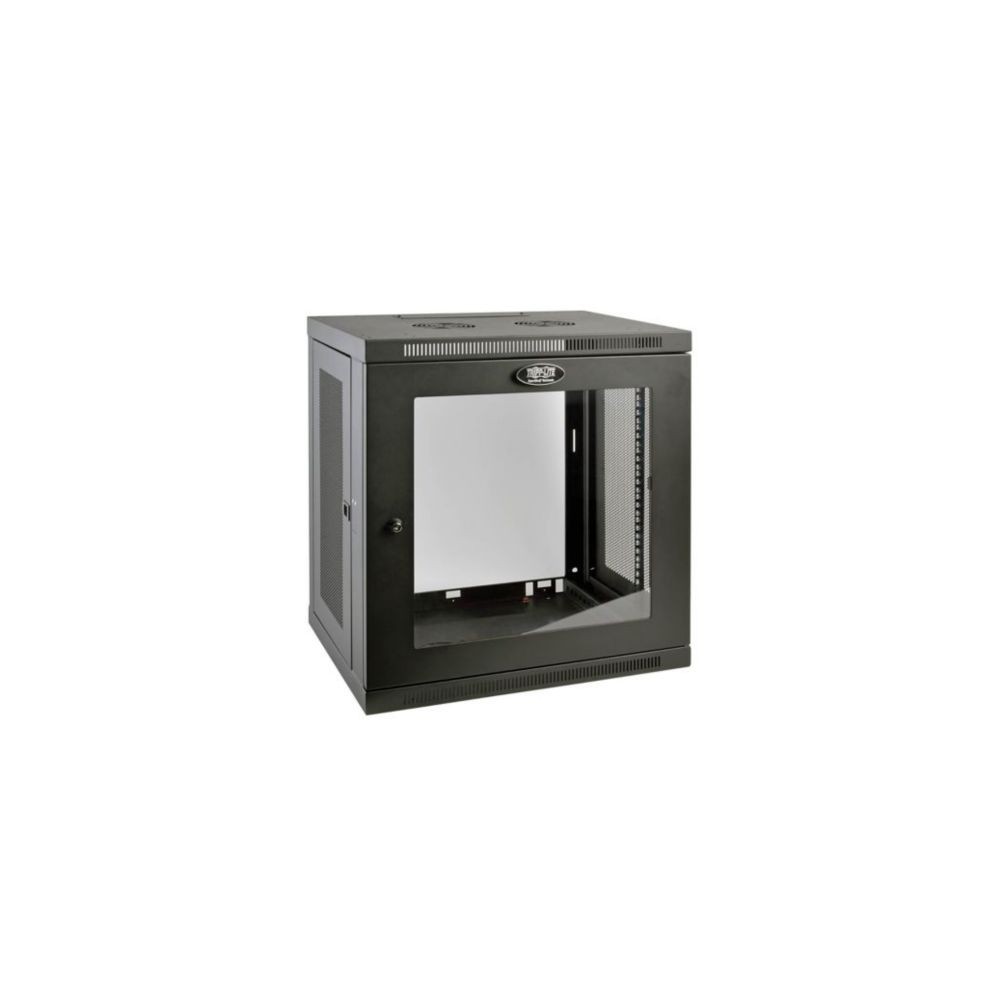

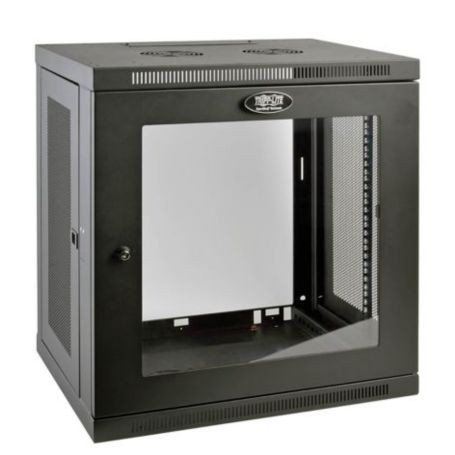

The Eaton Tripp Lite SRW12UG SmartRack is a 12U low-profile switch-depth wall-mount rack enclosure designed to secure and organize EIA-standard 19-inch rack equipment where floor space is limited. The steel cabinet includes a clear acrylic front window, locking access panels, adjustable mounting rails, ventilation, and top and bottom cable-routing access.
Technical Information
The cabinet provides 12U of equipment space for rack devices up to 16.5 inches deep. Its two adjustable vertical mounting rails support both square cage-nut mounting and 12-24 threaded-hole mounting. The rails adjust in 7/8-inch increments to accommodate different equipment depths.
Compatibility
The SRW12UG is designed for EIA-standard 19-inch rack equipment such as network switches, patch panels, and other compatible rack-mounted devices. The enclosure supports equipment up to 16.5 inches deep and provides 12U of vertical rack space. It can be wall mounted using the included mounting plate; the optional SRCASTER kit can be used for floor-standing mobility.
Key Features
- 12U low-profile wall-mount rack enclosure
- 200 lb (90.7 kg) maximum load capacity
- Clear shatter-resistant acrylic locking front window
- Adjustable mounting rails with square and 12-24 mounting options
- Vented cabinet panels with top and bottom cable access
Applications
- Network wiring closets
- Retail locations and back offices
- Classrooms and small IT rooms
- Wall-mounted network switch and patch-panel installations
- Installations requiring secure rack equipment with limited floor space
DC Supplies Product Note
The SRW12UG combines a 12U rack space with a shallow 16.5-inch equipment depth, making it suitable for switch-depth equipment rather than deeper server hardware. The reversible front door can be configured to open from either side by rotating the cabinet 180 degrees before mounting.
SpecificationsPackage Contents
- SRW12UG SmartRack 12U Wall-Mount Rack Enclosure Cabinet
- 20 M6 mounting screws
- 20 M6 cage nuts
- 20 M6 cup washers
- 20 12-24 mounting screws
- Removable mounting plate
- 3 mounting plate screws
- 2 keys
- Owner's manual
FAQs
How many rack units does the SRW12UG provide?
The enclosure provides 12U of rack space for standard 19-inch equipment.
What is the maximum equipment depth?
The adjustable mounting rails accommodate equipment up to 16.5 inches deep.
What is the maximum load capacity?
The maximum rated load is 200 lb (90.7 kg), including the cabinet and installed equipment.
Does the front door have a window?
Yes. The locking front door has a clear, shatter-resistant acrylic window for viewing installed equipment without opening the enclosure.
Can the front door be reversed?
Yes. The cabinet can be rotated 180 degrees before mounting so the front door can open from the opposite side.
Does it support ventilation fans?
Yes. Four ventilation fan ports are provided for the optional SRFANWM fan kit.
