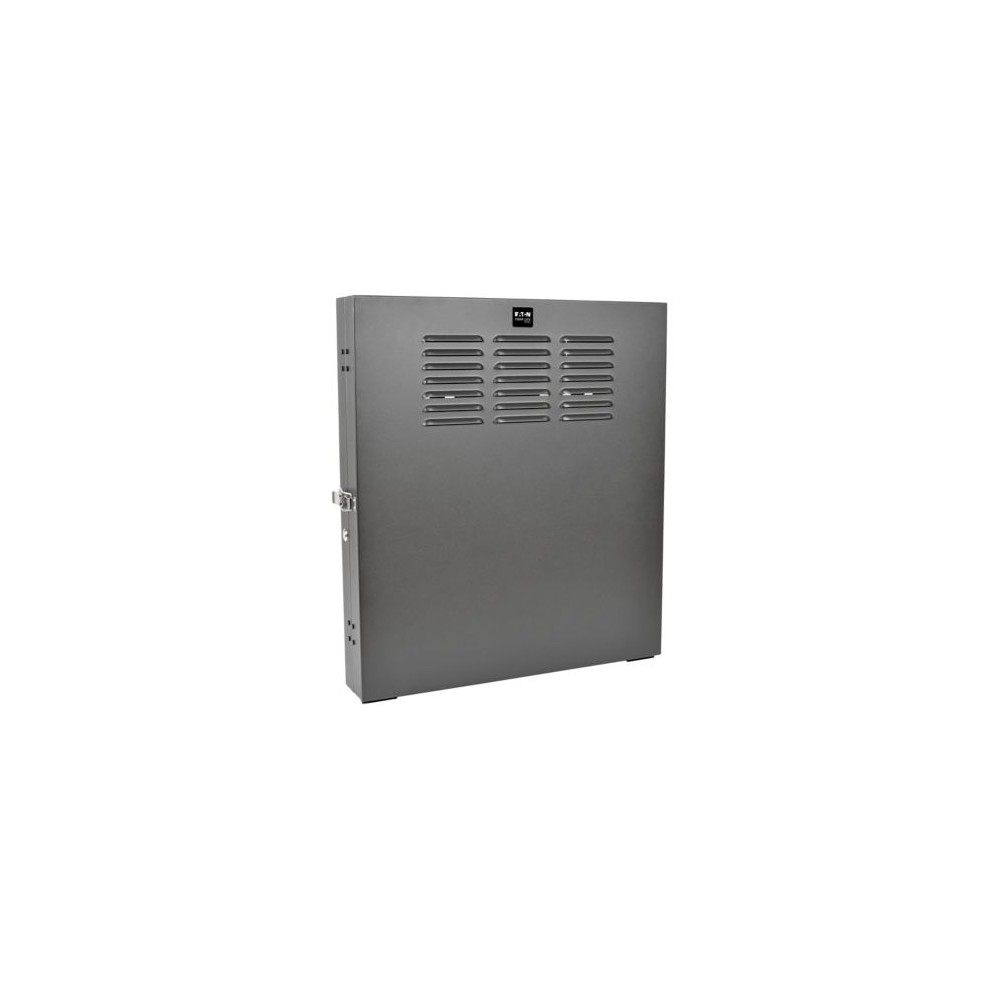

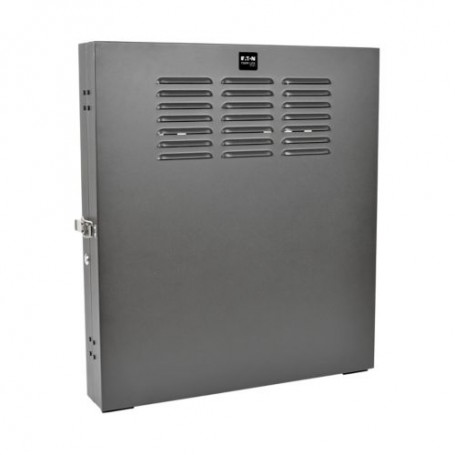

Eaton Tripp Lite SRWF2U SmartRack 2U Wall-Mount Rack Enclosure
The Eaton Tripp Lite SRWF2U SmartRack is a low-profile, vertical-mount wall enclosure designed to secure and organize EIA-standard 19-inch rack equipment in locations where floor space is limited. The cabinet provides 2U of primary rack space for equipment up to 20 inches deep and extends less than 5 inches from the wall.
Rack Capacity and Construction
The SRWF2U is constructed from heavy-duty steel with a black finish and has a maximum static load capacity of 150 pounds (68 kg). Its locking cabinet is vented to allow airflow around installed equipment. A slide-out 1U mounting bracket provides additional space for patch panels up to 2.5 inches deep.
Mounting and Cable Management
The cabinet is designed for vertical wall mounting and ships fully assembled. Threaded mounting holes support both M6 and 12-24 rack hardware. Top and bottom cable-routing ports provide access for network and power cabling while the built-in cable-management design helps organize connected equipment.
Door and Equipment Access
The front door locks to help restrict access to installed equipment and can be reversed to open from either the left or right side. The enclosure is intended for network switches, patch panels and other compatible 19-inch rack equipment that meets the specified depth and load limits.
Key Features
- 2U primary rack capacity for 19-inch EIA-standard equipment
- Supports equipment up to 20 inches deep
- Low-profile vertical design extends less than 5 inches from the wall
- 150 lb. (68 kg) maximum static load capacity
- Locking, vented steel cabinet with reversible front door
Applications
- Network wiring closets with limited floor space
- Small-office and back-office network installations
- Retail and commercial network equipment deployments
- Classrooms and other locations requiring secure wall-mounted equipment
- Wall-mounted installation of network switches and patch panels
DC Supplies Product Note
The SRWF2U is specifically designed for shallow, switch-depth installations: the cabinet itself has a low-profile 4.5-inch depth while accommodating rack equipment up to 20 inches deep when mounted vertically.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | SRWF2U |
| Product Type | Rack Enclosure |
| Series | SmartRack |
| Rack Height | 2U |
| Rack Width | 19 in. |
| Maximum Device Depth | 20 in. |
| Mounting Type | Vertical wall mount |
| Maximum Static Load | 150 lb. (68 kg) |
| Construction | Steel |
| Color | Black |
| Front Door | Locking, reversible left/right opening |
| Ventilation | Vented cabinet |
| Primary Mounting Rails | 2 vertical rails |
| Additional Mounting Space | 1U slide-out bracket for patch panels up to 2.5 in. deep |
| Rack Hardware Support | M6 and 12-24 |
| Cable Management | Built-in cable management |
| Cable Routing | Top and bottom ports |
| Product Dimensions | 28.8 x 25.6 x 4.5 in. (H x W x D) |
| Product Weight | 48 lb. |
| Compliance | EIA-310-E, RoHS |
| Warranty | 5-year limited warranty |
Frequently Asked Questions
How much rack equipment can the SRWF2U hold?
The primary mounting area provides 2U of rack space for 19-inch equipment. An additional 1U slide-out bracket is provided for compatible patch panels.
How deep can equipment installed in the SRWF2U be?
The cabinet accommodates compatible rack equipment up to 20 inches deep.
What is the load capacity of the SRWF2U?
The maximum static load capacity is 150 pounds (68 kg).
Does the SRWF2U have a locking door?
Yes. The front door locks and can be reversed to open from either the left or right side.
What rack mounting hardware does it support?
The enclosure supports M6 and 12-24 mounting hardware.
Does the cabinet provide ventilation?
Yes. The steel cabinet is vented to allow airflow around installed equipment.
