Detailed Specifications

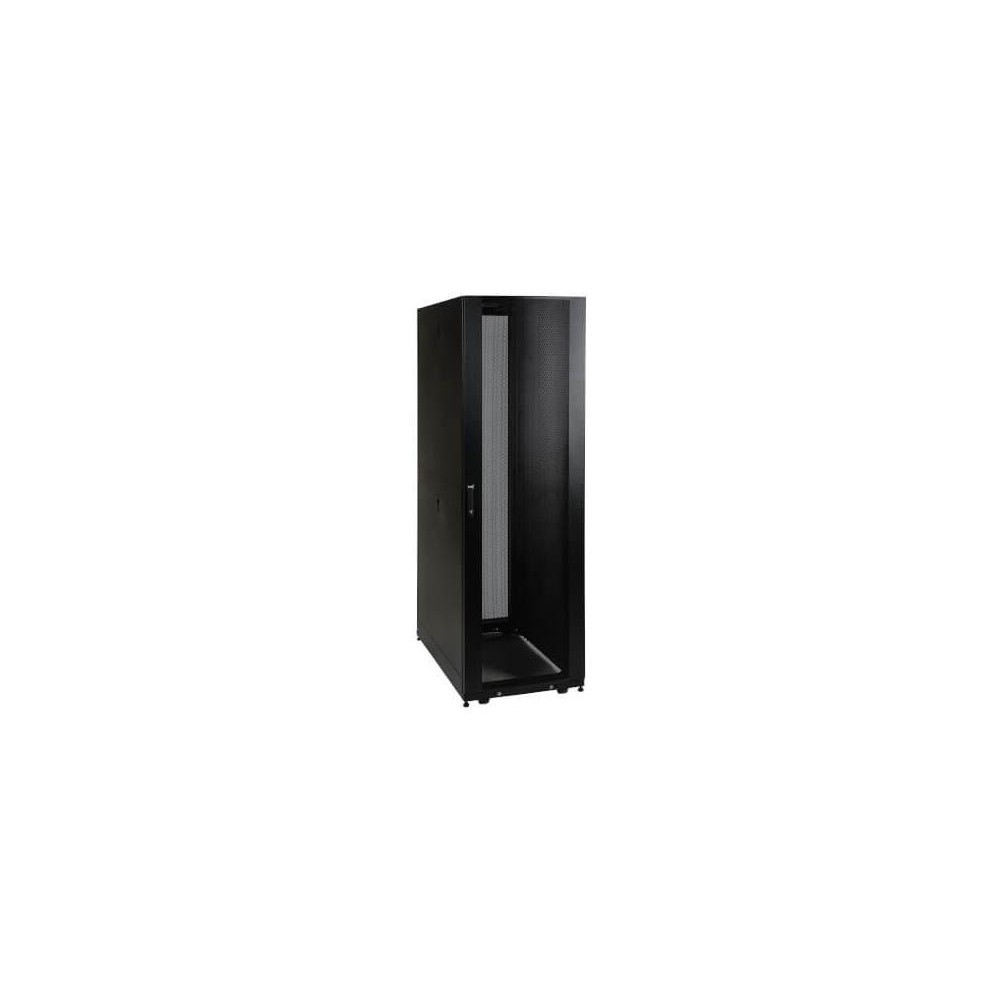

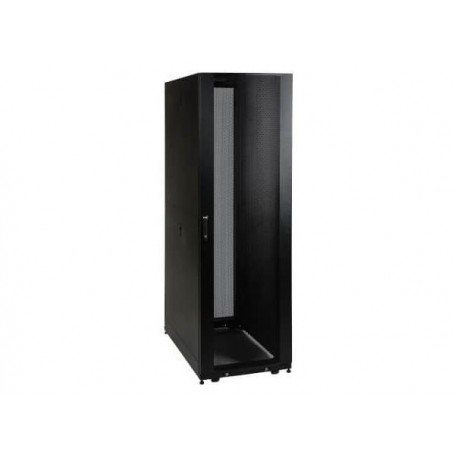

Eaton SR45UBSD 45U SmartRack Shallow-Depth Rack Enclosure Compatible Tripp Lite
Overview
The Eaton SR45UBSD is a 45U SmartRack shallow-depth enclosure designed for standard 19-inch rack equipment, especially shallow-depth A/V equipment and installations where floor space is limited. It features locking, removable and reversible front and rear doors, removable side panels, four vertical mounting rails, built-in cable management, pre-installed casters, and leveling feet. The cabinet provides a 32-inch overall depth with adjustable mounting depth from 4 to 27 inches.
Key Features
- 45U rack height for standard 19-inch equipment
- Shallow 32-inch (825 mm) cabinet depth
- Adjustable mounting depth from 4 to 27 inches
- Locking, removable, reversible front and rear doors
- Removable locking side panels
- Four vertical mounting rails with square mounting holes
- Pre-installed casters and leveling feet
- Built-in cable management for organized installations
- Supports up to 3,500 lb. stationary and 2,250 lb. rolling load
Specifications
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | SR45UBSD |
| Product Type | Rack Enclosure Cabinet |
| Rack Height | 45U |
| Rack Width | 19 in. equipment mounting |
| Cabinet Depth | 32 in. (825 mm) |
| Mounting Depth | 4–27 in. |
| Mounting Rails | 4 vertical rails |
| Mounting Holes | Square / 10-32 compatible |
| Stationary Load Capacity | 3,500 lb. (1,588 kg) |
| Rolling Load Capacity | 2,250 lb. (1,020.6 kg) |
| Material / Color | Steel / Black |
| Cable Management | Built-in |
| Casters | Pre-installed |
| Compliance | RoHS, CE |
