Detailed Specifications

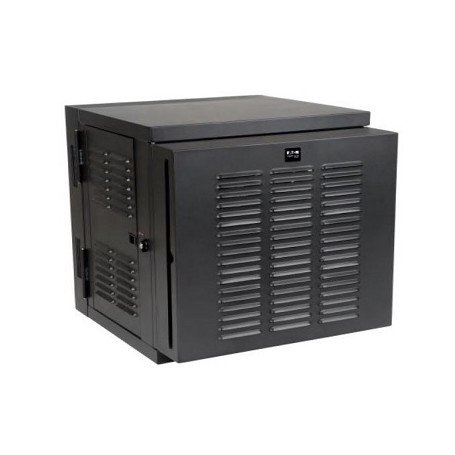

Eaton SRWX12USNEMA SmartRack 12U NEMA 12 Wall-Mount Rack Enclosure Tripp Lite
Overview :
The Eaton SRWX12USNEMA is a SmartRack 12U switch-depth wall-mount rack enclosure designed to secure and organize standard 19-inch rack equipment in harsh, dirty environments such as factories, warehouses, and construction areas. It accommodates equipment up to 20.5 inches deep and supports a stationary load of up to 200 lb.
The steel enclosure provides NEMA 12 / IP54 protection against dust, dirt, drips, and splashes. A locking reversible front door, locking removable side panels, hinged rear panel, built-in dust filter, louvered ventilation, and four high-performance intake fans support secure equipment deployment and controlled airflow.
Key Features :
- 12U wall-mount rack enclosure for 19-inch equipment
- NEMA 12 / IP54 protection against dust, dirt, drips and splashes
- Supports equipment up to 20.5 in. deep
- 200 lb (90.7 kg) maximum stationary load capacity
- Locking, reversible front door
- Hinged rear panel for convenient service access
- Locking removable side panels
- Four high-performance intake fans
- Built-in removable/replaceable dust filter
- Adjustable vertical mounting rails
- Cable-routing ports on rear panel
- Includes 230V-compatible international power cords
- EIA/ECA-310-E and IEC 60297-3 compliant
- 2-year limited worldwide warranty
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Model | SRWX12USNEMA |
| Product Type | Wall-Mount Rack Enclosure |
| Rack Capacity | 12U |
| Rack Width | 19 in. |
| Enclosure Type | Switch-Depth, Harsh Environment |
| Protection Rating | NEMA 12 / IP54 |
| Maximum Device Depth | 20.5 in. / 521 mm |
| Minimum Device Depth | 3 in. / 76 mm |
| Static Load Capacity | 200 lb / 90.7 kg |
| Material | Steel |
| Color | Black |
| Mounting Rails | 4 adjustable vertical rails |
| Ventilation | 4 high-performance intake fans |
| Fan Voltage | 230V |
| Front Door | Locking, reversible |
| Rear Access | Hinged back panel |
| Side Panels | Locking, removable |
| Dust Protection | Removable/replaceable filter |
| Compliance | EIA/ECA-310-E, IEC 60297-3, RoHS |
