Detailed Specifications
Eaton SR42UBSP1 42U SmartRack Standard-Depth Rack Enclosure Compatible Tripp Lite
Overview :
The Eaton SR42UBSP1 is a Tripp Lite SmartRack 42U floor-standing rack enclosure designed for servers, network switches, UPS systems, patch panels, and other 19-inch rack equipment. It includes locking front and rear doors, removable side panels, four vertical mounting rails, and built-in cable management.

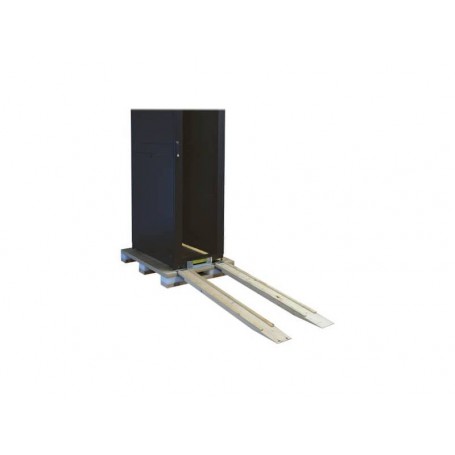

The SP1 version is supplied with a shock pallet and loading ramps for safer transportation and deployment of the fully assembled cabinet. It supports up to 3,500 lb (1,588 kg) stationary or 2,250 lb (1,021 kg) rolling load, with a maximum device depth of 37 inches.
Key Features :
- 42U rack capacity
- Standard 19-inch equipment mounting
- Standard-depth enclosure
- 27.75-inch factory preset rack depth
- 37-inch maximum device depth
- Four vertical mounting rails
- Square-hole mounting rails
- Locking, removable and reversible front/rear doors
- Locking removable side panels
- Built-in cable management
- Pre-installed casters
- 3,500 lb stationary load capacity
- 2,250 lb rolling load capacity
- Front and rear door-frame grounding
- Ships fully assembled
- Includes shock pallet and loading ramps
- Black powder-coated steel construction
- Designed for substantial front-to-rear ventilation
- UL 60950-1 certified; RoHS and CE compliant
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | SR42UBSP1 |
| Product Type | Rack Enclosure Cabinet |
| Series | SmartRack |
| Rack Height | 42U |
| Rack Width | 19 in equipment mounting |
| Rack Depth | Standard |
| Factory Preset Rack Depth | 27.75 in / 70.5 cm |
| Maximum Device Depth | 37 in / 94 cm |
| Minimum Device Depth | 4 in / 10.2 cm |
| Vertical Mounting Rails | 4 |
| Mounting Holes | Square |
| Stationary Load Capacity | 3,500 lb / 1,588 kg |
| Rolling Load Capacity | 2,250 lb / 1,021 kg |
| Doors | Locking, removable, reversible front and rear |
| Side Panels | Locking, removable |
| Cable Management | Built-in |
| Casters | Pre-installed |
| Material | Steel |
| Color | Black |
