Detailed Specifications

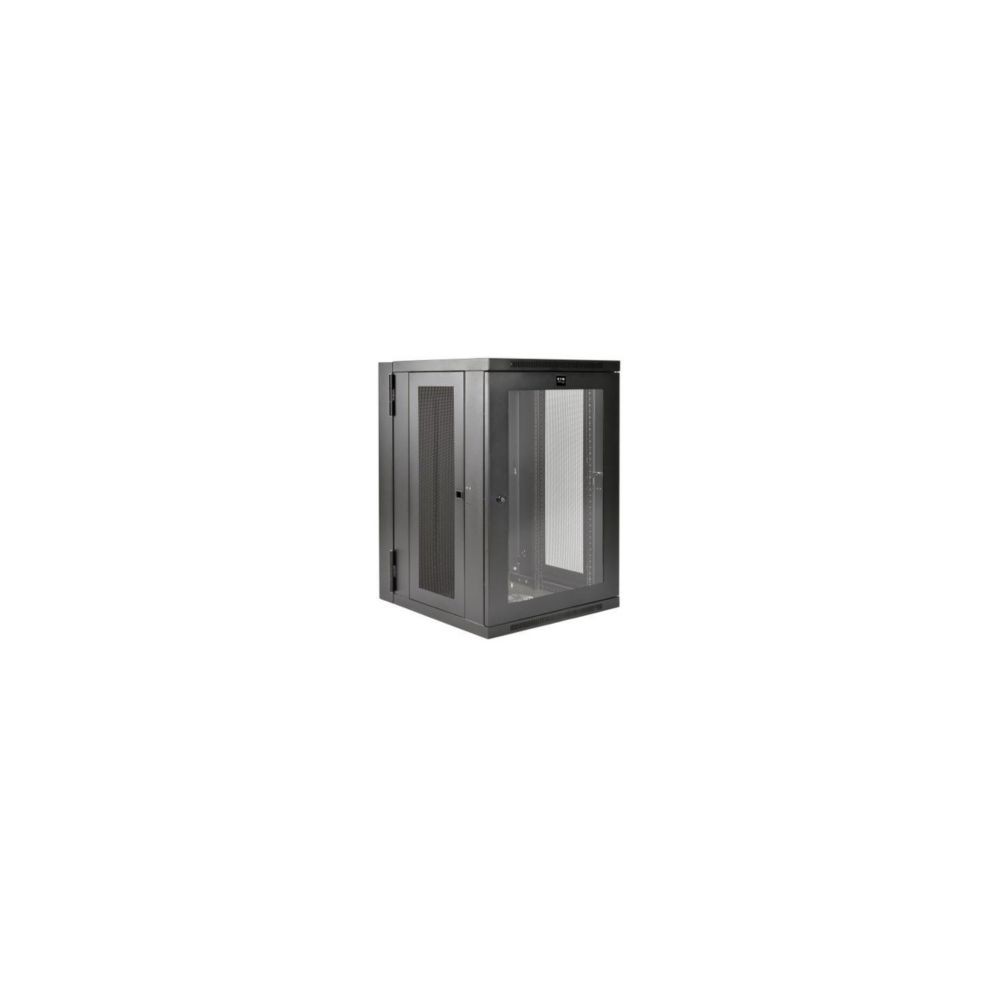

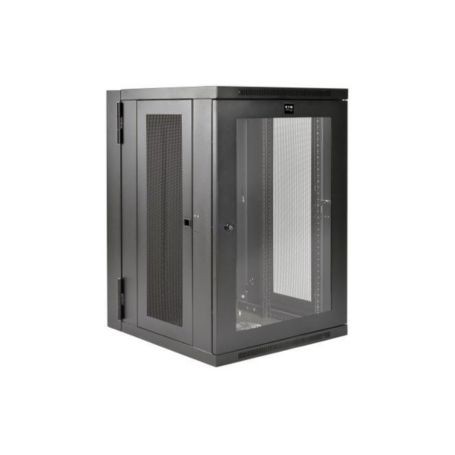

Eaton SRW18USDPG Tripp Lite Smart Rack 18U UPS-Depth Wall-Mount Rack Enclosure
Overview
The Eaton SRW18USDPG, from the Tripp Lite Smart Rack series, is an 18U UPS-depth wall-mount rack enclosure designed to secure standard 19-inch rack equipment. Its clear acrylic front window allows visual monitoring of installed equipment while the locking enclosure helps protect network, UPS, and IT infrastructure from unauthorized access.
The enclosure supports equipment up to 24.5 inches deep and has a 250 lb (113 kg) static load rating. Four vertical mounting rails accommodate both square-hole and 12-24 threaded-hole rack equipment. The hinged wall bracket allows the cabinet to swing away from the wall for rear access to equipment and cabling.
Key Features
- Provides 18U of rack space for standard 19-inch equipment.
- Supports equipment up to 24.5 in. deep with a 250 lb static load capacity.
- Features a shatter-resistant clear acrylic front window for equipment visibility.
- Hinged wall-mount design swings away from the wall for rear equipment and cable access.
- Locking steel enclosure with ventilation and top/bottom cable-routing ports supports secure IT deployments.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Series | SmartRack |
| Part Number | SRW18USDPG |
| Product Type | Wall-Mount Rack Enclosure |
| Rack Height | 18U |
| Rack Width | 19 in. |
| Rack Type | UPS-Depth, Half-Height Enclosure |
| Mounting Type | Wall Mount |
| Maximum Device Depth | 24.5 in. (622 mm) |
| Minimum Device Depth | 3 in. (76 mm) |
| Static Load Capacity | 250 lb (113 kg) |
| Vertical Mounting Rails | 4 |
| Mounting Rail Compatibility | Square-hole / 12-24 threaded-hole |
| Front Door | Clear acrylic window |
| Rear Door | Hinged |
| Side Panels | Yes |
| Door / Panel Security | Locking |
| Ventilation | Bottom, sides and top |
| Cable Entry | Top and bottom routing ports |
| Wall Bracket | Hinged / swing-away |
| Factory Preset Rack Depth | 10.63 in. |
| Color | Black |
| Construction | Steel with clear acrylic front window |
| Grounding | Front and rear door frames |
| Protection Rating | IP20 |
| Standards / Compliance | EIA/ECA-310-E, IEC 60297-3-100, RoHS, NOM |
| PCI Compliance | Yes |
| Warranty | 5-year limited worldwide |
| UPC | 037332189714 |
