Eaton SRW9UDPVRT Tripp Lite Smart Rack 9U Wall-Mount Rack Enclosure

Overview

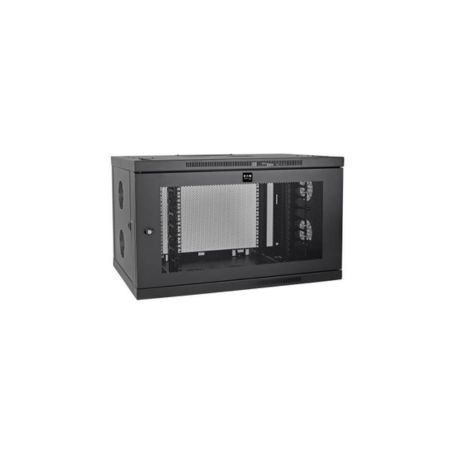

The Eaton SRW9UDPVRT, from the Tripp Lite SmartRack series, is a 9U low-profile switch-depth-plus wall-mount rack enclosure designed to house standard 19-inch EIA rack equipment up to 20.5 inches deep. Its extra-wide cabinet provides additional space for cable routing and management, making it suitable for network wiring closets, branch offices, retail locations, classrooms and back offices.

The enclosure is constructed from heavy-duty powder-coated steel and has a 200 lb (90.7 kg) static load capacity. Four adjustable vertical mounting rails accommodate equipment at different depths, while lockable front and removable side panels provide physical equipment security. Integrated vertical cable-management fingers, top/bottom cable-routing ports and optional ventilation-fan mounting ports support organized and cooled deployments.

Key Features

• 9U rack capacity houses standard 19-inch EIA rack equipment up to 20.5 inches deep.
• Extra-wide cabinet design provides approximately 3 inches more width than standard-width SmartRack wall-mount enclosures for improved cable management.
• 200 lb static load capacity supports network switches, patch panels and other compatible rack equipment.
• Lockable front door and removable side panels help protect equipment against unauthorized access, tampering and theft.
• Integrated cable management and ventilation provisions include vertical cable fingers, cable pass-throughs and fan-mounting ports.
