Detailed Specifications

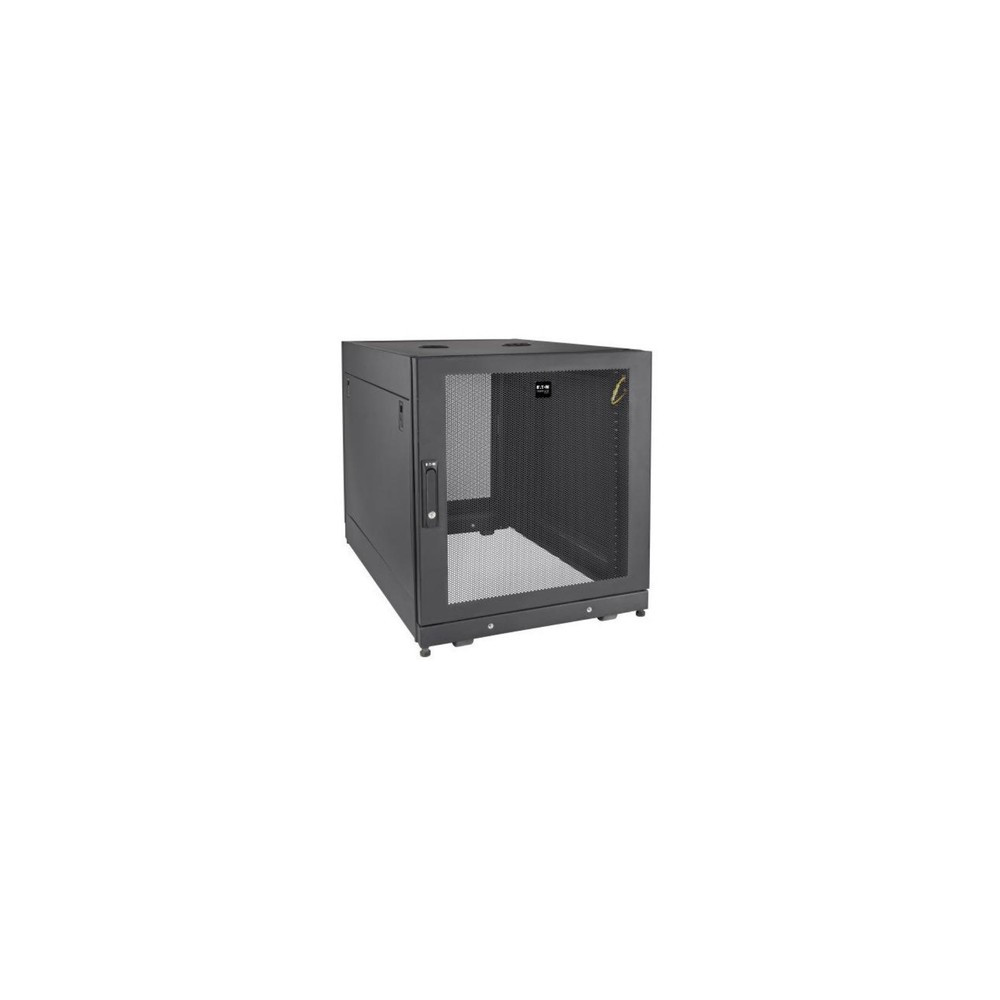

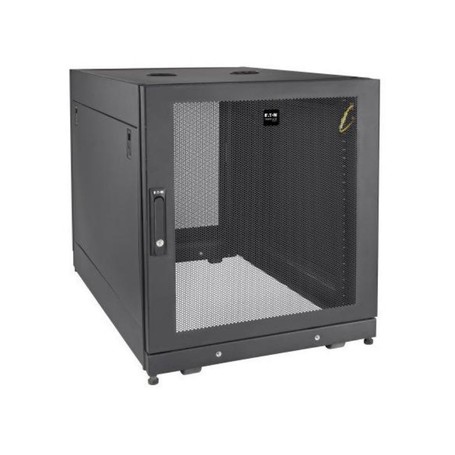

Eaton SR14UBDP 14U SmartRack Extra-Deep Server Rack Enclosure Compatible Tripp Lite
Overview :
The Eaton SR14UBDP is a 14U SmartRack extra-deep server rack enclosure designed for standard rack-mount IT and networking equipment. It accommodates equipment up to 42 inches deep and includes front and rear mounting rails, doors, and removable side panels.
The enclosure is constructed from heavy-duty steel with a black powder-coated finish and has a 1,000 lb (453.6 kg) maximum load capacity. It ships fully assembled with metal casters and adjustable leveling feet for deployment in server rooms, network closets, retail locations, classrooms, and back offices.
Key Features :
- 14U rack capacity
- Extra-deep design supports equipment up to 42 inches deep
- Fully assembled for rapid deployment
- Front and rear adjustable mounting rails
- Locking front and rear doors
- Removable locking side panels
- Vented doors for airflow
- Adjustable vertical cable-management rails
- Four metal casters and leveling feet included
- Heavy-duty steel construction
- Supports up to 1,000 lb (453.6 kg)
- PCI DSS physical-security application
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | SR14UBDP |
| Product Type | SmartRack Extra-Deep Server Rack Enclosure |
| Rack Height | 14U |
| Rack Width | 19 inches |
| Maximum Equipment Depth | 42 inches |
| Overall Depth | 43.62 inches |
| Overall Width | 23.62 inches |
| Overall Height | 28.23 inches |
| Maximum Load Capacity | 1,000 lbs (453.6 kg) |
| Construction | Heavy-duty steel |
| Finish | Black powder coat |
| Front Door | Locking, vented |
| Rear Door | Locking, vented |
| Side Panels | Removable, locking |
| Mounting Rails | Front and rear adjustable |
| Mounting Rail Type | Square holes / 10-32 threaded holes |
| Cable Management | Adjustable vertical cable-management rails |
| Casters | 4 metal casters |
| Leveling | Adjustable leveling feet |
| Compliance | RoHS, EIA-310-E, UKCA |
| Certification | UL 60950-1 |
