Detailed Specifications

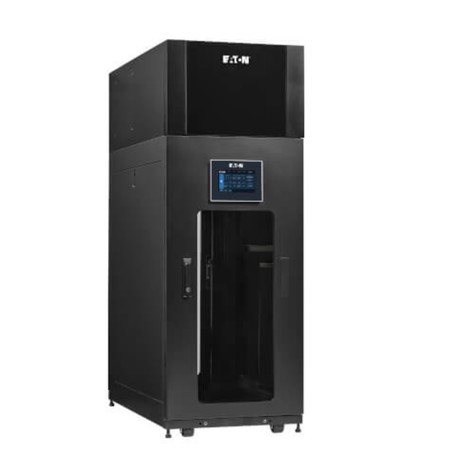

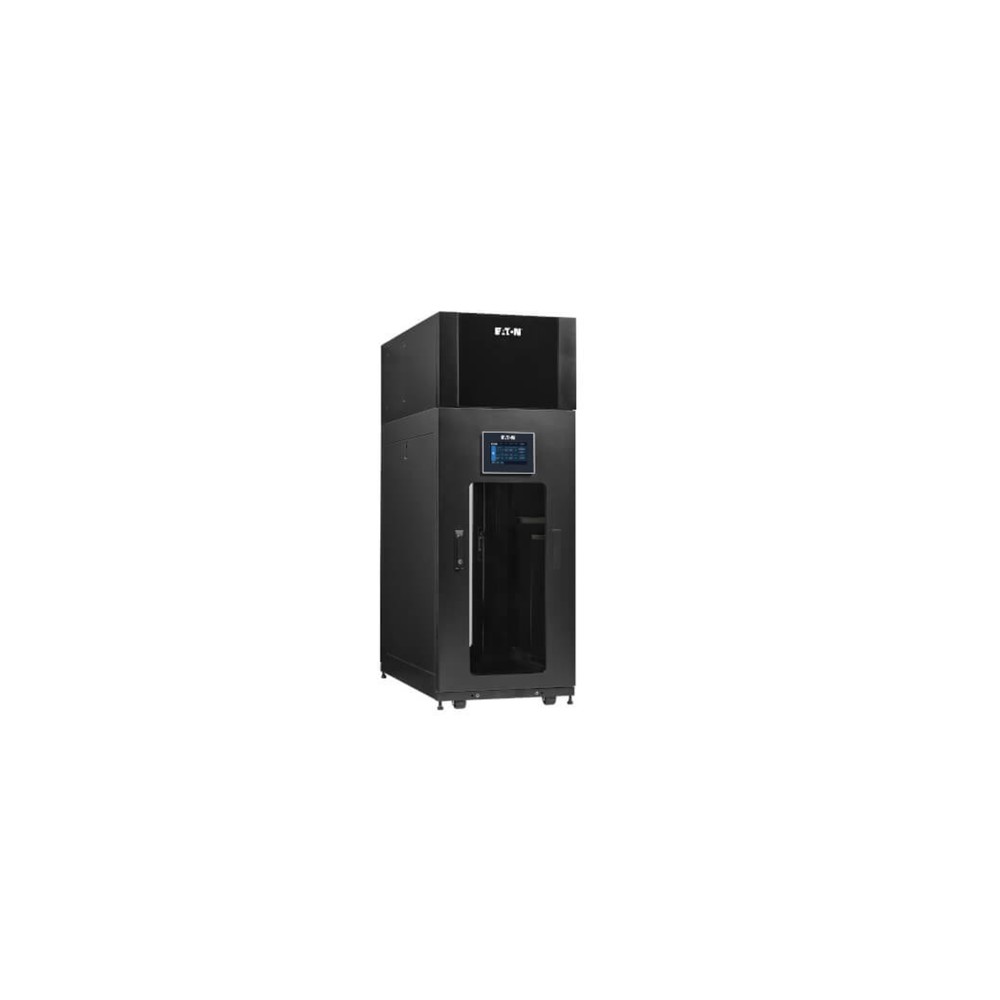

Eaton SRCOOL3KTP33U Self-Cooling Rack Enclosure
Overview
The Eaton SRCOOL3KTP33U is a 33U self-contained, closed-loop rack enclosure with an integrated 3.5kW (12,000 BTU) top-of-rack precision air conditioning system designed for edge data centers and single-rack micro data center deployments.
It combines a standard-depth 19-inch server rack with an integrated cooling unit, delivering localized thermal management directly inside the enclosure. This design eliminates the need for external CRAC/CRAH infrastructure, making it suitable for distributed IT environments where HVAC capacity is limited or unavailable.
The system supports up to 3000 lb stationary load and is designed for enterprise servers, network switches, storage arrays, and edge compute nodes. Built-in LX Platform remote management enables real-time monitoring of temperature, airflow, and system status for remote infrastructure control and predictive maintenance.
Deployment use cases include retail edge sites, branch offices, industrial automation rooms, laboratories, and telecom micro data centers where rapid deployment and thermal independence are required. It is not intended for hyperscale multi-rack data halls or environments requiring centralized chilled-water cooling systems.
Key Features
- 3.5kW (12,000 BTU) integrated rack cooling system
- Closed-loop design removes need for external HVAC
- LX Platform enables full remote monitoring and control
- 33U rack supports standard 19-inch IT equipment
- Supports up to 3000 lb stationary equipment load
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | SRCOOL3KTP33U |
| Product Type | Self-Cooling Rack Enclosure |
| Rack Height | 33U |
| Rack Width | 19 in |
| Rack Depth | 42.9 in |
| Cooling Capacity | 3.5 kW / 12,000 BTU |
| Input Voltage | 208-240V AC |
| Input Power | Single-phase hardwire |
| Airflow | ~350 CFM |
| Load Capacity (Stationary) | 3000 lb |
| Load Capacity (Rolling) | 2250 lb |
| Management Interface | LX Platform (SNMP enabled) |
| Construction | Steel, sealed enclosure system |
| Form Factor | Integrated rack + cooling unit |
