Detailed Specifications

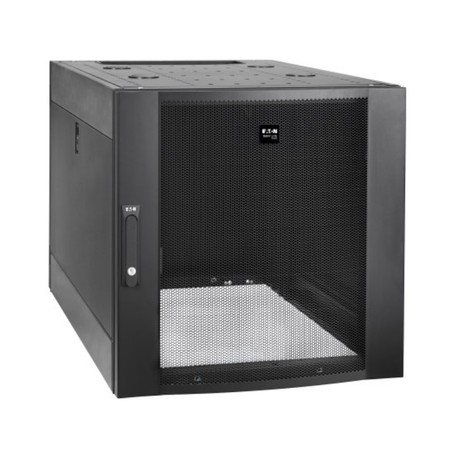

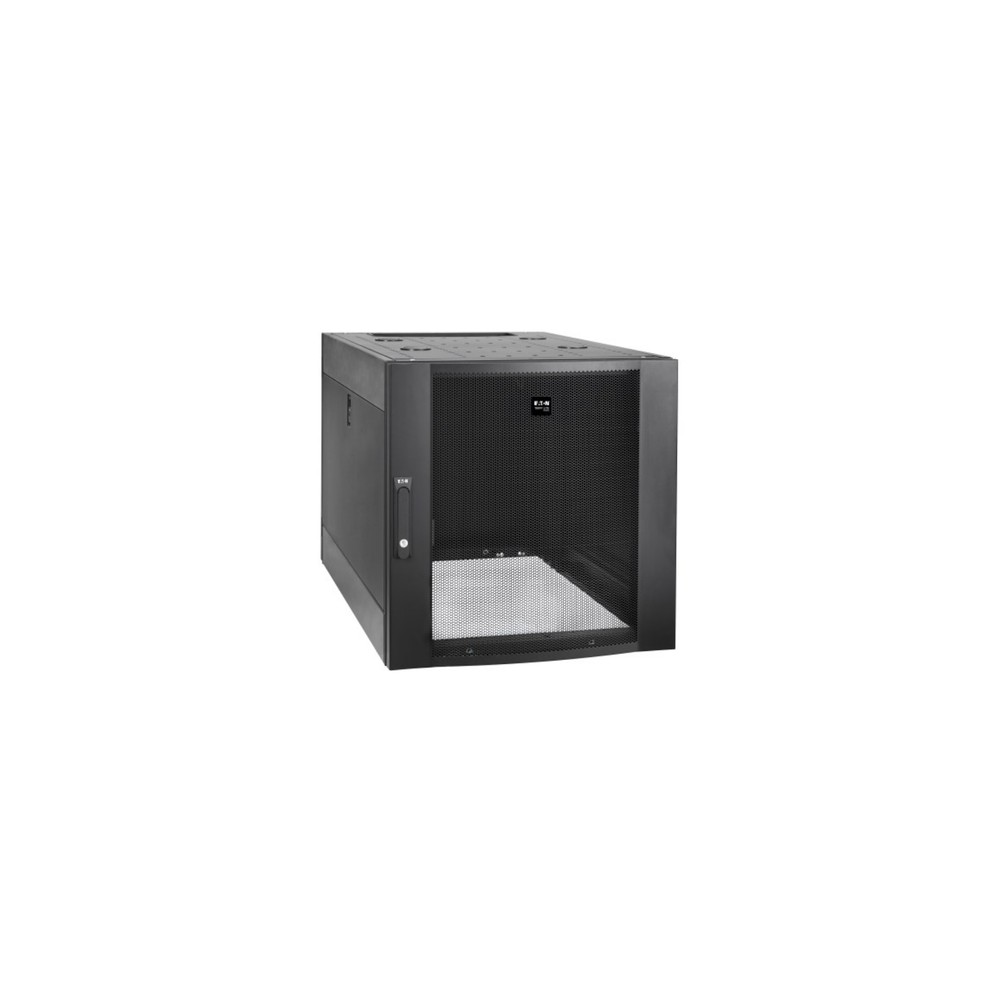

Eaton SRTH12UB SmartRack Extension Enclosure
Overview
The Eaton SRTH12UB is a 12U SmartRack "top hat" enclosure extension designed to increase rack capacity vertically without increasing floor footprint in data center and enterprise IT environments.
It is installed on compatible Eaton SmartRack floor-standing cabinets to add additional rack mounting space for network, storage, and light server equipment.
The module maintains standard 19-inch EIA rack compatibility and integrates with the base enclosure's grounding system, airflow path, and physical security structure. It is commonly used in colocation suites, enterprise server rooms, and telecom deployments where incremental capacity expansion is required without replacing the full rack.
The SRTH12UB is intended for lightweight to moderate IT equipment such as patch panels, switches, PDUs, and small form-factor devices. It is not designed to support heavy server loads or act as a standalone rack enclosure.
Key Features
- Adds 12U of vertical rack space to existing enclosures
- Maintains 19-inch EIA standard rack compatibility
- Integrated grounding support for bonded rack systems
- Locking enclosure design for physical security continuity
- Supports incremental expansion without replacing base rack
Specifications
| Parameter | Value |
|---|
| Brand | Eaton |
| Part Number | SRTH12UB |
| Product Type | Rack Extension Enclosure (Top Hat) |
| Rack Height Added | 12U |
| Rack Width | 19-inch EIA |
| Mounting Type | Top-mounted expansion module |
| Compatibility | Eaton SmartRack floor-standing racks |
| Material | Steel |
| Color | Black powder coat |
| Door Type | Locking front door |
| Side Panels | Removable locking panels |
| Cable Access | Top cable routing ports |
| Grounding | Integrated grounding points |
| Application | Data center / telecom rack expansion |
| Installation | Bolt-on expansion module |
| Compliance | RoHS, EIA-310-E |
| Certifications | UL 60950-1 |
