Detailed Specifications

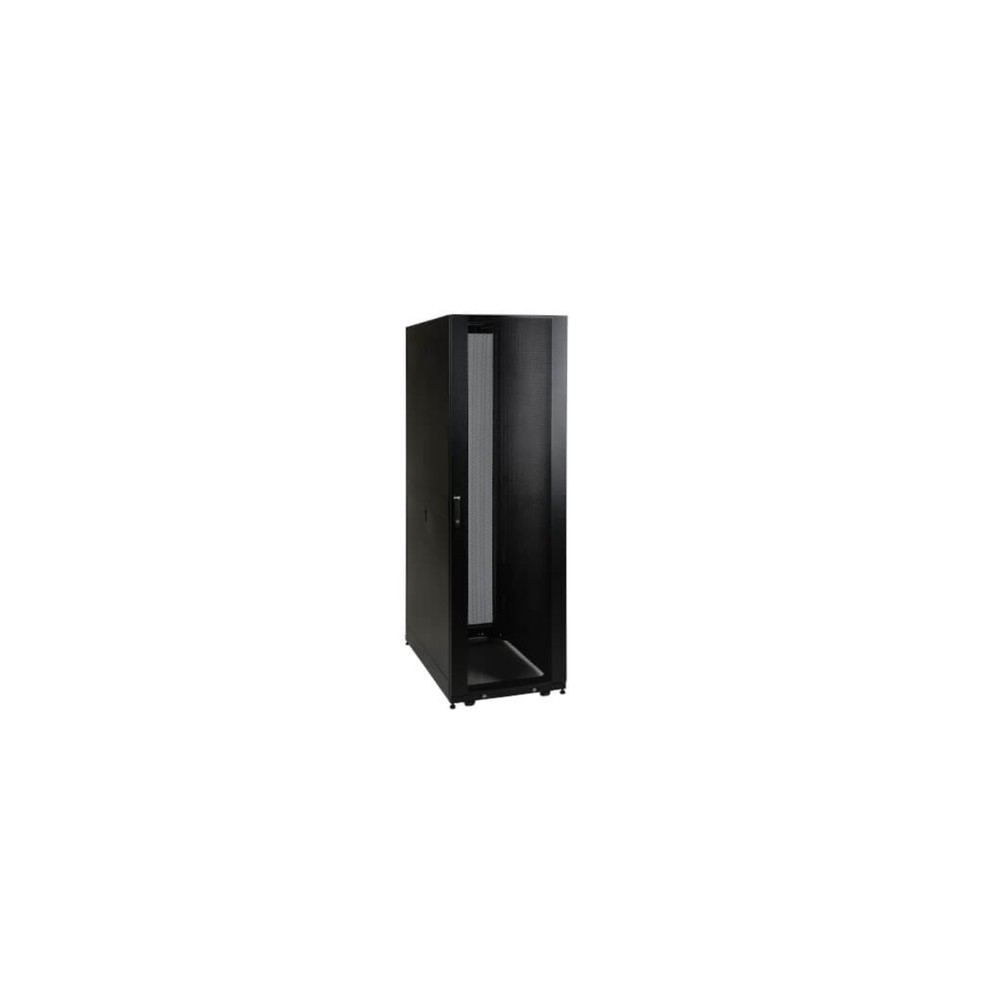

Eaton SR45UBMD 45U mid-depth SmartRack enclosure
Overview
The Eaton SR45UBMD is a 45U mid-depth SmartRack enclosure engineered for enterprise server, storage, and network infrastructure deployments requiring secure rack integration with optimized floor utilization.
It is commonly deployed in data centers, telecom facilities, edge computing environments, and enterprise IT rooms where controlled airflow, cable organization, and equipment security are critical.
The enclosure supports standard 19-inch rack equipment with adjustable mounting rails and a 36-inch cabinet depth for mid-depth hardware installations. Integrated front-to-rear airflow ventilation supports hot-aisle/cold-aisle deployment strategies and high-density thermal management requirements.
Locking reversible front and rear doors, removable side panels, and PCI DSS-oriented physical security features help secure installed infrastructure while maintaining service accessibility.
The cabinet ships fully assembled with casters, leveling feet, and integrated PDU/cable management mounting support. It is not intended for ultra-deep server platforms exceeding supported rack depth.
Key Features
- 45U enclosure supports enterprise rack deployments
- Mid-depth 36-inch cabinet optimizes floor utilization
- Adjustable rails support flexible equipment mounting
- Locking panels and doors improve physical security
- High airflow design supports hot/cold aisle cooling
Specifications
| Parameter | Value |
|---|
| Brand | Eaton |
| Part Number | SR45UBMD |
| Product Type | Rack Enclosure Cabinet |
| Rack Height | 45U |
| Rack Width | 19-inch EIA |
| Cabinet Depth | 36 in |
| External Width | 23.63 in |
| External Height | 83.75 in |
| Form Factor | Floor-standing enclosure |
| Static Load Capacity | 3500 lb |
| Rolling Load Capacity | 2250 lb |
| Rail Type | Adjustable square-hole rails |
| Rail Adjustment Range | 4 to 28.75 in |
| Cooling Design | Front-to-rear ventilation |
| Door Type | Locking reversible front/rear |
| Side Panels | Locking removable panels |
| Cable Access | Top and bottom routing ports |
| Mounting Support | Toolless 0U PDU mounting |
| Material | Heavy-duty steel |
| Color | Black |
| Compliance | PCI DSS, RoHS, CE |
| Certifications | UL 60950-1 |
