Detailed Specifications

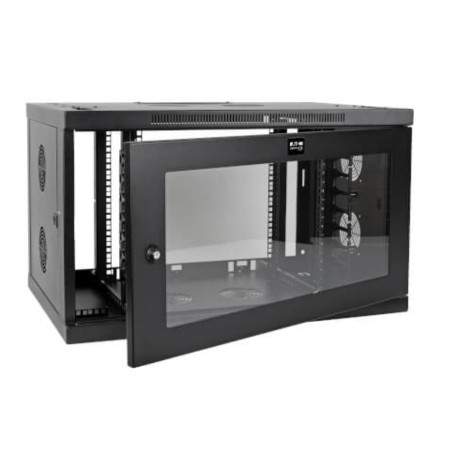

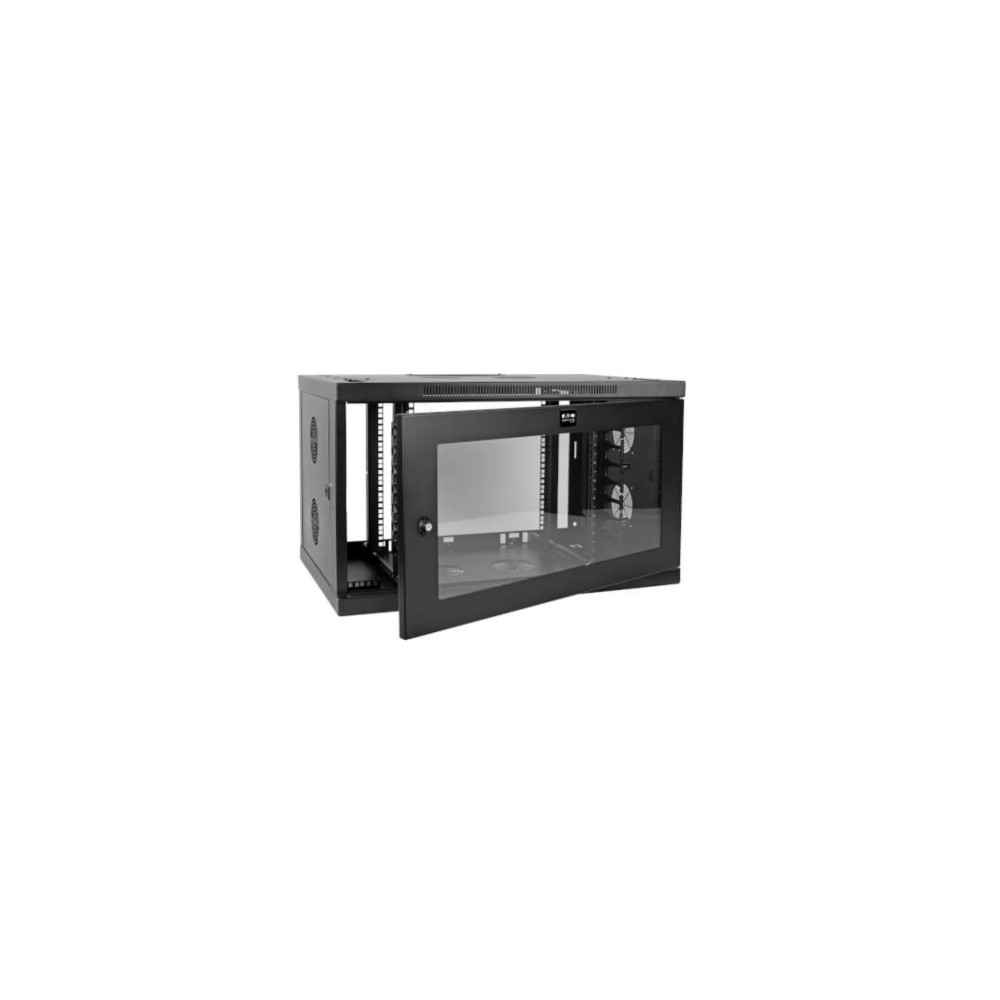

Eaton SRW9UDPGVRT Wall-Mount Rack Enclosure
Overview
The Eaton SRW9UDPGVRT is a 9U low-profile wall-mount rack enclosure designed for securing and organizing shallow-depth network infrastructure equipment in distributed IT and edge deployments.
It is commonly used in network closets, branch offices, classrooms, retail back rooms, and telecom installations where floor space is limited but secure rack integration is required.
The enclosure supports standard 19-inch rack equipment up to 20.5 inches deep and includes extra cabinet width with integrated cable management channels to improve airflow and reduce front cable congestion.
A shatter-resistant acrylic front window allows equipment visibility without opening the cabinet, while locking side panels and doors help maintain PCI DSS physical security compliance.
The cabinet ships fully assembled for direct wall installation and supports switches, patch panels, routers, and compact server infrastructure. It is not intended for deep rack servers exceeding supported mounting depth.
Key Features
- 9U low-profile enclosure for edge network deployments
- Extra-wide chassis improves front cable organization
- Acrylic viewing window supports secure equipment visibility
- Locking doors and side panels protect rack hardware
- Supports 19-inch equipment up to 20.5-inch depth
Specifications
| Parameter | Value |
|---|
| Brand | Eaton |
| Part Number | SRW9UDPGVRT |
| Product Type | Wall-Mount Rack Enclosure |
| Rack Height | 9U |
| Rack Standard | 19-inch EIA |
| Form Factor | Wall mount |
| Rack Depth | Switch-depth-plus / shallow |
| Maximum Device Depth | 20.5 in |
| Load Capacity | 200 lb |
| Material | Powder-coated steel |
| Front Door Material | Shatter-resistant acrylic |
| Color | Black |
| Cable Management | Integrated vertical cable managers |
| Mounting Rails | 4 adjustable rails |
| Ventilation | Passive vented airflow design |
| Security | Locking front door and side panels |
| Cable Access | Top and bottom cable entry ports |
| Assembly | Ships fully assembled |
| Compliance | EIA-310-E, RoHS, PCI DSS support |
