Detailed Specifications

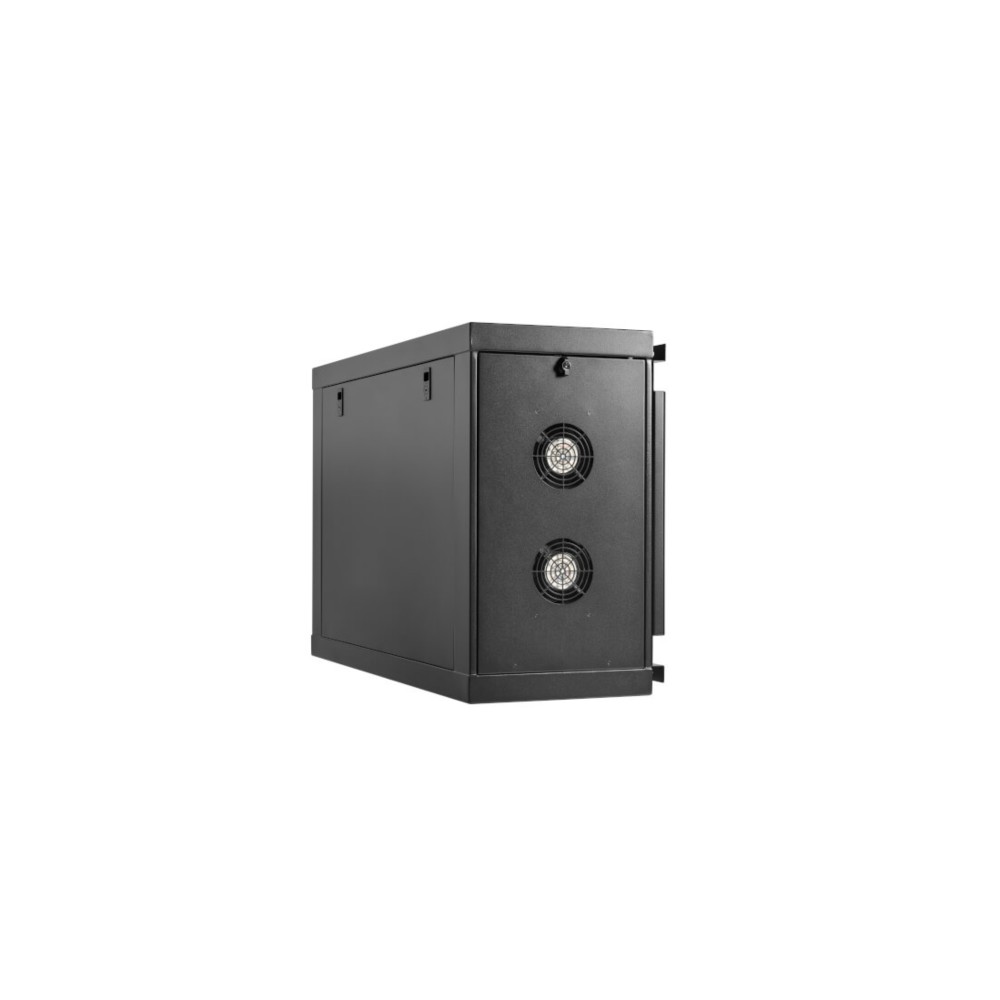

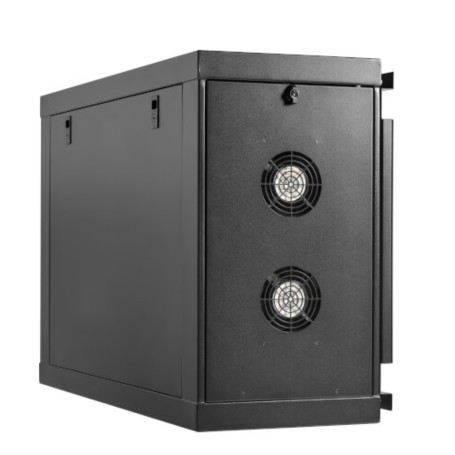

Eaton SRW6USM Wall Mount Rack Enclosure
Overview
The Eaton SRW6USM is a 6U low-profile wall-mount rack enclosure designed for network switches, patch panels, PDUs, and shallow-depth rack equipment in space-constrained IT environments.
It is commonly deployed in network closets, retail back offices, classrooms, branch locations, and edge infrastructure installations where floor-mounted racks are impractical.
The enclosure uses a side-mount equipment orientation to maximize usable rack depth while minimizing wall protrusion. It supports standard 19-inch EIA rack equipment and provides integrated airflow ventilation with locking doors and removable side panels for equipment security.
The cabinet ships fully assembled and includes adjustable mounting rails, top and bottom cable routing ports, and steel construction for high-load deployments.
It is intended for shallow-depth networking infrastructure and is not suitable for deep enterprise servers exceeding supported mounting depth.
Key Features
- Side-mount 6U design optimizes limited wall space
- Supports standard 19-inch rack networking equipment
- Locking doors and panels secure installed hardware
- Integrated ventilation improves thermal airflow management
- Heavy-duty steel enclosure supports 250 lb load capacity
Specifications
| Parameter | Value |
|---|
| Brand | Eaton |
| Part Number | SRW6USM |
| Product Type | Wall-Mount Rack Enclosure |
| Rack Height | 6U |
| Rack Standard | 19-inch EIA |
| Mounting Type | Wall mount |
| Equipment Orientation | Side-mount |
| Maximum Load Capacity | 250 lb (113 kg) |
| Material | Heavy-duty steel |
| Finish | Black powder coat |
| Ventilation | Vented doors and panels |
| Door Type | Locking front door |
| Side Panels | Locking removable panels |
| Cable Entry | Top and bottom routing ports |
| Mounting Rails | Adjustable |
| Assembly | Ships fully assembled |
| Application | Network switches, patch panels, PDUs |
| Compliance | PCI DSS, EIA, TIA |
