Detailed Specifications

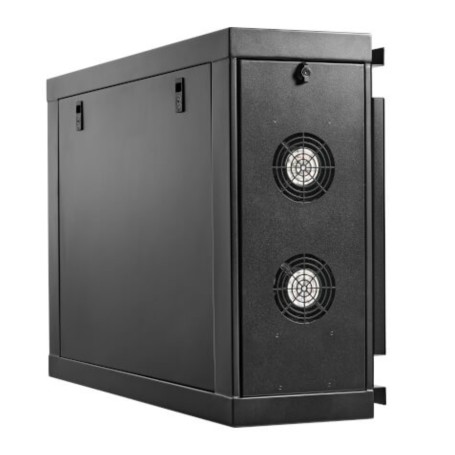

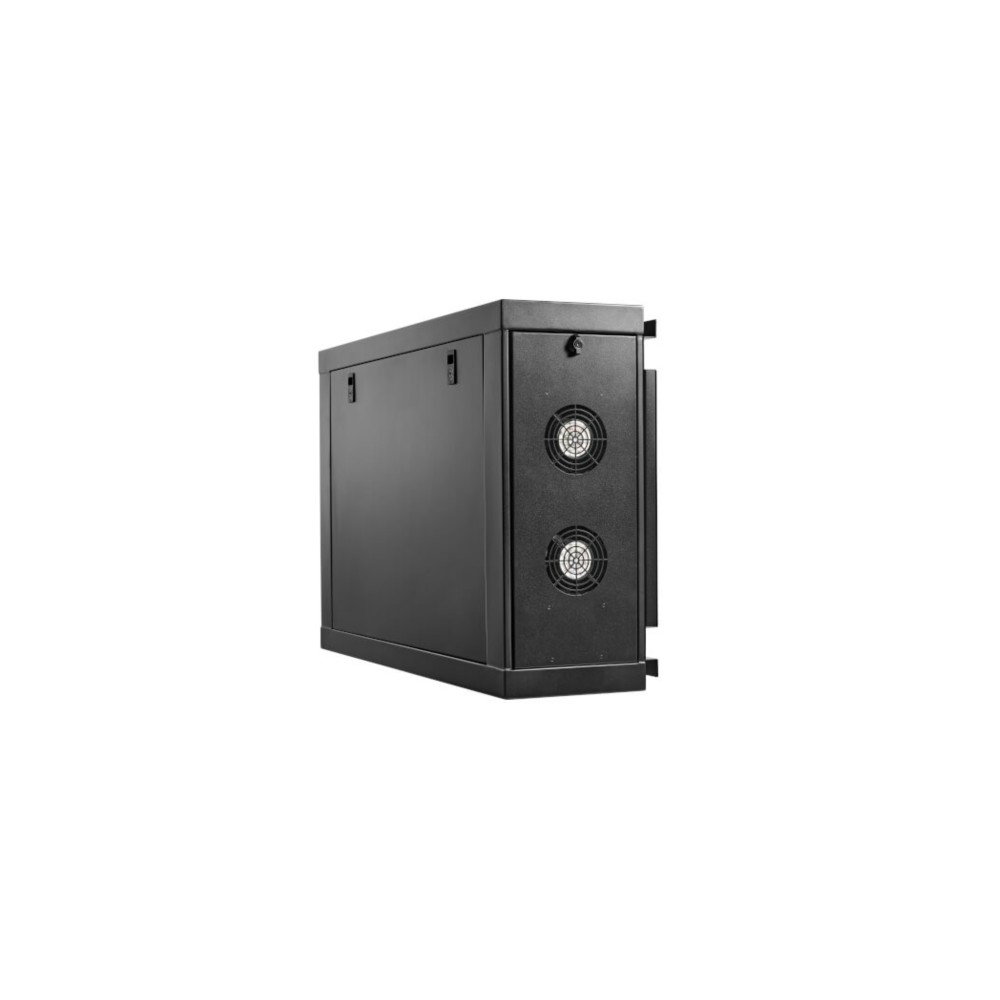

Eaton SRW4USM SmartRack 4U Wall-Mount Rack Enclosure
Overview
The Eaton SRW4USM is a 4U low-profile, side-mount wall rack enclosure designed for secure installation of 19-inch network and AV equipment in space-constrained IT environments. It is commonly deployed in wiring closets, retail backrooms, classrooms, and branch offices where floor space is limited and equipment needs to be protected, organized, and wall-mounted.
The enclosure uses a sideways equipment mounting design to reduce depth while maintaining full rack usability, supporting devices such as switches, patch panels, and small network appliances up to 29.4 inches deep.
Built from heavy-duty steel with a black powder-coated finish, the cabinet supports a static load capacity of up to 200 lb, making it suitable for dense edge networking installations.
The unit includes lockable doors and side panels, helping protect against unauthorized access, tampering, and accidental damage in public or shared infrastructure spaces.
Ventilation is integrated through a flow-through airflow design to help maintain stable operating temperatures for continuously running networking equipment.
Key Features
- 4U wall-mount enclosure for compact network deployments
- Side-mounted equipment layout reduces installation depth
- Lockable doors and panels improve physical security
- Supports up to 200 lb static equipment load capacity
- Flow-through ventilation maintains stable thermal performance
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | SRW4USM |
| Product Type | Wall-Mount Rack Enclosure |
| Rack Capacity | 4U |
| Rack Depth | Up to 29.4 in |
| Mount Type | Wall mount |
| Material | Steel |
| Finish | Black powder coat |
| Load Capacity | 200 lb (static) |
| Equipment Orientation | Side-mounted |
| Ventilation | Passive flow-through airflow |
| Security | Lockable doors and side panels |
| Application | Network switches, patch panels, small IT systems |
