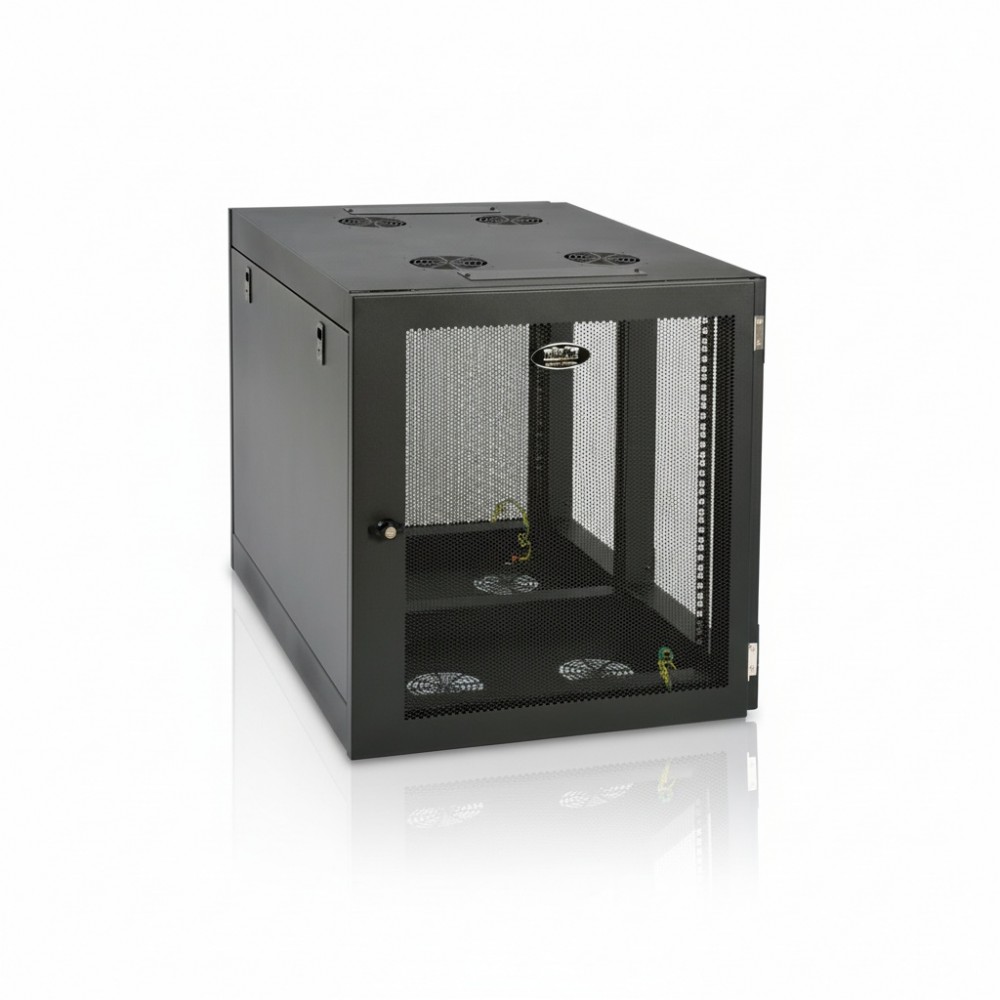

Eaton SRW12US33 12U Wall-Mount Rack Enclosure 33in Depth
Overview :
The Eaton SRW12US33 is a 12U wall-mount rack enclosure designed for deploying IT and network equipment in environments with limited floor space. It is commonly used by network engineers and infrastructure teams who need secure, space-efficient mounting for servers, switches, and patch panels in distributed IT environments.
This enclosure supports standard 19-inch rack equipment and provides up to 12U of rack space with a maximum device depth of 32.5 inches. It has a static load capacity of 250 lb (113.4 kg) and includes four adjustable vertical mounting rails that support both square-hole and threaded mounting. The cabinet is constructed from heavy-duty steel and features a hinged wall-mount design that allows the entire enclosure to swing away from the wall for rear access during installation and maintenance.
The SRW12US33 is typically deployed in IDF closets, branch offices, retail locations, classrooms, and back-office environments where full-size floor racks are not practical. Its wall-mounted form factor keeps equipment off the floor while maintaining structured cable and power organization in constrained spaces.
From an integration standpoint, the enclosure supports standard rack ecosystems including rack PDUs, UPS systems, and network hardware. It includes top and bottom cable entry ports for structured cabling and supports airflow through vented front doors and side panels. The reversible door design allows flexible installation depending on site layout, and optional fan kits can be added for enhanced thermal management.
A practical deployment example includes mounting the SRW12US33 in a network closet to house access switches, patch panels, and a small rack UPS. The swing-out design simplifies cable termination and maintenance without requiring rack removal or service disruption.
This enclosure should not be used in high-density data center deployments requiring floor-standing racks, high load capacities beyond 250 lb, or advanced airflow containment. It is also not suitable for environments requiring deep rack scalability or large UPS systems.
Key Features
- 12U wall-mount design for space-constrained deployments
- Hinged enclosure allows rear access without removal
- Supports equipment up to 32.5-inch mounting depth
- Locking steel cabinet with vented airflow panels
- Adjustable rails for square and threaded mounting
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | SRW12US33 |
| Product Type | Wall-Mount Rack Enclosure |
| Rack Height | 12U |
| Rack Standard | 19-inch (EIA-310-E) |
| Load Capacity (Static) | 250 lb (113.4 kg) |
| Maximum Device Depth | 32.5 in (825.5 mm) |
| Minimum Device Depth | 3 in (76 mm) |
| Width | 23.6 in (600 mm) |
| Height | 25.1 in (≈639 mm) |
| Depth | 33.5 in (851 mm) |
| Weight | ~94.5 lb (42.9 kg) |
| Mounting Rails | 4 adjustable vertical rails |
| Rail Type | Square-hole / threaded |
| Construction | Heavy-duty steel |
| Door Type | Locking, vented, reversible |
| Cable Access | Top and bottom entry ports |
| Cooling Support | Passive ventilation, fan optional |
| Compliance | EIA-310-E, RoHS |
