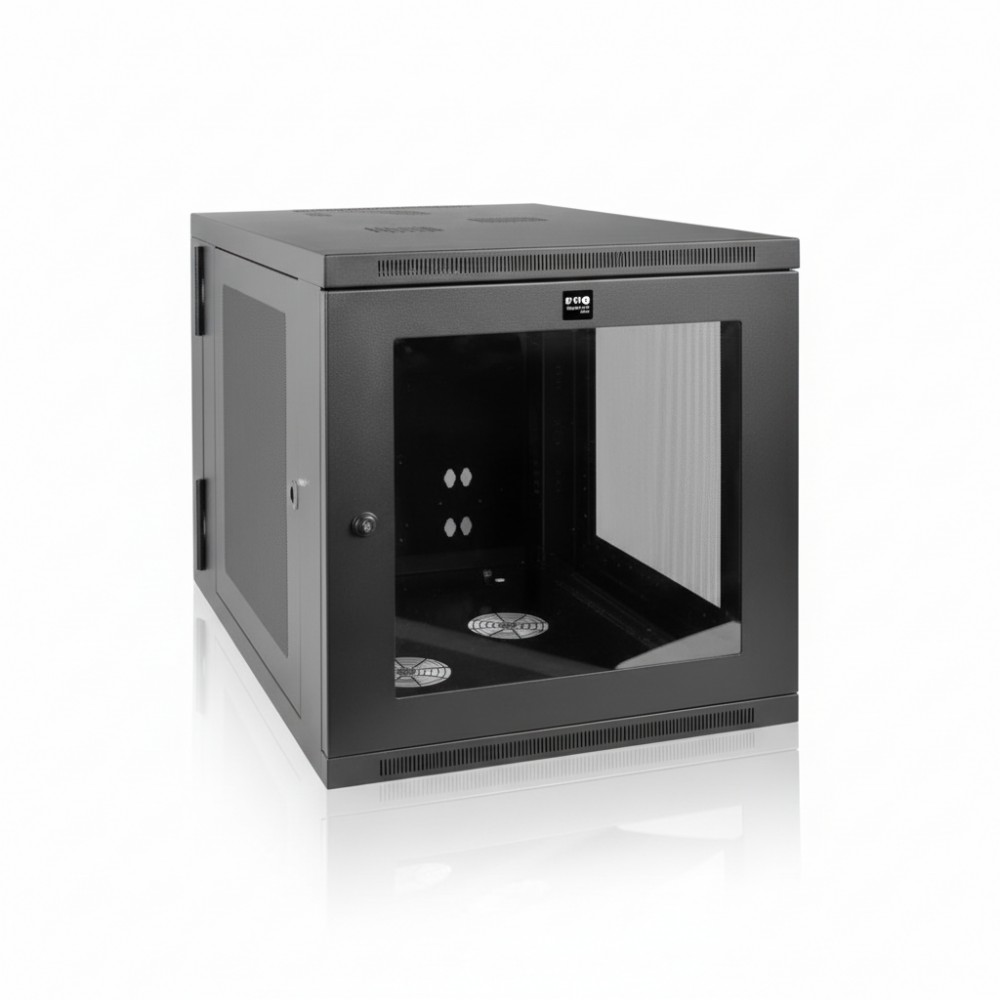

Eaton SRW12US33G - 12U Server-Depth Wall-Mount Rack Enclosure
Overview
The Eaton SRW12US33G is a wall-mount rack enclosure engineered to secure and organize standard 19-inch rackmount equipment in environments where floor space is limited, such as network closets, IDF/MDF rooms, branch sites, classrooms, and retail back-of-house installs. It solves the problem of supporting deeper devices × including 1U servers, UPS units, switches, and storage × on a stud-wall or solid wall surface.
This enclosure supports 12 rack units (12U) of vertical rack space and accommodates equipment up to 32.5 in (825.5 mm) deep, with a static load capacity of 250 lb (113.4 kg) when properly anchored to a structurally capable surface. The fully hinged cabinet swings clear of the wall on robust pivot hardware, which streamlines cabling and maintenance access without removing installed devices.
SRW12US33G is specifically suited for spaces where deeper equipment is required but traditional floor cabinets are impractical. Typical deployment contexts include network edge closets, telecommunications rooms, small datacenter overflow zones, and retail or education IT closets. Its clear acrylic front window helps visual inspection without unlocking the door.
The enclosure integrates with standard EIA-310 compliant rackmount hardware and includes numbered, adjustable vertical mounting rails that support square-hole and 12-24 threaded mounting. Cable access ports at top and bottom allow structured cable routing and management. The unit's doors and side panels are lockable, supporting basic physical security policies.
In real deployments, this type of rack is used to mount deeper networking gear alongside small servers or rackmount UPS systems in edge IT closets where space along the wall is at a premium. The swing-away design reduces strain during cabling and service operations.
This enclosure should not be used as a primary floor cabinet in heavy-load datacenter aisles, for seismic zone installations without appropriate anchoring, or where electronic access control and audit logging are required × it provides mechanical security only.
Key Features
- 12U wall-mount rack for EIA-310 19″ equipment
- Supports devices up to 32.5″ (825 mm) deep
- 250 lb (113 kg) static load capacity (anchored)
- Hinged cabinet swings clear for cabling access
- Lockable clear acrylic front window door
Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | SRW12US33G |
| Product Type | Wall-Mount Rack Enclosure |
| Rack Units | 12U |
| Rack Width Standard | 19 in (EIA-310) |
| Maximum Device Depth | 32.5 in (825 mm) |
| Minimum Device Depth | 3 in (76 mm) |
| Static Load Capacity | 250 lb (113.4 kg) (anchored) |
| Vertical Mounting Rails | 4 adjustable |
| Door Type | Lockable, clear acrylic front |
| Side Panels | Lockable, removable |
| Cable Access | Top/bottom ports with covers |
| Mounting Style | Wall mounting with hinged bracket |
| Material | Steel |
| Finish | Black powder coat |
| Unit Dimensions (H×W×D) | 25.18×23.62×33.50 in (639.6×600×851 mm) |
| Unit Weight | ~94.5 lb (42.9 kg) |
| Protection Rating | IP20 |
| Compliance | EIA-310-E, IEC 60297-3-100, RoHS |
