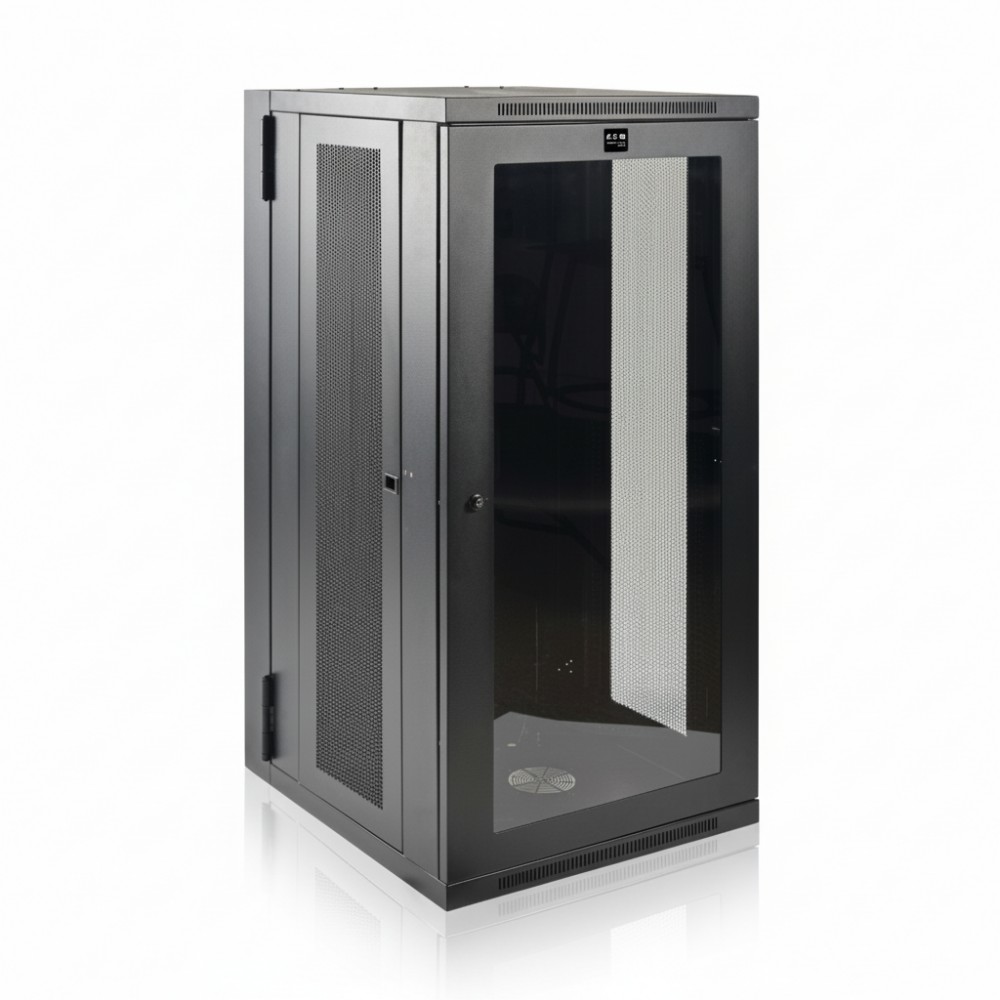

Eaton SRW26USG - 26U Wall-Mount SmartRack Enclosure
Overview
The Eaton SRW26USG is a switch-depth wall-mount rack enclosure engineered to secure and organize 19-inch rack equipment in environments with limited floor space. It is typically deployed by network engineers, IT infrastructure technicians, and facilities staff in wiring closets, classrooms, retail back offices, and small telecom rooms where floor footprint must be minimized without sacrificing rack capacity. Its design solves the challenge of housing standard rack gear off the floor while still providing robust equipment support.
Constructed from heavy-duty steel with a black powder-coat finish and a shatter-resistant clear acrylic front window, the enclosure accommodates up to 26U of 19-inch rack-mount devices up to approximately 20.5 in (520 mm) deep. The hinged design allows the unit to swing away from the wall for rear access to cabling and ports × a practical feature for installation and maintenance without removing the entire enclosure.
Equipment mounting rails are adjustable and accept both square and threaded 12-24 rack hardware, enabling flexible placement of active and passive equipment such as switches, routers, patch panels, and small servers. Cable entry/exit ports at the top and bottom facilitate managed routing of power and network cabling, preserving organized layouts in compact spaces.
This cabinet integrates into standard structured IT environments following EIA-310-E and IEC 60297-3 rack standards, making it compatible with generic 19-inch rack devices and accessories. The clear front window provides visibility of equipment status indicators without unlocking the door, assisting daily monitoring in shared spaces.
A typical use case is mounting network switches, patch panels, and edge appliances in a healthcare IMAC closet or retail telecom room where floor space is constrained. It is not suitable for full-height server racks requiring deep equipment support beyond its rated ~20.5 in or for airborne contaminants without additional environmental filtering.
Key Features
- Supports 26U of EIA-310-standard 19″ rack equipment
- Clear acrylic front window with locking door
- Hinged wall-mount design for rear access
- Adjustable 4-rail mounting with square/threaded holes
- Ventilated panels for passive airflow
Specifications
| Specification | Detail |
|---|
| Brand | Eaton (Tripp Lite) |
| Part Number | SRW26USG |
| Product Type | Wall-Mount Rack Enclosure |
| Rack Units (U) | 26U |
| Rack Width | 19″ standard EIA-310 |
| Maximum Mounting Depth | ~20.5 in (521 mm) |
| Load Capacity (Static) | 250 lb (113 kg) |
| Form Factor | Wall-mount hinged enclosure |
| Front Door Material | Shatter-resistant acrylic |
| Cabinet Material | Steel with black powder coat |
| Dimensions (H×W×D) | ~49.7″ × 23.6″ × 21.6″ (1262 × 600 × 548 mm) |
| Weight | ~125 lb (56.7 kg) |
| Cable Entry Ports | Top & bottom penetrations |
| Rail Hardware | M6 screws, cage nuts, washers included |
| Mounting Rails | 4 adjustable vertical rails |
| Certifications/Compliance | EIA-310-E, IEC 60297-3, UL 60950-1, RoHS |
| Color | Black powder coat |
| Country of Origin | China (typical) |
